SPHINX Project Two Mk2

4. THE PRE-AMP AT A GLANCE

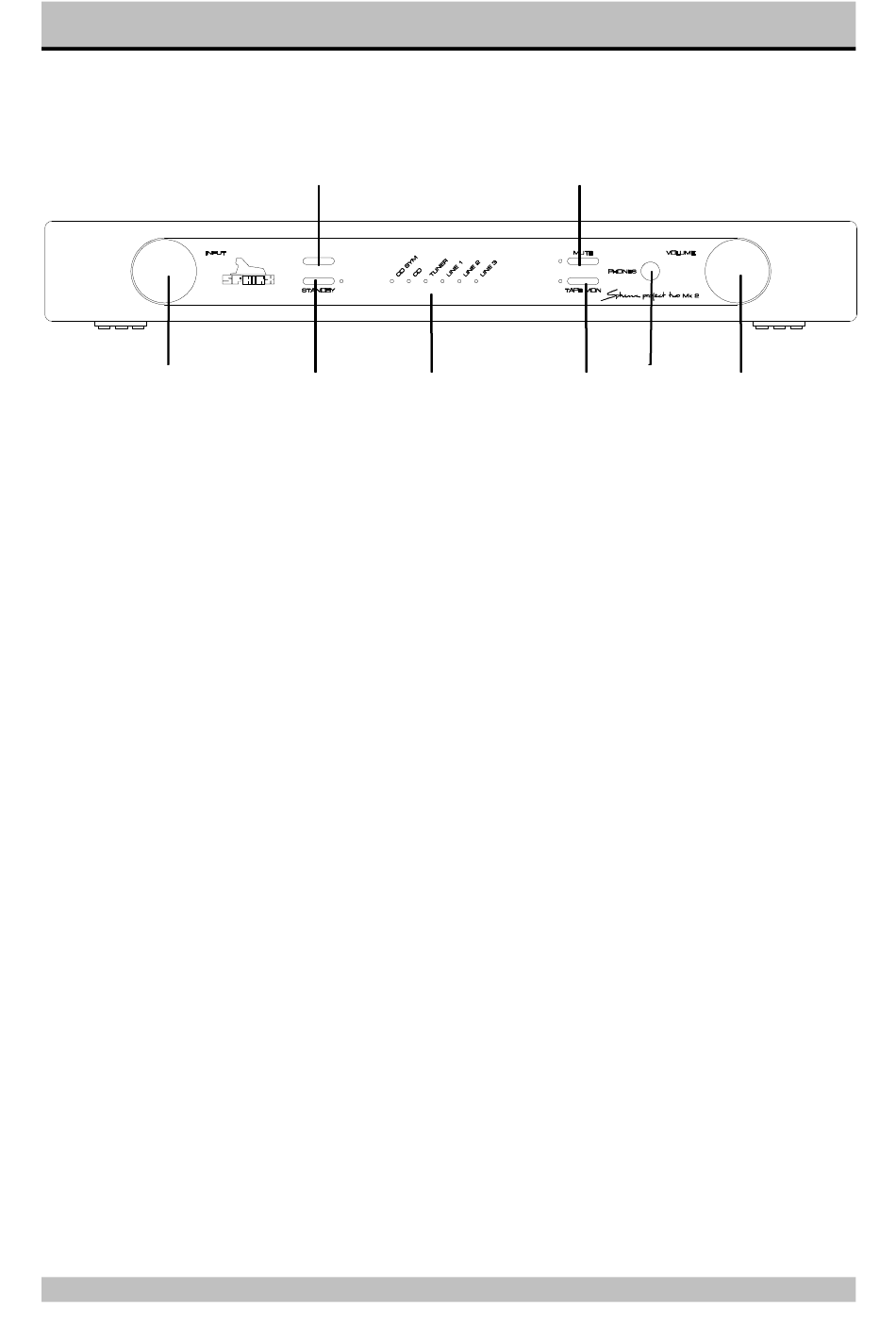

Front panel

1
1
1. INPUT: With this rotary knob you may select
one of the six inputs.
Turn clockwise for an input to the right of the
active one, anti-clockwise for an input to the
left.
2. STANDBY: To switch the component on and
off:
on LED is green
off LED is red
3. Receptor window for the IR signals from the
Remote Control.
4. Input selection LED's: The input selected with
knob (1.) is indicated by one of these LED's:
CD SYM balanced CD input
CD unbalanced CD input
TUNER unbalanced Tuner input
LINE 1 unbalanced line input 1
LINE 2 unbalanced line input 2
LINE 3 unbalanced line input 3.
3
2 4
5.
6.
7.
8.
Service Manual
5
6 7
MUTE: Press this button to temporarily mute
the sound. The red LED will light.
TAPE MON: To select the TAPE IN input. The
red LED will light.
PHONES: To connect dynamic stereo
headphones.
VOLUME: This rotary knob adjusts the volume
level.
8
