Web – Click QoS, DiffServ, then click Add Class to create a new class, or Edit Rules
to change the rules of an existing class.
CLI - This example creates a class map call "rd-class," and sets it to match packets
marked for DSCP service value 3.
Console(config)#class-map rd_class match-any
Console(config-cmap)#match ip dscp 3
Console(config-cmap)#

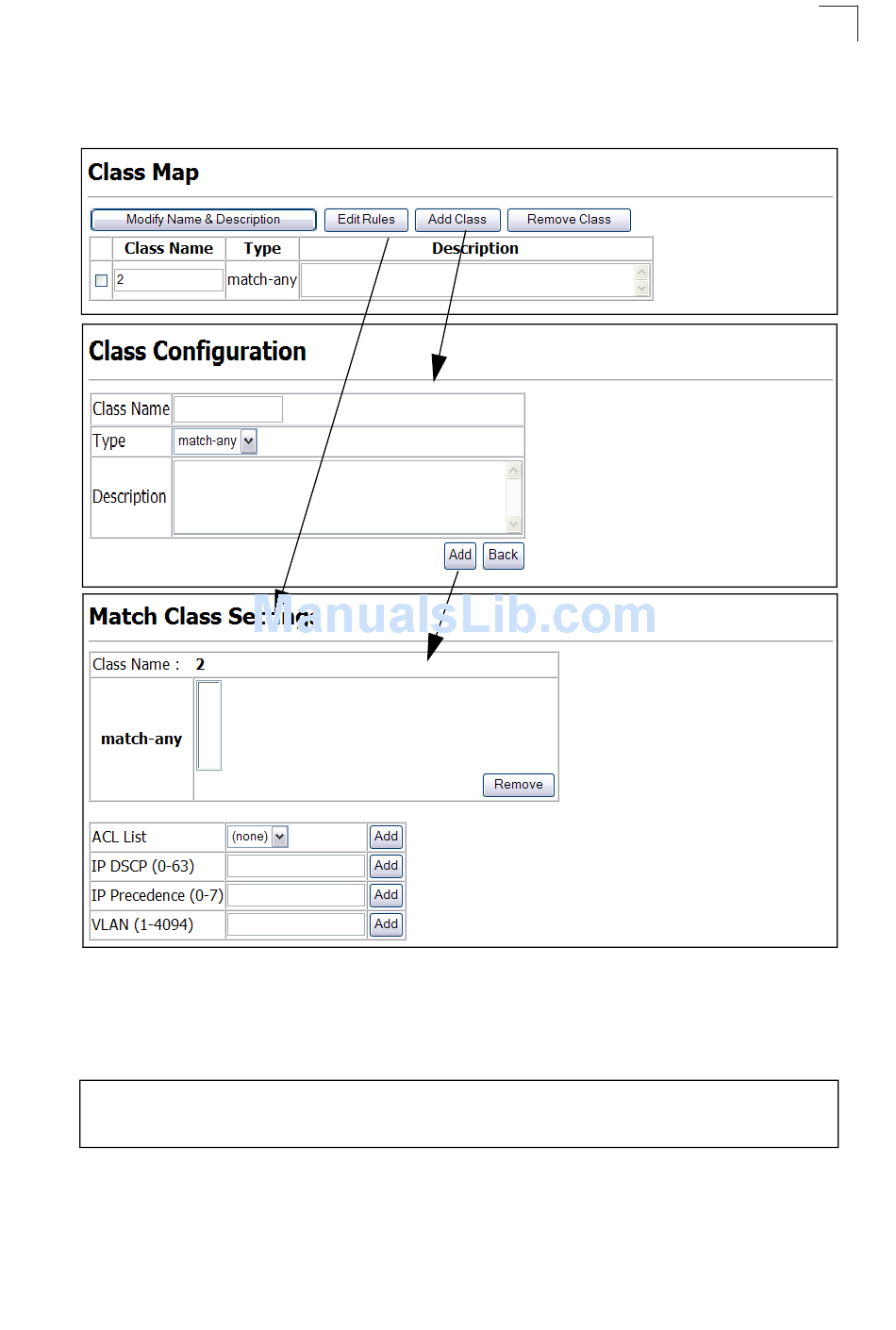

Figure 3-94 Configuring Class Maps
