Configuring the ADSL Barricade's Interfaces with RIP
1. Log into the Configuration Manager, click the [Services] tab,
and then click [RIP] in the task bar. The [Routing Information
Protocol (RIP) Configuration] page appears, as shown in
Figure 31.

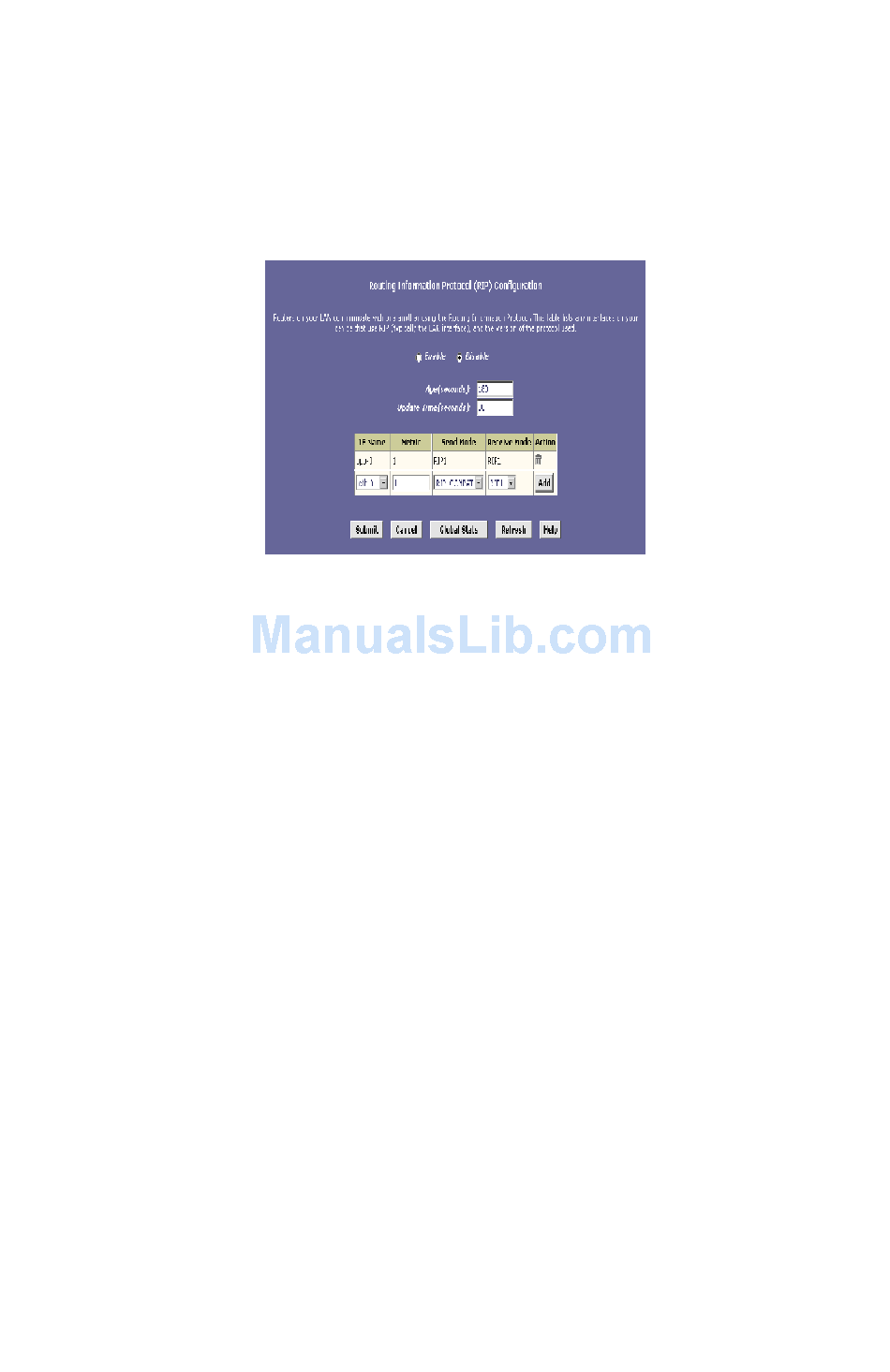

Figure 31. Routing Information Protocol (RIP)
Configuration Page
The page contains radio buttons for [Enable] or [Disable]
the RIP feature and a table listing interfaces on which the
protocol is currently running. The first time you open this
page, the table may be empty.
2. If necessary, change the [Age (seconds):] and [Update
Time (seconds):].
These are global settings for all interfaces that use RIP.
[Age (seconds):] is the amount of time in seconds that the
device's RIP table will retain each route that it learns from
adjacent computers.
[Update Time (seconds):] specifies how frequently the ADSL
Barricade will send out its routing table to its neighbors.
