Configuring IP Filters and Blocked Protocols
If the packet matches the criteria established in a rule, the packet
can either be accepted (forwarded towards its destination), or
denied (discarded), depending on the action specified in the rule.

Viewing Your IP Filter Configuration

To view your current IP filter configuration, log into [Configuration
Manager], click the [Services] tab, and then click [IP Filter] in the
task bar. The [IP Filter Configuration] page appears, as shown in
Figure 47.
The [IP Filter Configuration] page displays global settings
that you can modify, and the IP filter rule table, which shows
all currently established rules. See Creating IP Filter Rules on
page 138 for a description of the items that make up a rule.
When rules are defined, you can use the icons that display in the
[Action(s)] column to edit (
on ( ) the corresponding rule.
136

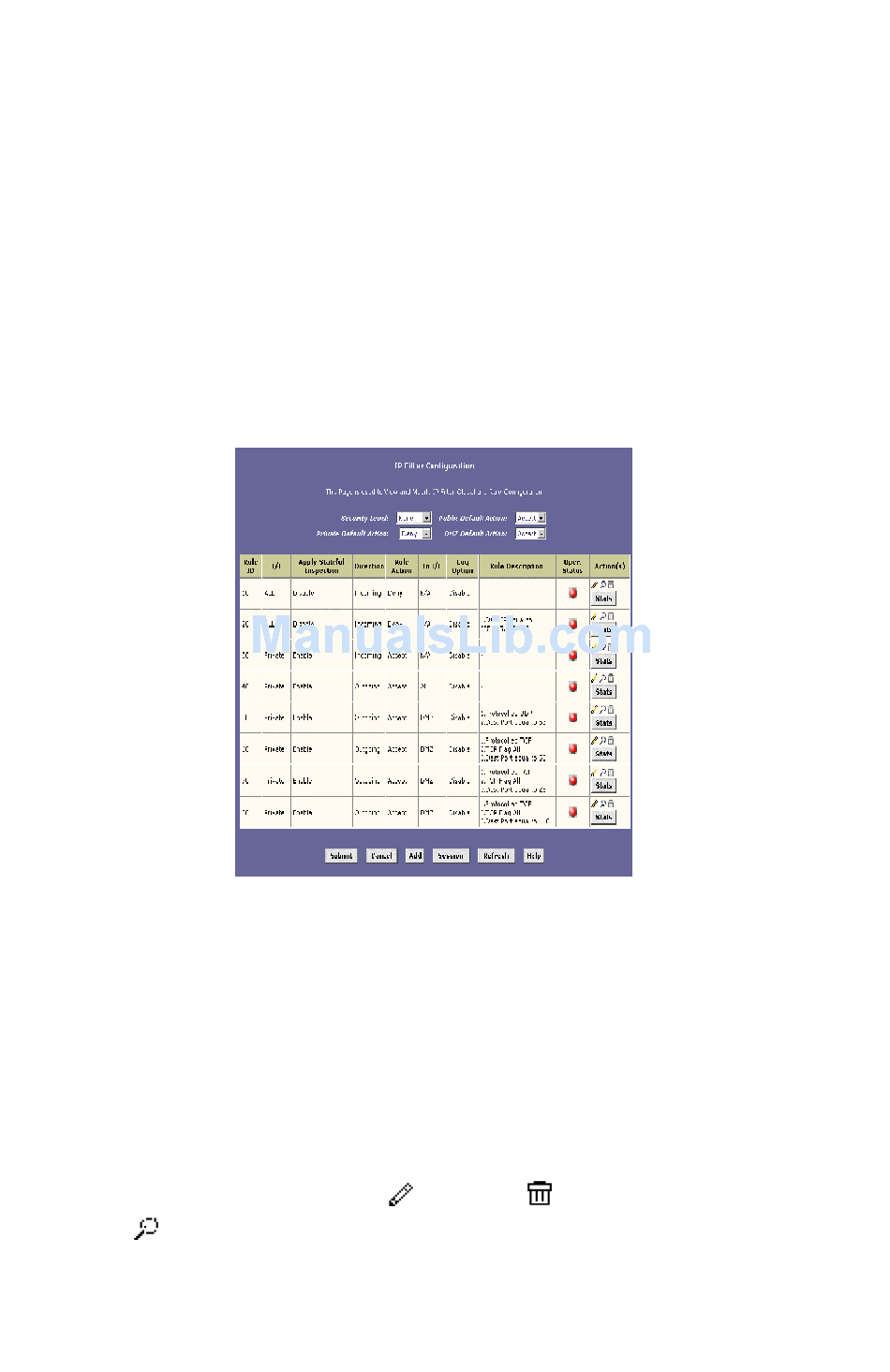

Figure 47. IP Filter Configuration Page
), delete ( ), and view details
