Administrative Tasks

Upgrading the Software

Your ISP may from time to time provide you with an upgrade
to the software running on the ADSL Barricade. All system
software is contained in a single file, called an image. The image
is composed of several distinct parts, each of which implements
a different set of functions.
Configuration Manager provides an easy way to upload a new
software image, or a specific part of the image, to the memory
on the ADSL Barricade. To upgrade the image, follow this
procedure:
1. Log into the Configuration Manager, click the [Admin] tab.
Then click [Image Upgrade] in the task bar. The [Image
Upgrade] page is shown in Figure 59.
2. In the [Upgrade File:] text box, type the path and file name of
the file as provided by your ISP. You can click [Browse...]
to search for it on your hard drive.
The name of the upgrade file must be one of the following:
- TEImage.bin
- TEDsl.gsz
160

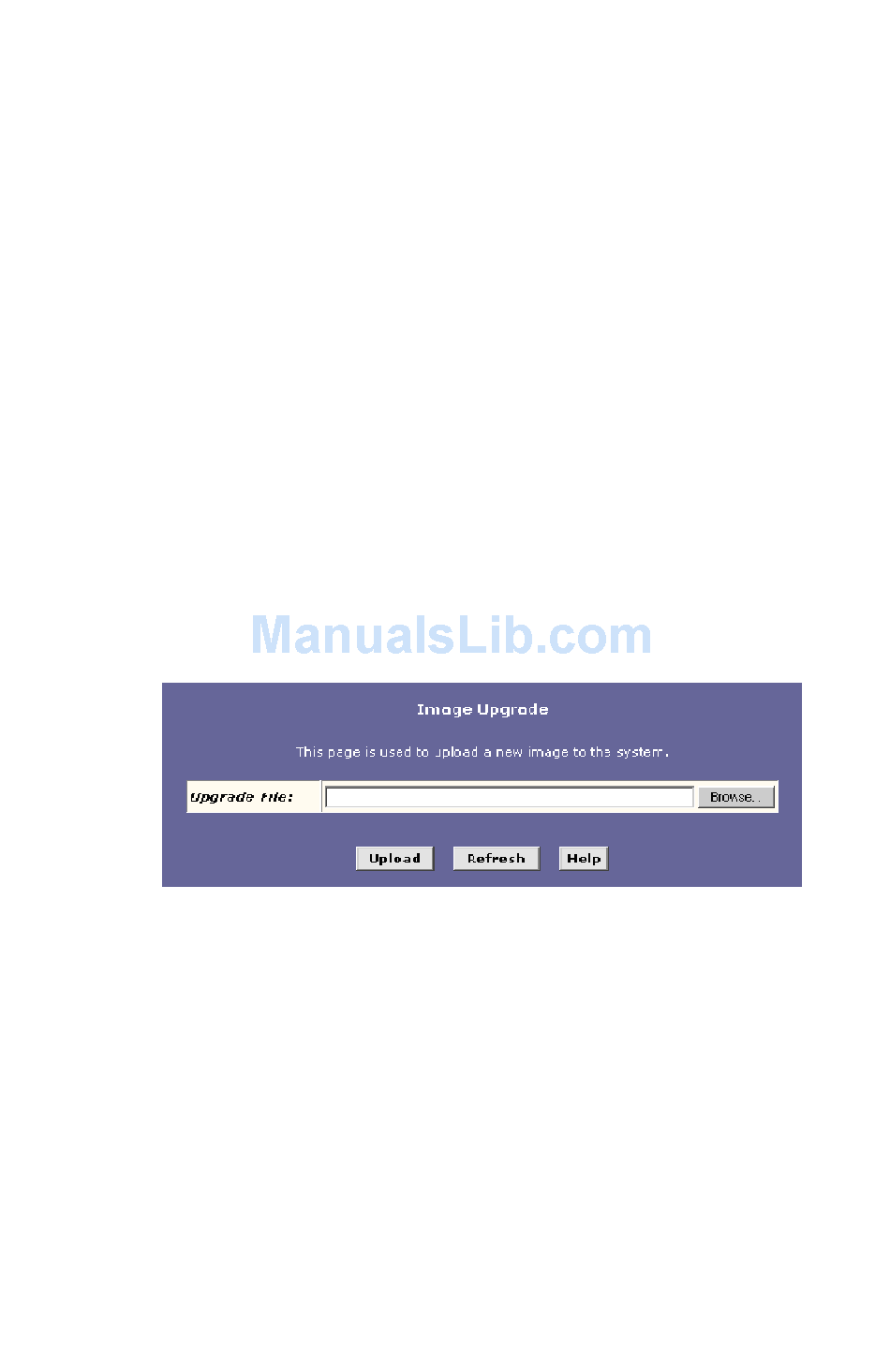

Figure 59. Image Upgrade Page
