Adding Ip Routes - SMC Networks ADSL Barricade SMC7204BRA User Manual

Configuring IP Routes

Adding IP Routes

Follow these instructions to add an IP route to the routing table.
1. From the [IP Route Table] page, click [Add]. The [IP Route -
Add] page appears, as shown in Figure 30.
2. Specify the Destination, Netmask, and Gateway or NextHop
for this route. For a description of these fields, refer to the
table on page 89. To create a route that defines the default
gateway for your LAN, enter 0.0.0.0 in both the [Destination:]
and [Netmask:] fields. Enter your ISP's IP address in the
[Gateway/NextHop:] field.
Note:
90

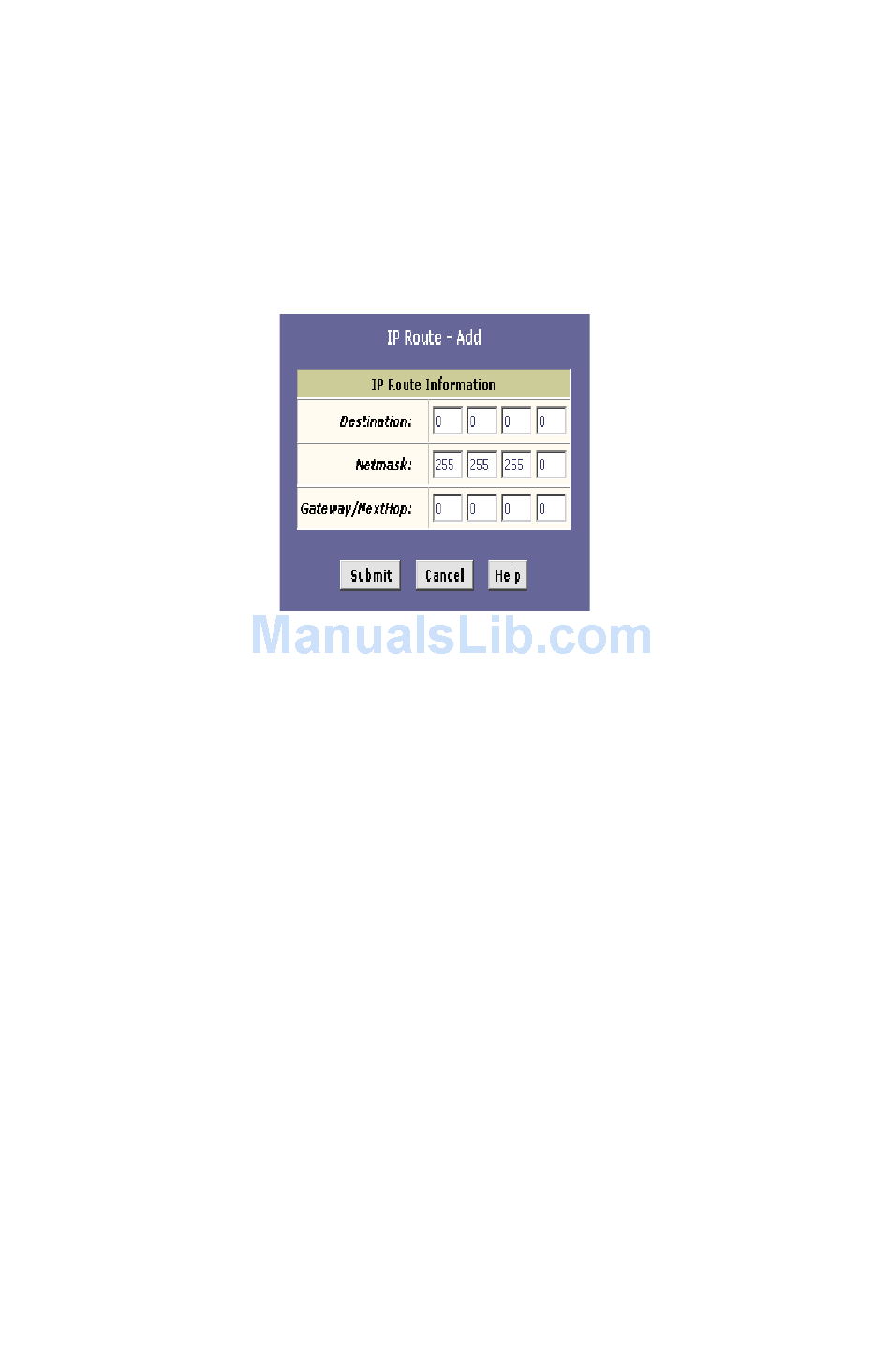

Figure 30. IP Route-Add Page
You cannot specify the interface name, route type
or route origin. These parameters are used only
for routes that are identified automatically as the
device communicates with other routing devices.
For routes you created, the routing table displays
system default values in these fields.
