Quick Start
Wall Jack

Step 1. Connect the ADSL cable

Connect one end of the provided phone cable (RJ-11) to the port
labeled ADSL on the Rear Panel of the device. Connect the other
end to your wall phone jack.
You can attach a telephone line to the device. This is helpful
when the ADSL line uses the only convenient wall phone jack.
If desired, connect the telephone cable to the port labeled Phone.
Warning:
Note:
8
To a hub: use cross-
over cable to uplink
port or straight cable
to standard port
Hub/switch (for local
area network)
Networked Computers

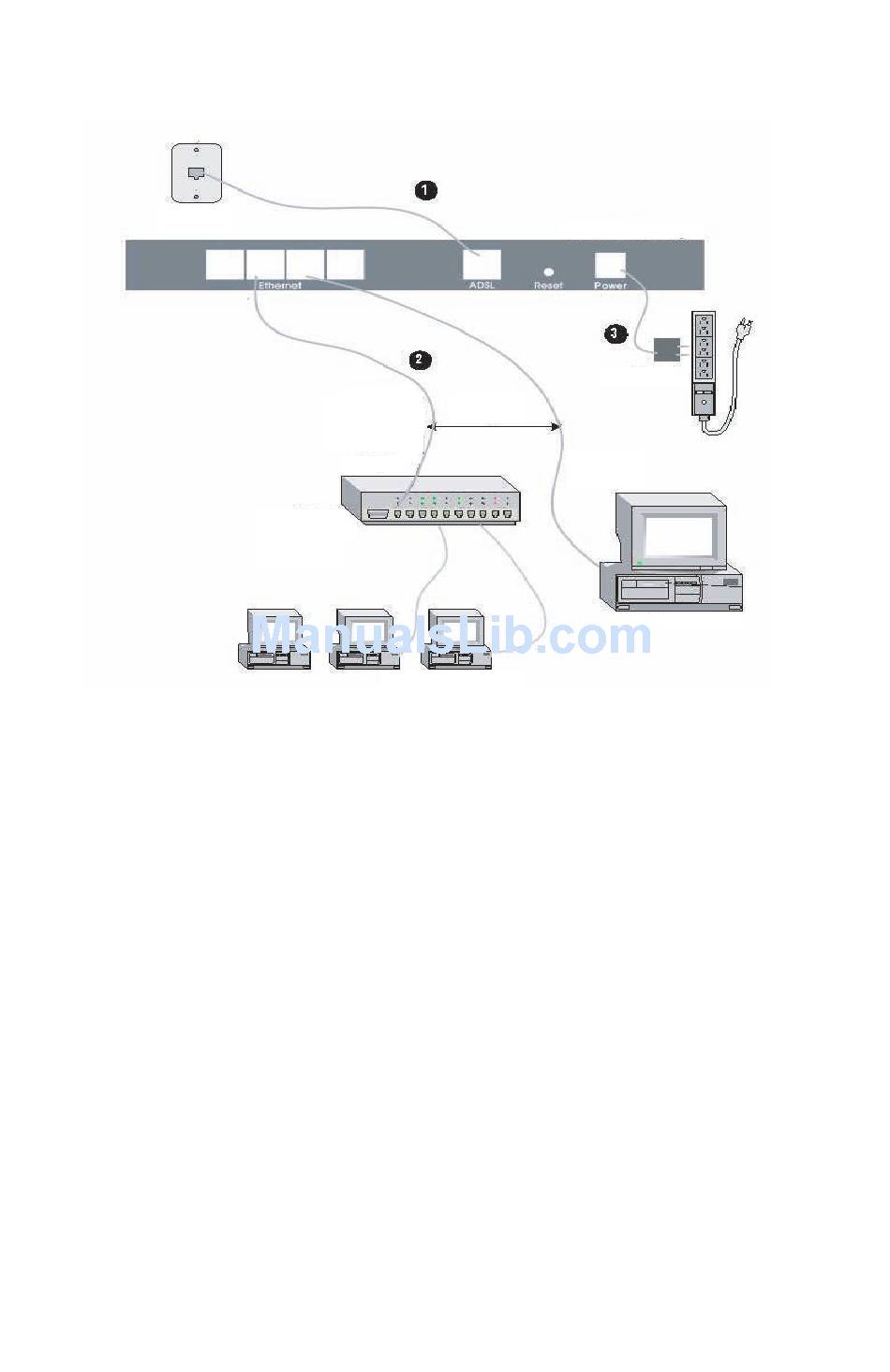

Figure 1. Overview of Hardware Connections
Although you use the same type of cable, the ADSL
and Phone ports are not interchangeable. Do not
route the ADSL connection through the Phone port.
ADSL splitters/microfilters are included with some
models.
ADSL Barricade
AC adapter
or
To a PC: use a
cross-over cable
Stand-alone computer
