Installing FRUs

You can install a Mini/MIM interface module, a lightning protector for a network port, and AC power
supply lightning protector on a UTM device. These components do not come with the UTM device.
Prepare them yourself.

Installing a Mini interface module

1. Loosen the screws on the filler panel with a Phillips screwdriver to remove the filler panel.
Put the removed filler panel and screws in an antistatic bag for future use.
2. Push the Mini interface module with its components facing upwards along the guide rails into the
slot.

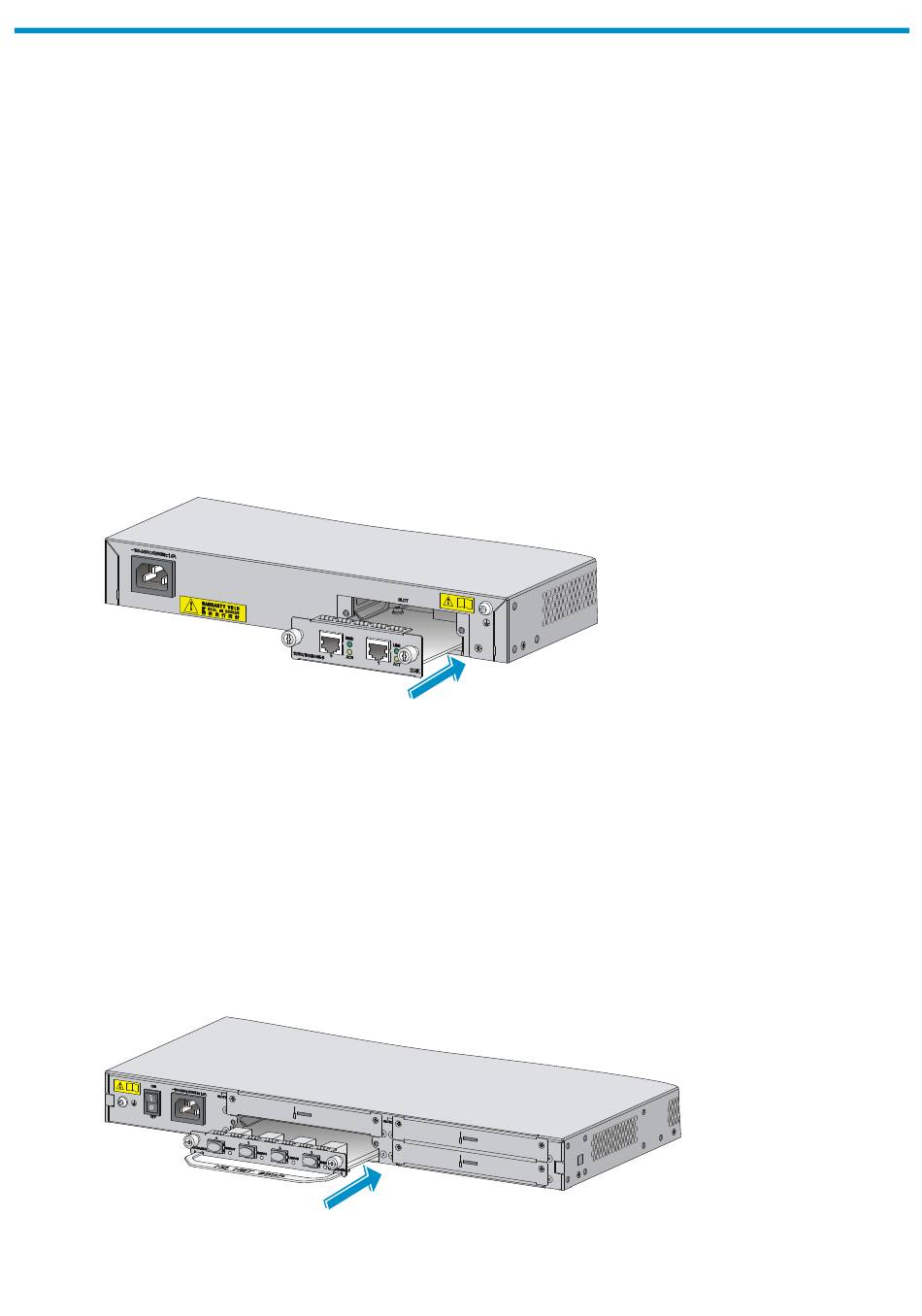

Figure 24 Pushing the interface module into the slot
3. Fasten the captive screws on the interface module with a Phillips screwdriver.

Installing a MIM interface module

Loosen the captive screws on the filler panel with a Phillips screwdriver to remove the filler panel.
1.
Put the removed filler panel and screws in an antistatic bag for future use.
2. Push the MIM interface module with its components facing upwards along the guide rails into the
slot.
Figure 25 Pushing the MIM interface module into the slot
3. Fasten the captive screws on the interface module with a Phillips screwdriver.
