Page 1: Table Of Contents
Installation accessories ··········································································· 4 Mounting positions ·················································································· 5 Installing an S5800-54S switch in a 19-inch rack ······························ 7 Installing an S5800-60C-PWR switch in a 19-inch rack ·················· 10 Installing the other S5800 switch models in a 19-inch rack ············ 12 ... -

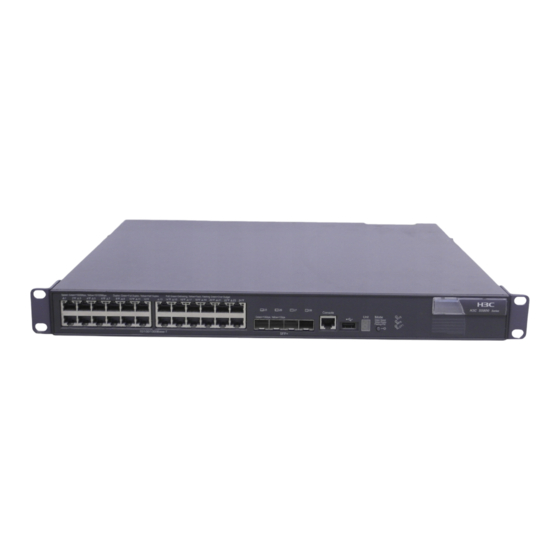

Page 2: Overview
The H3C S5800 Switch Series includes the following models: S5800-56C • S5800-56C-PWR • S5800-32C • S5800-32C-PWR • S5800-32F • S5800-60C-PWR • S5800-54S • NOTE: The H3C S5800 Switch Series models and installation procedures might be updated without prior notice. For the latest quick start guide, go to http://www.h3c.com.hk. -
Page 3: Installation Preparations
To ensure correct operation and long service life of your switch, install it in an environment that meets the temperature, humidity, and electromagnetic shield (EMS) requirements. For more information, see H3C S5800 Switch Series Installation Guide. Installation tools The installation tools are not provided with the switch. -
Page 4: Installing The Switch
Installing the switch Installation flow Figure 2 Installation flow Start Install the switch to a specified position Connect the grounding cable Hot swappable fan trays are used? Fan trays have been installed? Select and install fan trays Hot swappable power modules are used? Select and install power modules... -
Page 5: Installing The Switch In A Rack
Installing the switch in a rack Attaching an ESD wrist strap Before installation, wear an ESD strap, and make sure one end of the wrist strap has a good skin contact and the other end is attached to a post of the correctly-grounded rack, as shown in Figure Figure 3 Attaching an ESD wrist strap... -
Page 6: Mounting Positions
(1) 1 U mounting brackets (2) 2 U mounting brackets and cable management brackets In addition to a pair of 1 U mounting brackets, the S5800-54S switch also comes with a pair of chassis rails and a pair of slide rails. - Page 7 Figure 6 Mounting positions (1) Front mounting position (2) Mid-mounting position (3) Rear mounting position The S5800-54S switch provides two mounting positions: one front mounting position (near the network ports) and one rear mounting position (near the power modules), as shown in Figure...
-
Page 8: Installing An S5800-54S Switch In A 19-Inch Rack
Installing an S5800-54S switch in a 19-inch rack Table 1 Installing an S5800-54S switch in a 19-inch rack Installation procedure Remarks Installation diagram • For mounting near the power modules, see Figure Attach the mounting Required brackets to the switch. - Page 9 Figure 8 Installing the mounting brackets near the power modules and installing the chassis rails Figure 9 Installing the mounting brackets near the ports and installing the chassis rails Figure 10 Installing cage nuts in a rack post...
- Page 10 Figure 11 Installing slide rails to the rack Figure 12 Connecting the grounding cable to the primary grounding point (1) Grounding sign (2) Grounding cable...
-
Page 11: Installing An S5800-60C-Pwr Switch In A 19-Inch Rack
Figure 13 Installing the switch in the rack (mounting brackets near the power modules) Installing an S5800-60C-PWR switch in a 19-inch rack Table 2 Installing an S5800-60C-PWR switch in a 19-inch rack Installation procedure Remarks Installation diagram Separate the mounting brackets from cable management Optional Figure... - Page 12 NOTE: Before you install the mounting brackets in the mid-mounting position, separate the mounting brackets from the cable management brackets. Figure 14 Attaching mounting brackets to the S5800-60C-PWR switch (1) Separate the mounting bracket from the cable management bracket (2) Install mounting brackets near the ports (3) Install mounting brackets in the mid-mounting position (4) Install mounting brackets near the power modules...
-
Page 13: Installing The Other S5800 Switch Models In A 19-Inch Rack
Figure 15 Installing the switch in a rack Installing the other S5800 switch models in a 19-inch rack Table 3 Installing other S5800 switch models in a 19-inch rack Installation procedure Remarks Installation diagram Attach the mounting brackets to the Required Figure switch. -
Page 14: Mounting The Switch On A Workbench
• If a standard 19-inch rack is not available, you can place you switch on a workbench. The S5800-54S switch cannot be mounted on a workbench. To mount the switch on a workbench: Make sure the workbench is clean and correctly grounded. -
Page 15: Connecting The Grounding Cable
Correctly connecting the switch grounding cable is crucial to lightning protection and EMS of a switch. The S5800 switch models except the S5800-54S switch have one grounding point at their rear panels. The S5800-54S switch has three grounding points, as shown in Figure 19. - Page 16 Figure 20 Connect the grounding cable to the switch To connect the other end of the grounding cable to a grounding strip: Cut the grounding cable to a length according to the distance between the switch and the grounding strip. Peel 5 mm (0.20 in) of insulation sheath from the end, and then insert the naked metal part through the black insulation covering into the end of the ring terminal.
-
Page 17: Installing Fan Trays
You must install two fan trays of the same model on the same switch. Table 4 lists the fan trays available for the switch. For more information about the fan trays, see H3C LSW1FAN & LSW1BFAN Installation Manual and H3C LSWM1FANSC & LSWM1FANSCB Installation Guide. Table 4 Installing fan trays... - Page 18 Figure 22 Installing an LSW1BFAN fan tray Figure 23 Installing an LSW1FAN fan tray Figure 24 Installing an LSWM1FANSC fan tray...
-
Page 19: Installing Power Modules
For more information about the power modules, see H3C PSR150-A & PSR150-D Series Power Modules User Manual, H3C PSR300- 1 2A & PSR300- 1 2D Series Power Modules User Manual, H3C LSVM1AC650 & LSVM1DC650 Power Modules User Manual, H3C LSVM1AC300 &... - Page 20 PSR300-12D1, or PSR300-12D2 power module on an S5800-60C-PWR switch, make sure the filler module has been installed. CAUTION: Do not install a 650 W power module (LSVM1AC650 or LSVM1DC650) and a 300 W power module (LSVM1AC300 or LSVM1DC300) on the same S5800-54S switch.
- Page 21 Figure 25 Installing a PSR150-A power module Figure 26 Installing an LSVM1AC650 power module Figure 27 Installing a PSR300-12A power module...
- Page 22 If only one power module is installed, install the filler panel into another power module slot. Figure 30 uses an S5800-54S switch as an example. Figure 30 Installing the filler panel on an S5800-54S switch Before you remove a power module, remove the power cord from the power module.
-
Page 23: Connecting The Power Cord
To remove an LSVM1AC650 power module: Hold the handle on the power module with one hand, pivot the latch on the power module to the right with your thumb, and pull the power module part way out of the slot. Supporting the power module bottom with one hand, slowly pull the power module out with the other hand. - Page 24 Pull the bail latch upwards, as shown in Figure 33. Then connect one end of the AC power cord to the AC receptacle on the switch. Pull the bail latch down to secure the plug to the AC receptacle. Figure 32 Installing a bail latch Figure 33 Pulling the bail latch upwards Figure 34 Connecting the AC power cord No bail latch is provided with the LSVM1AC650 and LSVM1AC300 power...
-
Page 25: Connecting The Dc Power Cord
Figure 35 Connecting an AC power cord for the LSVM1AC650/ LSVM1AC300 power module (1) Cable tie (2) AC power cord (3) Power module handle Connecting the DC power cord Connecting the DC power cord to a built-in power module The DC power cords available for built-in power modules are classified as follows: –54 VDC RPS power cord, which is connected as shown in Figure... - Page 26 PSR300- 1 2D1 power module as an example. For the DC power cord connection procedures for a PSR750-D power module, see H3C S5800 Switch Series Installation Guide. Figure 38 Connecting a DC power cord to a PSR300-12D1 power module...
- Page 27 Figure 39 Connecting a DC power cord to an LSVM1DC650/LSVM1DC300 power module The DC power cord connector for an LSVM1DC650/LSVM1AC300 power module has tabs. To remove the power cord, squeeze the tabs on the power cord connector with your thumb and forefinger and then pull the connector out, as shown in Figure Figure 40 Removing the DC power cord from an LSVM1DC650/...
-
Page 28: Installing An Interface Card
Some S5800 switch models provide interface card slots. For the interface cards available for the switch, see H3C S5800 Switch Series Installation Guide. You can install interface cards as needed. For more information about the interface cards, see H3C S5820X &... -
Page 29: Installing An Oap Card
The S5800-60C-PWR switch provides an OAP card slot and comes with a filler panel in the OAP card slot. You can install an OAP card as needed. For the OAP cards available for the S5800-60C-PWR switch, see H3C S5800 Switch Series Installation Guide. For more information about OAP cards, see H3C OAP Cards User Manual. -
Page 30: Installing A Poe Module
PoE modules. You can install an LSW148POEM PoE module on the S5800-60C-PWR switch to supply power for powered devices (PDs). For more information about the LSW148POEM PoE module, see H3C LSW148POEM Module User Manual. Figure 45 Installing a PoE module...
