To mount the UTM device on a workbench:
1. Verify that the workbench is sturdy and well grounded.
2. Place the UTM device with bottom up, and clean the round holes in the chassis bottom with dry
cloth.
3. Attach the rubber feet to the four round holes in the chassis bottom.
4. Place the UTM device with upside up on the workbench.

Installing the UTM device in a 19-inch rack

The installation procedures for the U200 series UTM devices are similar. This section uses a U200-A as
an example.
To install the UTM device in the rack:
1. As shown in
mounting bracket.

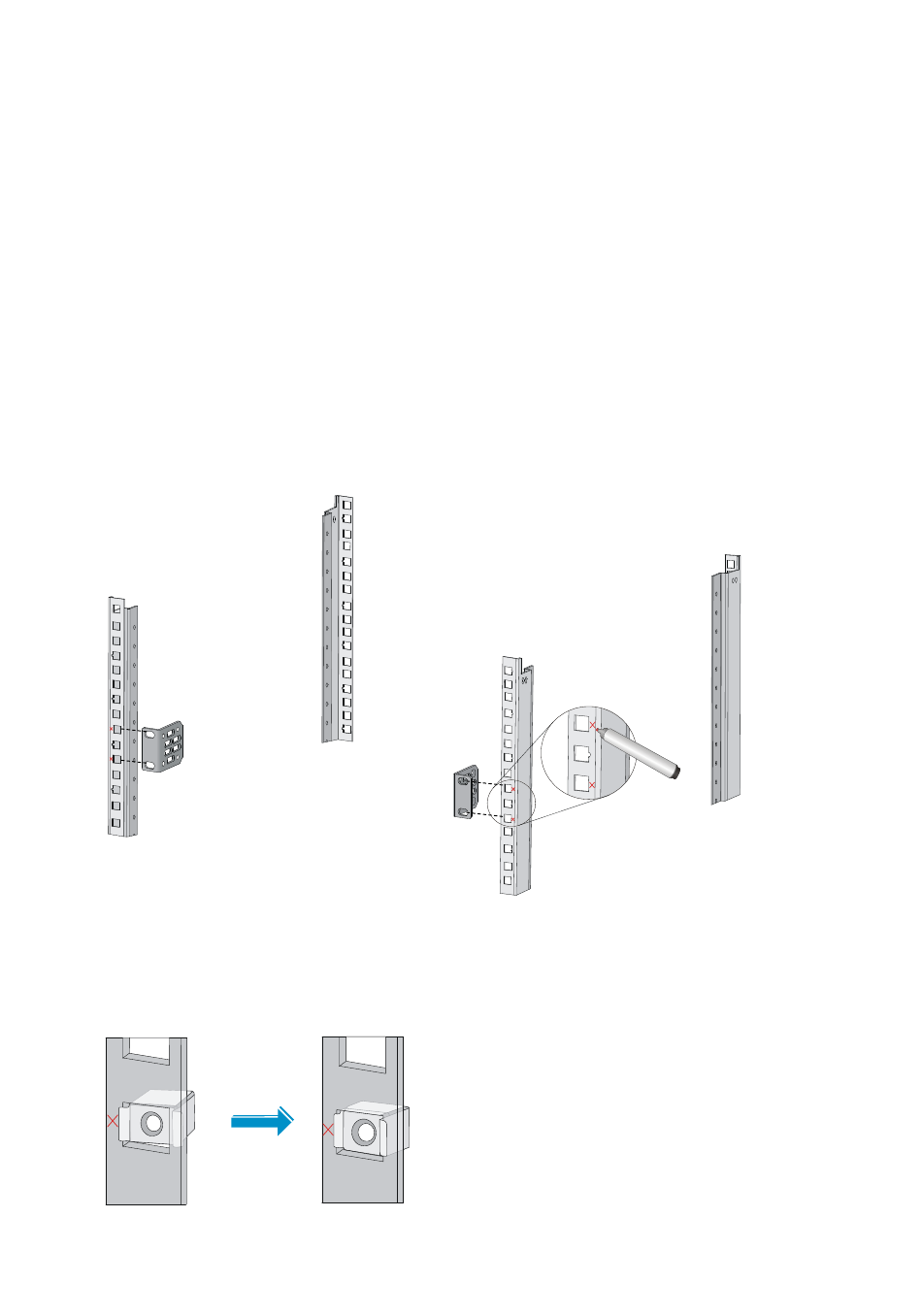

Figure 14 Marking the positions of the cage nuts
2. As shown in
of the cage nut to push the cage nut fully into the hole.
Figure 15 Installing cage nuts
Figure 14, mark the positions of the cage nuts on the front rack posts by using a front
Figure 15, insert one edge of a cage nut into the hole, and compress the other edge
