Nsq1Gt2Ua0; Nsq1Gp4U0 - H3C SecPath U200 Series Installation Manual

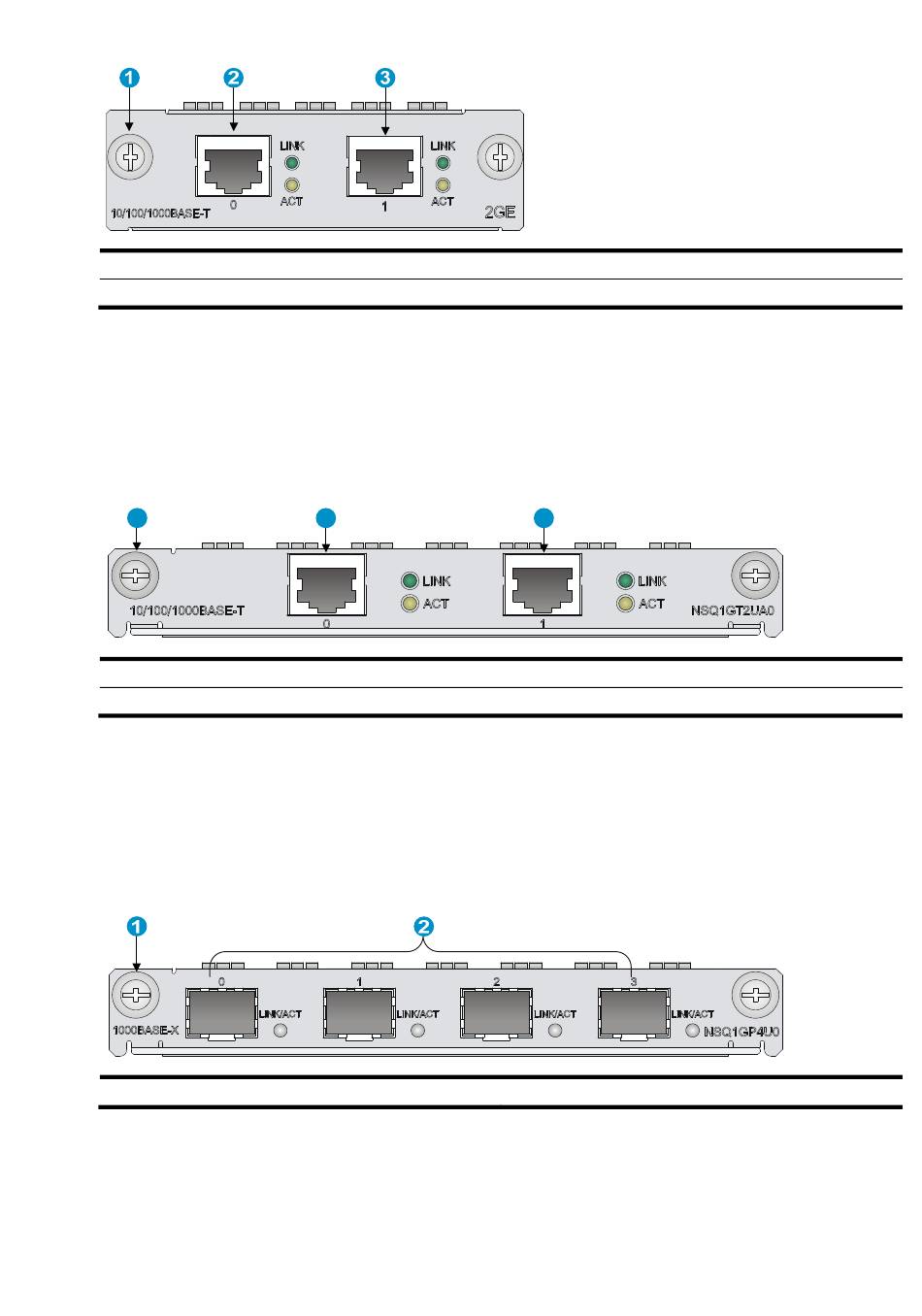

Figure 7 2GE interface module panel view
(1) Captive screw
(3) Copper Ethernet port (GE1)

NSQ1GT2UA0

The NSQ1GT2UA0 interface module provides two 10/100/1000BASE-T ports (RJ-45 connectors),
which can be set to operate as Layer 3 interfaces or Layer 2 interfaces.
Figure 8 NSQ1GT2UA0 panel view
1
(1) Captive screw
(3) Copper Ethernet port (GE1)

NSQ1GP4U0

The NSQ1GP4U0 interface module provides four 1000BASE-X SFP ports, which can be set to operate
as Layer 3 interfaces or Layer 2 interfaces.
Figure 9 NSQ1GP4U0 panel view
(1) Captive screw
2
4
(2) Copper Ethernet port (GE0)
3
(2) Copper Ethernet port (GE0)
(2) Fiber Ethernet SFP ports (SFP0 to SFP3)
