Brother DCP-J4110DW Service Manual page 248

Inkjet printers
Hide thumbs Also See for DCP-J4110DW:
Table of Contents

Advertisement

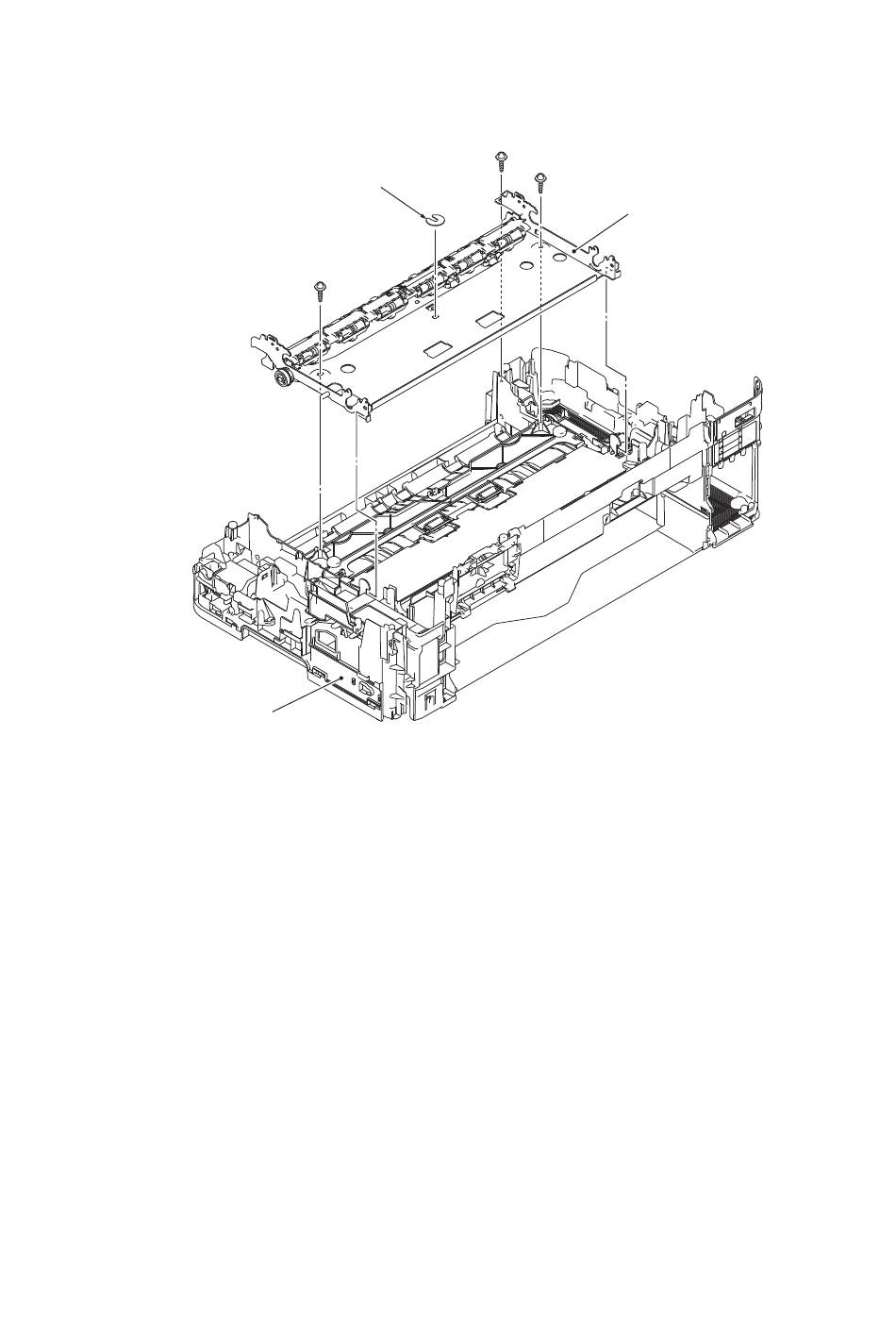

(2) Remove the three screws (TAPTITE CUP B M3x10).
(3) Remove the frame base stopper ring, lift up the rear end of the frame base, and take it off
the lower cover.
TAPTITE CUP B M3x10
Frame base stopper ring
Frame base
(Rear)
(Front)
Lower cover
(3_110_E)
3-121
Confidential
