Connecting video sources

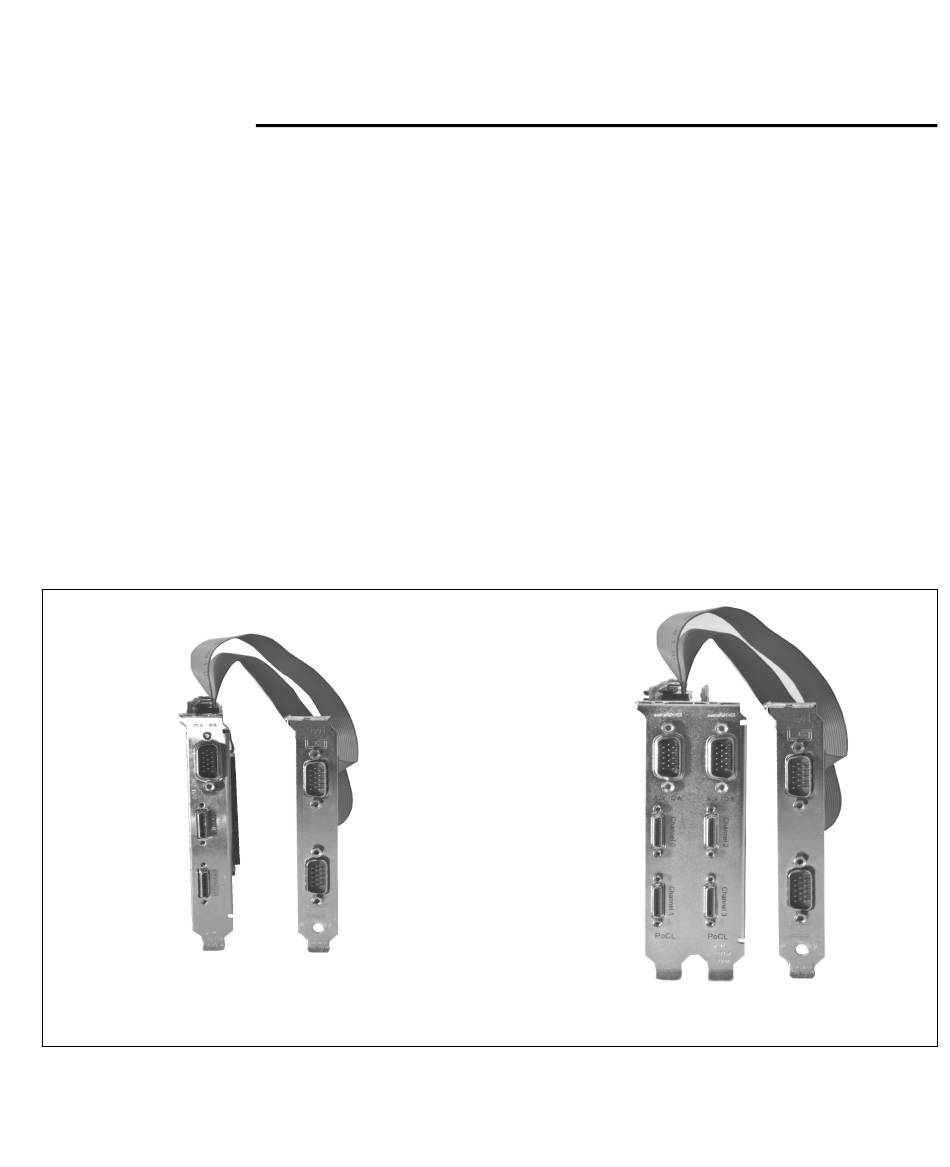

The Matrox Radient eCL board has the following connectors on its bracket(s):
• Two or four Camera Link-compliant video input connectors. Used to receive
video input, timing, and synchronization signals, from the video source. These
are also used to transmit/receive communication signals between the video source
and the frame grabber.
• External auxiliary I/O connector A or external auxiliary I/O connectors A and
B (DBHD-15). Each used to transmit/receive auxiliary signals.
To access the signals of the internal auxiliary I/O connectors, you might have
installed the cable adapter bracket. It has the following connectors:
• External auxiliary I/O connector C and D (panel mount DBHD-15). Each used
to transmit/receive the auxiliary signals.
Auxiliary I/O
connector A
Camera Link
video input
connector 0
Camera Link
video input
connector 1
Matrox Radient
eCL-DB or eCL-SF
Auxiliary I/O
connector C
Auxiliary I/O
connector D
cable
adapter
bracket
Connecting video sources
Auxiliary I/O
connectors
A and B
Camera Link
video input
connectors 0 and 2
Camera Link
video input
connectors 1 and 3
Matrox Radient
eCL-QB or eCL-DF
25
Auxiliary I/O
connector C
Auxiliary I/O
connector D
cable
adapter
bracket
