Connecting video sources

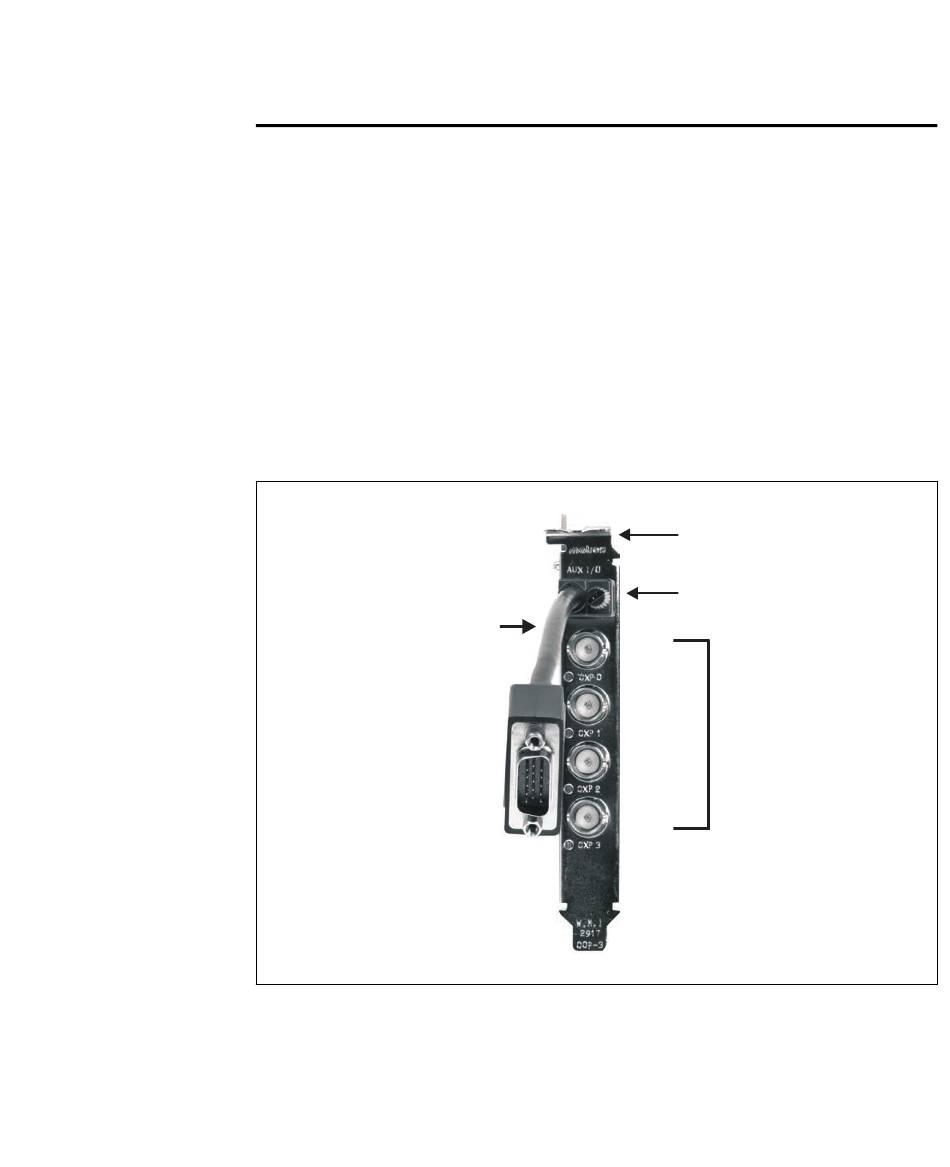

The Matrox Radient eV-CXP board has the following connectors on its bracket:
• Four CoaXPress video input connectors (BNC). Used to receive video streams
from the video sources. These connectors are also used to transmit and receive
CoaXPress trigger and GPIO signals, as well as control and acknowledgement
messages.
• Mini DisplayPort (MiniDP) connector. Used to connect the
MiniDP-to-DBHD-15 adapter cable. The DBHD-15 connector on the adapter
cable is called external auxiliary I/O connector 0. This connector is used to
transmit and receive auxiliary signals.
MiniDP-to-DBHD-15
adapter cable
External
auxiliary I/O
connector 0
Connecting video sources
Internal auxiliary
I/O connectors
MiniDP
connector
CXP 0
CXP 1
CoaXPress
video input
connectors
CXP 2
CXP 3
