74 Appendix B: Technical information
Matrox Radient
eCL-DB and eCL-QB
Camera Link video input connectors

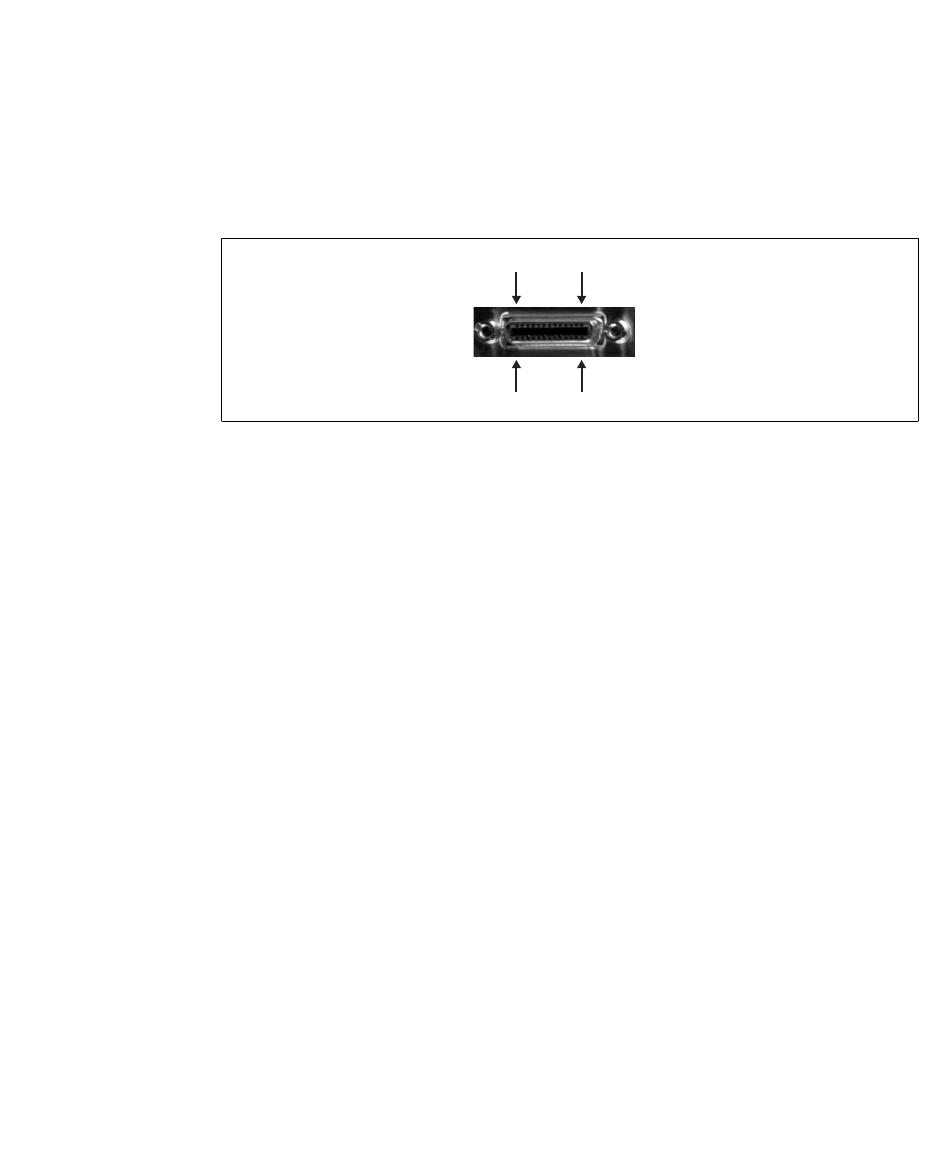

The Camera Link video input connectors are 26-pin high-density female mini
Camera Link connectors. They are used to receive video input, timing, and
synchronization signals and transmit/receive communication signals between the
video source and the frame grabber.
The number of Camera Link video input connectors and their pinout depends
on the version of Matrox Radient eCL and the configuration. The pinout of these
connectors follows the Camera Link standard.
On Matrox Radient eCL-DB, there are two Camera Link connectors; whereas on
Matrox Radient eCL-QB, there are four Camera Link connectors. Each Camera
Link connector on Matrox Radient eCL-DB and eCL-QB supports one video
source in Base configuration, and has the same pinout; this pinout is listed in the
following table.
13
1
26
14
