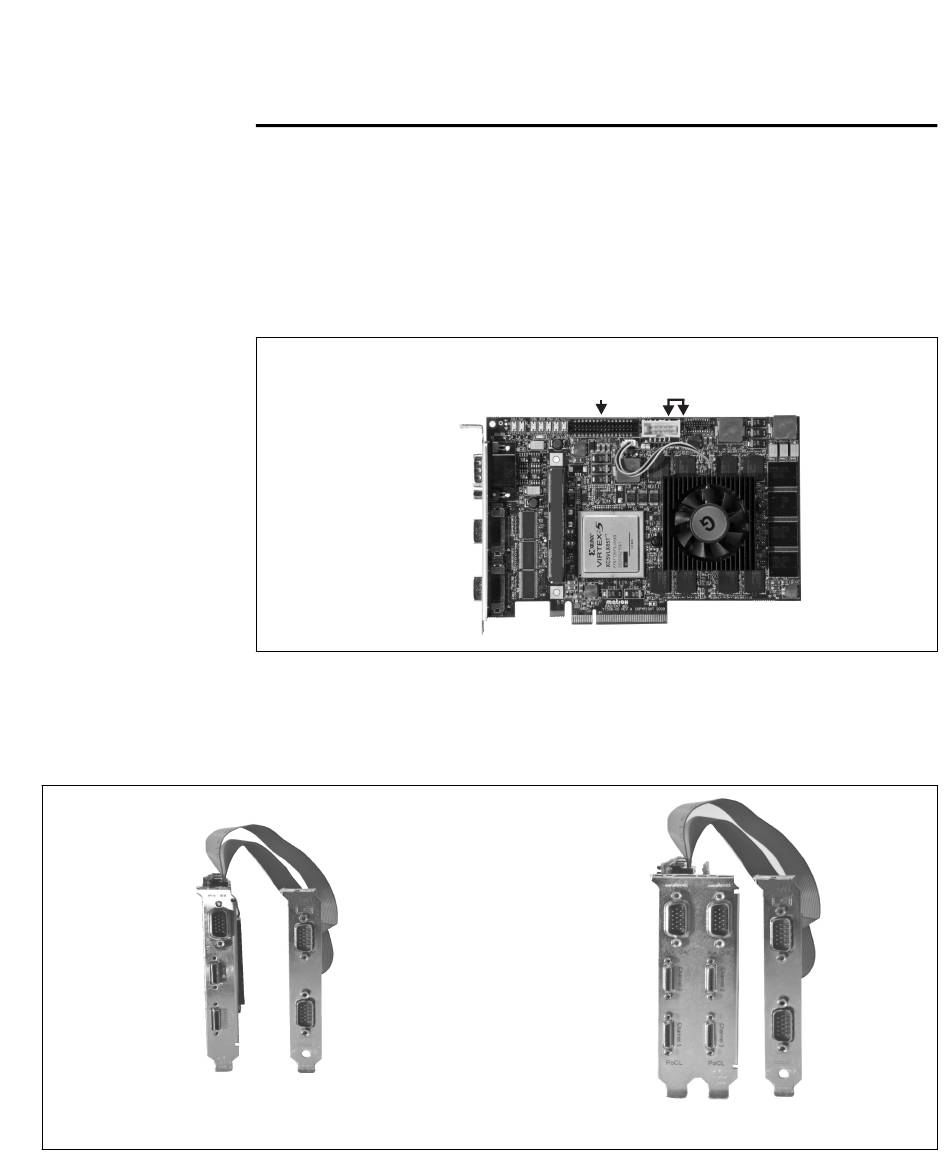

Connectors on Matrox Radient eCL boards

On the Matrox Radient eCL boards, there are several interface connectors. On
the bracket of Matrox Radient eCL-DB and eCL-SF, there are two Camera Link
video input connectors and an auxiliary I/O connector. On the double bracket of
Matrox Radient eCL-QB and eCL-DF, there are two pairs of Camera Link video
input connectors and two auxiliary I/O connectors. In addition, close to the top
edge of the main board, there is an internal auxiliary I/O connector.
On the Matrox Radient eCL cable adapter bracket, there are two external auxiliary
I/O connectors (DBHD-15); these allow you to access the signals of the internal
auxiliary I/O connector from outside the computer enclosure.
Auxiliary I/O
connector A
Camera Link
video input
connector 0
Camera Link
video input
connector 1
Matrox Radient cable
eCL-DB or eCL-SF adapter
bracket
Auxiliary I/O
connector A
Camera Link
video input
connector 0
Camera Link
video input
connector 1
Auxiliary I/O
connector C
Auxiliary I/O
connector D
Connectors on Matrox Radient eCL boards
Internal
auxiliary I/O Reserved
connector connectors
Auxiliary I/O
connectors
A and B
Camera Link
video input
connectors 0 and 2
Camera Link
video input
connectors 1 and 3
Matrox Radient
eCL-QB or eCL-DF
73
Auxiliary I/O
connector C
Auxiliary I/O
connector D
cable
adapter
bracket
