4.7 Output specifications

4.7.1 Standard output for Ref. QMX150

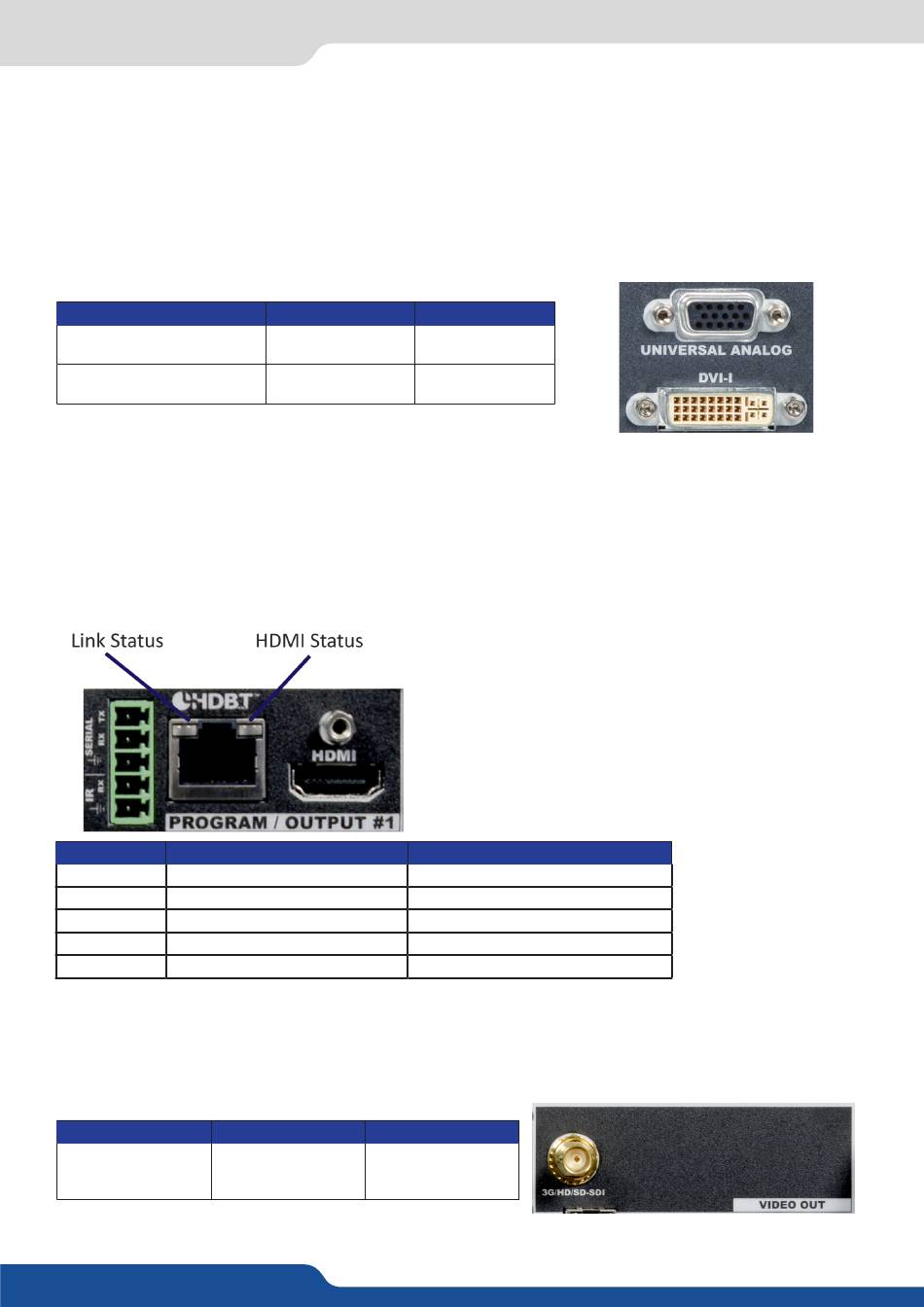

The QuickMatriX (QMX150) has two standard outputs.
The standard output contains:
- Analog Computer/Video (HD15),
- HDMI output over a DVI-I connector or DVI-I output (DVI-Analog and DVI-Digital).
Please see the formats available on the output:
Output Type
Analog Computer/Video Ouput
DVI-I Output
Please note that SDTV and EDTV are not available on the standard output but only on the video output module.
4.7.2 Standard output for Ref. QMX150-H
The QuickMatriX-H (QMX150-H) has two standard outputs.
The standard output contains:
- HDMI connector,
- HDBaseT connector.
Status
LED off
Low Blink Ethernet Fallback Mode
Medium Blink Low Power Mode without Ethernet
Fast Blink Low Power Mode with Ethernet
LED on
The IR and Serial connectors associated to the HDBaseT connector are described in section 4.8.4.
4.7.3 Video output (only for Ref. QMX150-H)
The QuickMatriX-H (QMX150-H) has one Video output:
- 3G/HD/SD-SDI (BNC)
Output Type
3G/HD/SD-SDI
Format
HDTV
Computer
HDTV
Computer
LINK (green color)
No Link
HDBaseT Link
Format
SDTV Digital SDTV
HDTV Digital HDTV
Cinema
Signal
Analog HDTV
Analog Computer
Digital HDTV
Digital Computer
HDMI (orange color)
No HDMI Video
Not Applicable
HDMI content without HDCP encryption
Not Applicable
HDMI content with HDCP encryption
Signal
DCDM 2K
