Analog way QuickMatriX QMX150 User Manual page 22

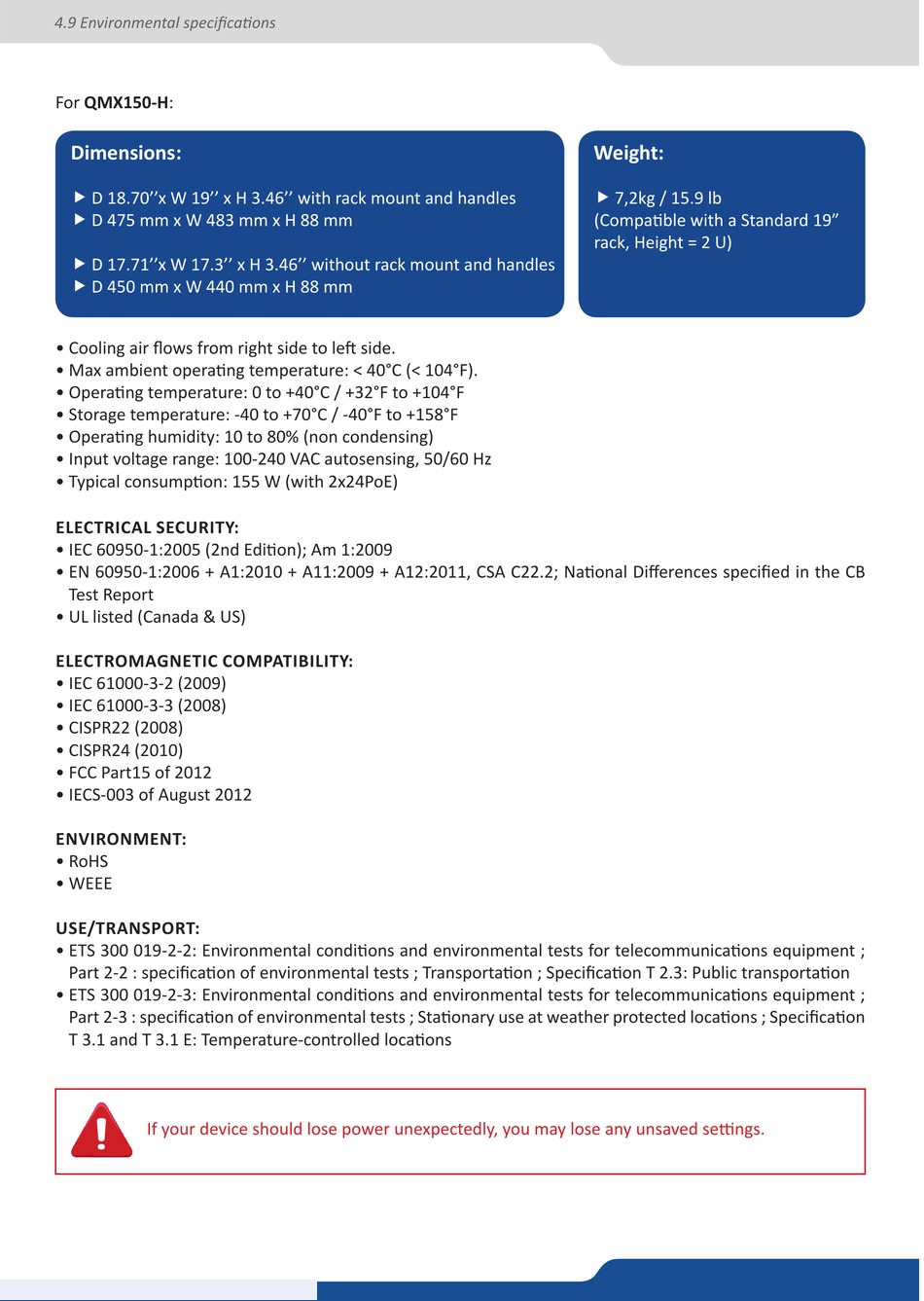

4.9 Environmental specifications
For QMX150-H:
Dimensions:
 D 18.70''x W 19'' x H 3.46'' with rack mount and handles
 D 475 mm x W 483 mm x H 88 mm
 D 17.71''x W 17.3'' x H 3.46'' without rack mount and handles
 D 450 mm x W 440 mm x H 88 mm
• Cooling air flows from right side to left side.
• Max ambient operating temperature: < 40°C (< 104°F).
• Operating temperature: 0 to +40°C / +32°F to +104°F
• Storage temperature: -40 to +70°C / -40°F to +158°F
• Operating humidity: 10 to 80% (non condensing)
• Input voltage range: 100-240 VAC autosensing, 50/60 Hz
• Typical consumption: 155 W (with 2x24PoE)
ELECTRICAL SECURITY:
• IEC 60950-1:2005 (2nd Edition); Am 1:2009
• EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011, CSA C22.2; National Differences specified in the CB
Test Report
• UL listed (Canada & US)
ELECTROMAGNETIC COMPATIBILITY:
• IEC 61000-3-2 (2009)
• IEC 61000-3-3 (2008)
• CISPR22 (2008)
• CISPR24 (2010)
• FCC Part15 of 2012
• IECS-003 of August 2012
ENVIRONMENT:
• RoHS
• WEEE
USE/TRANSPORT:
• ETS 300 019-2-2: Environmental conditions and environmental tests for telecommunications equipment ;
Part 2-2 : specification of environmental tests ; Transportation ; Specification T 2.3: Public transportation
• ETS 300 019-2-3: Environmental conditions and environmental tests for telecommunications equipment ;
Part 2-3 : specification of environmental tests ; Stationary use at weather protected locations ; Specification
T 3.1 and T 3.1 E: Temperature-controlled locations
If your device should lose power unexpectedly, you may lose any unsaved settings.
22
Weight:
 7,2kg / 15.9 lb
(Compatible with a Standard 19"
rack, Height = 2 U)
