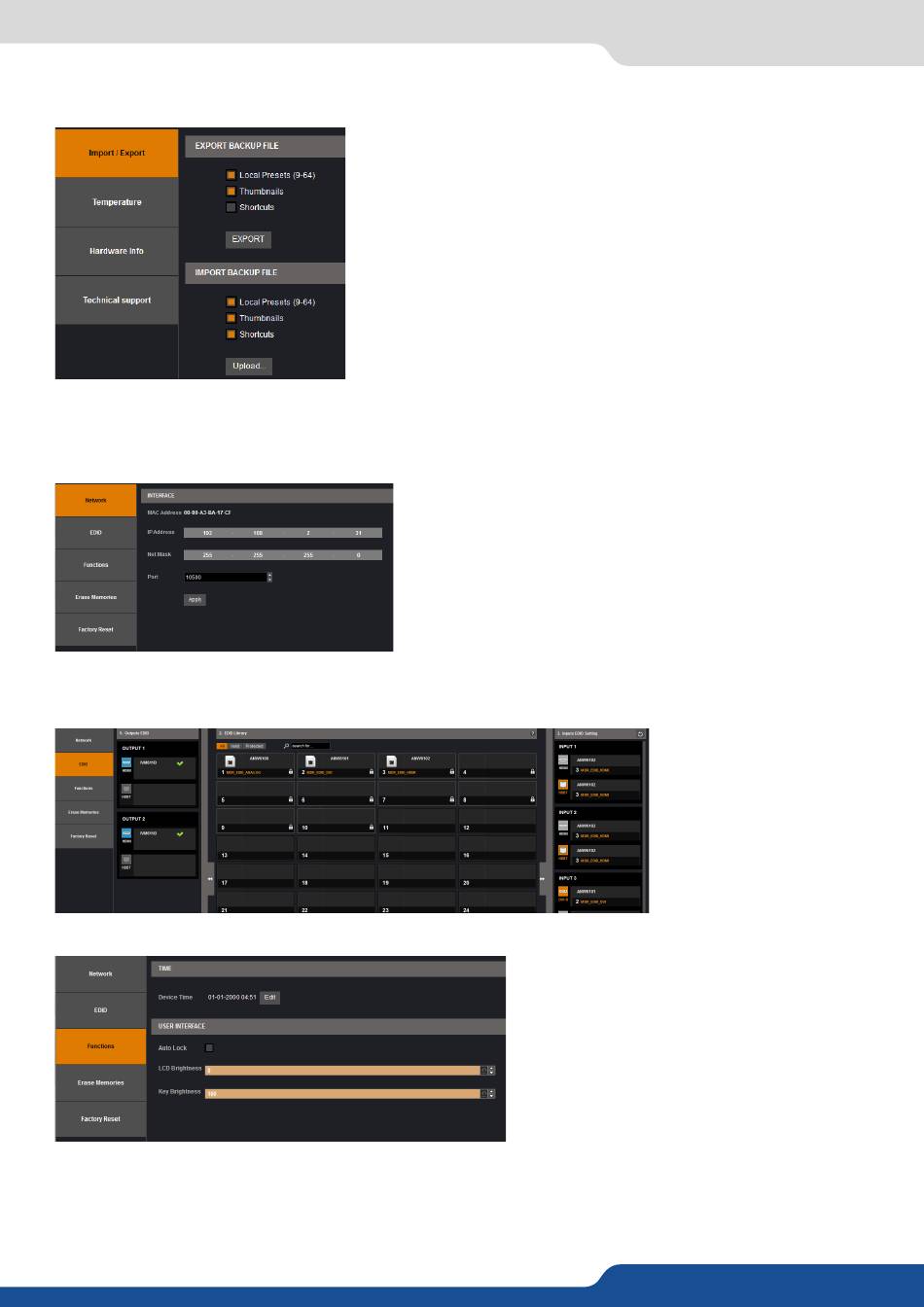

7.2.10 Service management
7.2.10 Service management
7.2.11 Control management
In this menu, all specific settings, which cannot be sorted under the other menus, are listed:
Network
EDID
Under this section, you can manage the EDID library, and configure the EDID inputs if needed by dragging and
dropping from the EDID Library section to the inputs.
Functions
42
In the Service section, you will find the following tools:
IMPORT / EXPORT: Export or locally import the Local Presets, the
Thumbnails and the Shortcuts.
TEMPERATURE and HARDWARE INFO: Provide the status of the
FPGA and boards via alarm tabs.
TECHNICAL SUPPORT: Display the different technical support
contacts depending on your area.
The interface loaded into the unit uses the IP configuration.
Under INTERFACE, you can define a new:
- IP address
- Netmask
- Port: choose the port
Under function, you can edit:
- TIME:
- AUTO LOCK:
you will be locked out from selecting empty
inputs that have no source connected,
- LCD BRIGHTNESS:
your LCD,
- KEY BRIGHTNESS:
your keyboard.
the internal real time clock,
when this feature is enabled,
adjust the brightness of
adjust the brightness of
