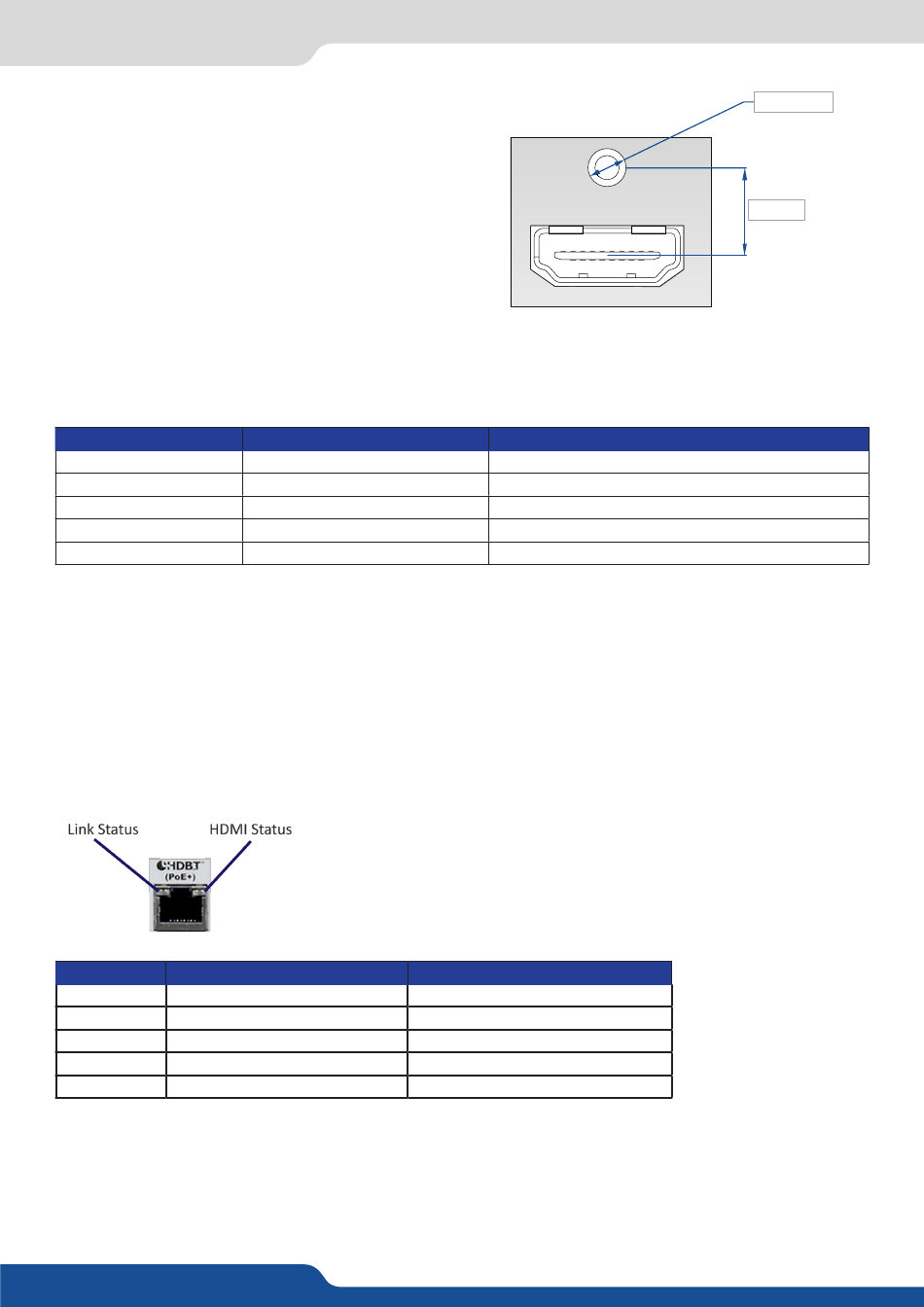

The QuickMatriX uses an HDMI plug with a standard
mounting screw above the connector. Please see the
diagram below.
This hole is occupied by a Torx10 screw when you receive
the unit. If desired, this screw can be removed and
replaced by a compatible aftermarket HDMI plug locking
mechanism to ensure a secure HDMI connection. This
threaded hole should not be left empty.
This hole is used by a TX10 screw when you receive the unit, if you wish to use an HDMI cable with a security
fixing screw you can take this screw off and use your own in order to insure good fixing of your HDMI plug.
Please take a look at the accepted formats regarding the input plug type:
Plug Type
Universal Analog Input
DVI-D Input
HDMI Input
HDBaseT Input
3G/HD/SD-SDI Input
WARNING: Only the video and audio signal is processed for the HDMI®, and 3G/HD/SD-SDI inputs; other
embedded auxiliary features are not supported or passed through. The embedded audio is processed. All
other HDMI® features such as: HDMI Ethernet Channel, Audio Return Channel, 3D, 4K, Content Type, Deep
Color and x.v.Color are NOT supported.
The QuickMatriX-H (only for Ref. QMX150-H) is equipped with two HDBaseT input connectors.
In addition of the management of the embedded audio streams, the HDBaseT inputs also support the Ether-
net pass-through and the Power Over Ethernet (PoE+ with 48V and 30W) functionalities.
The following table indicates the LED status of HDBaseT inputs plugs:
Status
LED off
Low Blink Ethernet Fallback Mode
Medium Blink Low Power Mode without Ethernet
Fast Blink Low Power Mode with Ethernet
LED on
Formats
SDTV - EDTV - HDTV - Computer
SDTV - EDTV - HDTV - Computer
SDTV - EDTV - HDTV - Computer
SDTV - EDTV - HDTV - Computer
SDTV - HDTV
LINK (green color)
No Link
HDBaseT Link
Analog SDTV - Analog EDTV - Analog HDTV - Analog Computer
Digital SDTV - Digital EDTV - Digital HDTV - Digital Computer
Digital SDTV - Digital EDTV - Digital HDTV - Digital Computer
Digital SDTV - Digital EDTV - Digital HDTV - Digital Computer
HDMI (orange color)
No HDMI Video
Not Applicable
HDMI content without HDCP encryption
Not Applicable
HDMI content with HDCP encryption
4.6 Input specifications
M3x0,5 mm
27 mm
Signals
Digital SDTV - Digital HDTV
