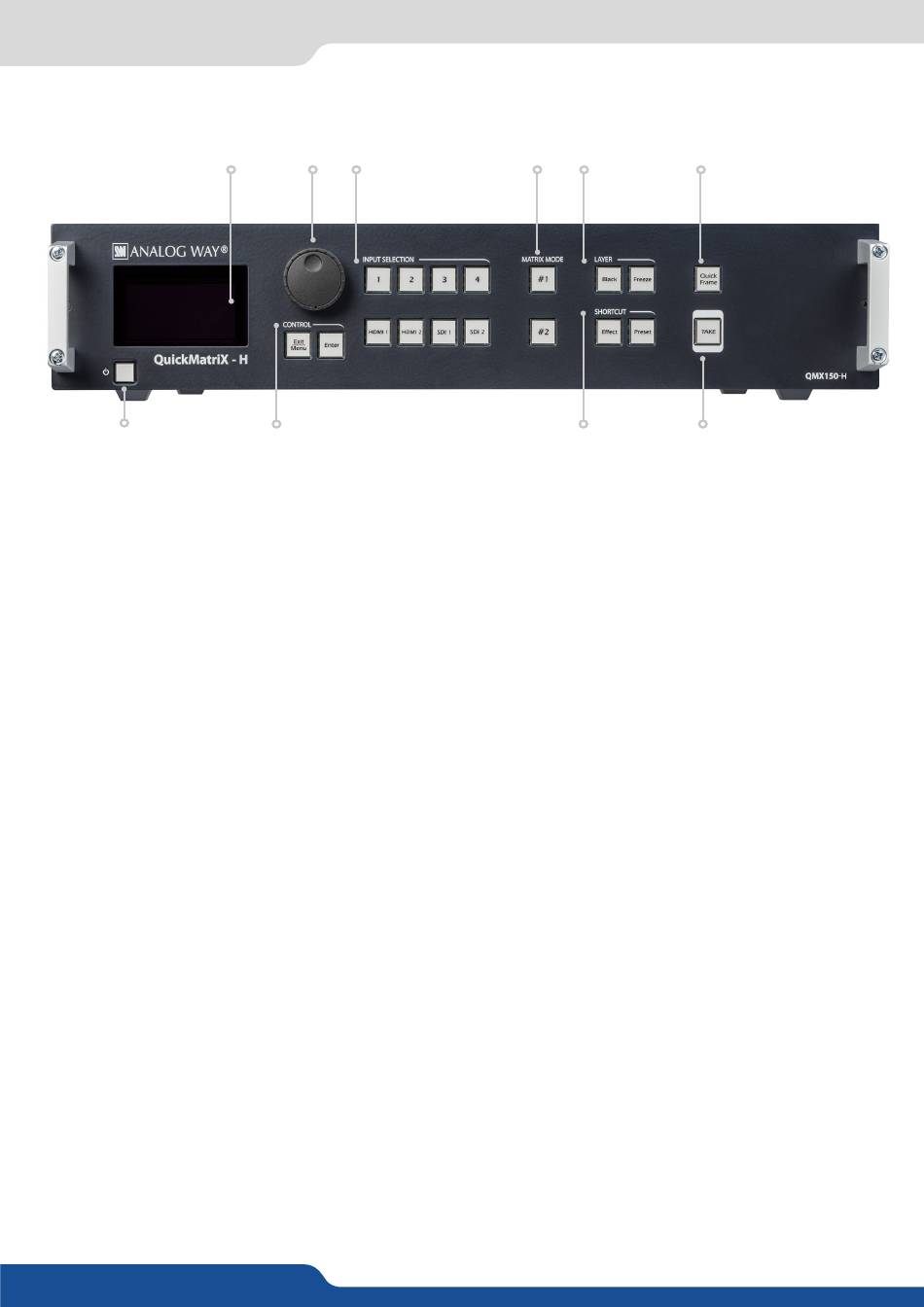

5.1.4 Front panel - Ref. QMX150-H
1
7
1. Front panel display:
2. Menu scroll knob
3. Input selection:
- 1 to 4: access source 1 to 4
- HDMI 1/2: access HDMI 1 or HDMI 2
- SDI 1 to SDI 2: access SDI 1 to SDI 2
4. Matrix mode:
#1 to #2: select the output #1 or #2, a layer and a source, then press TAKE.
This is a fast routing mode
5. Layer:
- Black: clear the layer
- Freeze: freeze/unfreeze the input selected in the currently selected layer
6. Quick Frame:
allows to quickly display a foreground frame
7. On/Off - Stand-by:
hold for 3 seconds for stand-by mode
8. Control:
Exit/menu: Home menu or back one level - Enter: validate the menu or command
9. Shortcut:
Effect: shorcut to transition menu - Preset: recall a custom stored preset
10. TAKE:
transition the pre-selected sources onto the Program output with the selected effects
2
3
8
4-line VFD
5.1.4 Front panel - Ref. QMX150-H
4
5
6
9
10
27
