- DVI TYPE:
set up the type of color space of your DVI output,
- DVI as HDMI:
DVI output content as HDMI. Audio is included,
- HDMI TYPE:
set up the type of color space of your HDMI output,
- HDMI as DVI:
HDMI output content as DVI,
- HDCP DETECT:
enable or not the HDCP detection on the output,
- CENTERING PIC:
display the centering test pattern,
- TEST PATTERN:
choose to display one of the available test pattern.
All changes have to be validated by pressing the ENTER button in order to be saved
NOTE: The output status can provide you all information about the output in real time. This feature is
particularly needed when HDCP is used with long cable to be sure that the communication is well
handled.
8.2.5 Working with layers
To work with Matrix mode, you first have to select the source then the output where you want to put the
source.
Press Matrix #1 button > Press Source# button > Press input #1
Press Matrix #2 button > Press Output# button > Press input #3

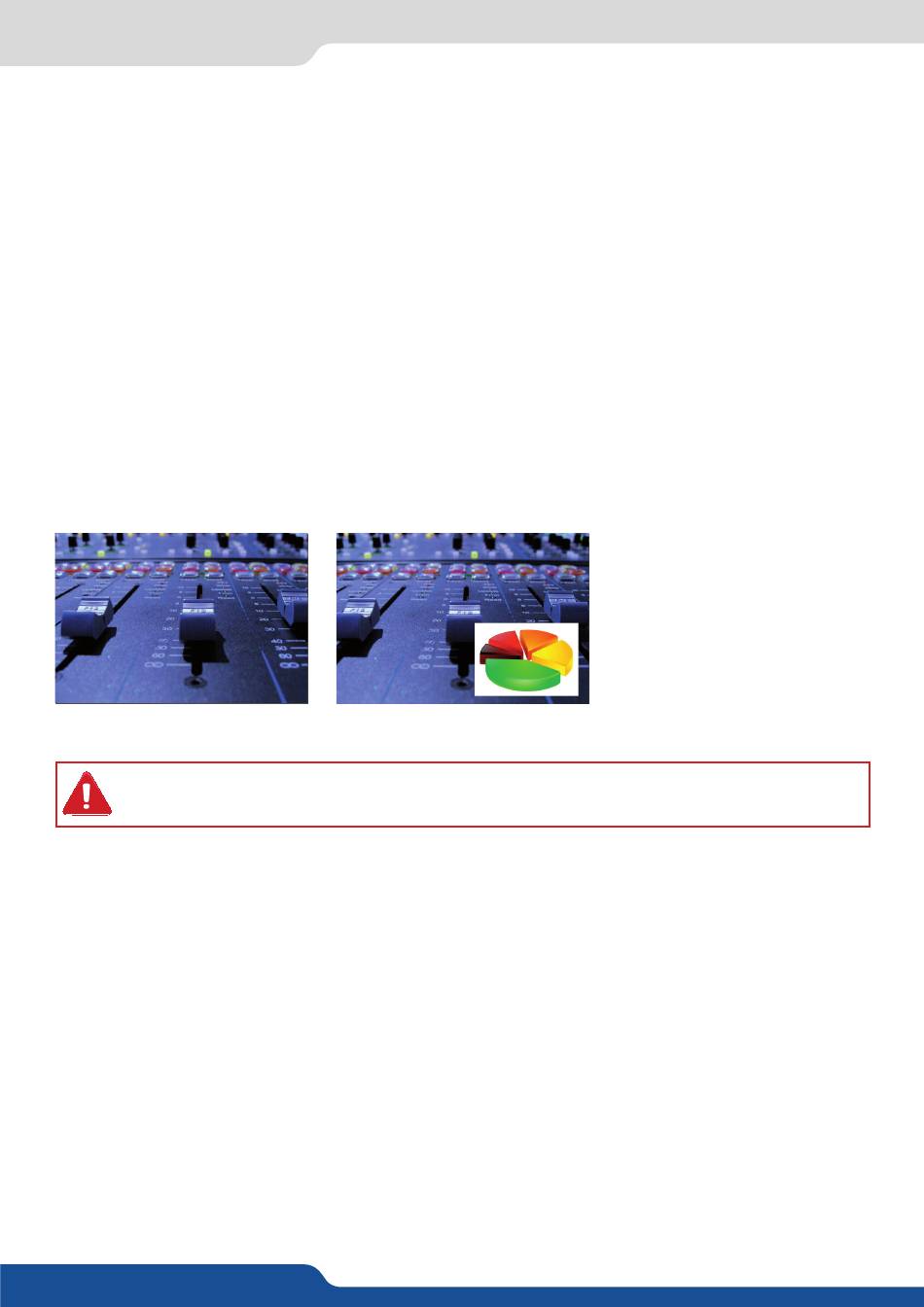

1 layer
The QuickMatriX has the possibility to use a second layer. This layer can be displayed only with a
controler (RCS², RK-350 or Vertige™). This layer has to be keyed. If not, it will be displayed in black.
Press TAKE to view the result on both screens
8.2.6 Working with layers functions
Once a source is assigned to a layer, you will have access to some layer settings in the Layer menu or direct-
ly by pressing the layer button.
The settings available depend on the layer selected:
- Layer adjusts:
set up layer size and position,
- Layer zoom:
set up layer zoom size and position,
- Size Templates:
adjust a specific size (Fullscreen, 1/2, 1/3, ...),
- Transparency:
adjust the layer transparency,
- Border:
choose the border and adjust its properties,
- Opening and Closing effect:
- Smooth move:
enable/disable smooth move,
- Status:
get the selected layer status.
All changes have to be validated by pressing the ENTER button in order to be saved
1 layer + 1 PIP (keying)
adjust the Open/Close effect type and duration,
8.2.5 Working with layerss
