7.2.4 Misc
7.2.5 Output management

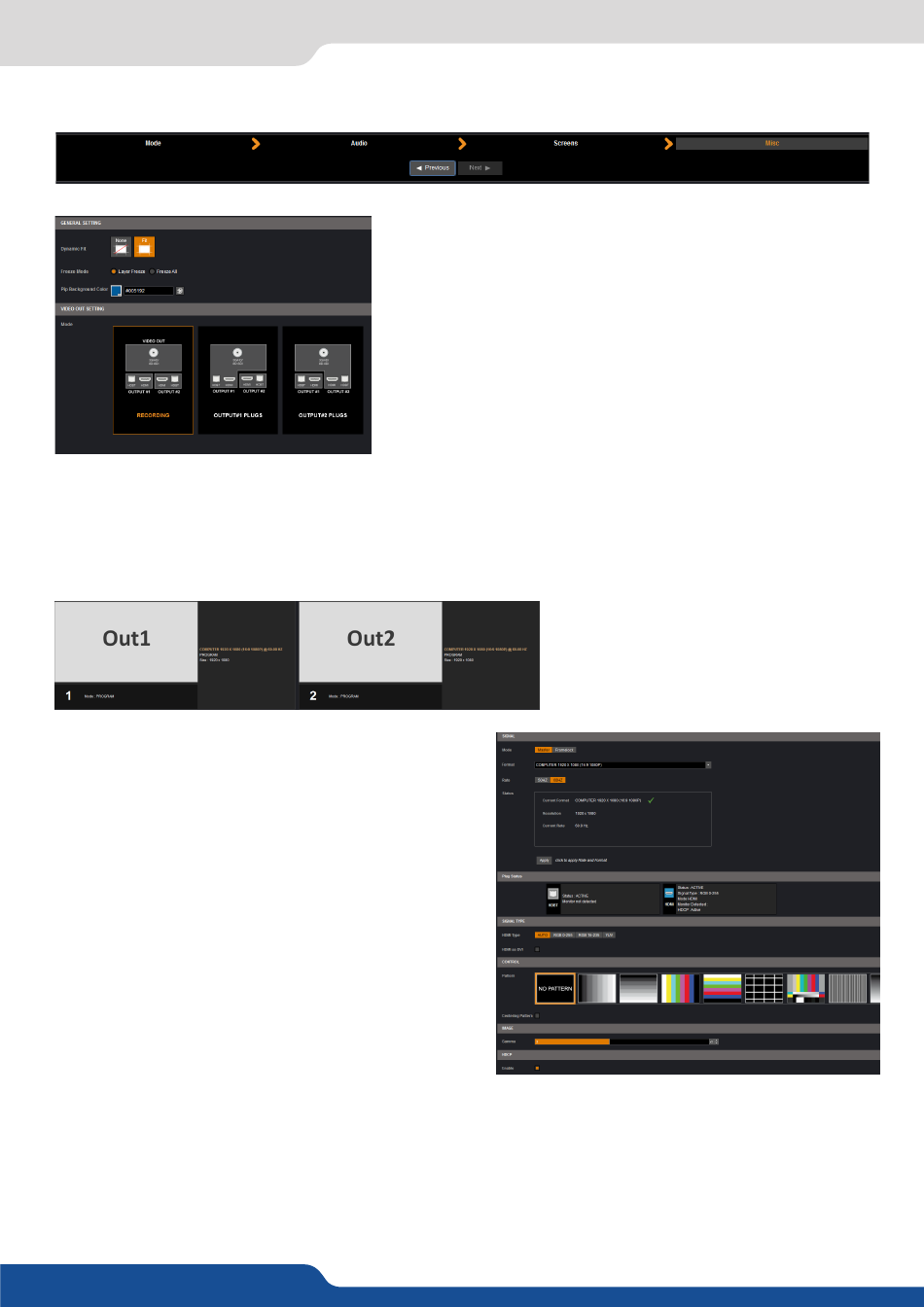

Into the output section, you will be able to manage your output resolutions, formats, sync types, test patterns,
etc. On the SETUP > OUTPUT TAB, the following screen will appear:
A short summary of each output settings appears on the
main page. You can see the number of outputs, their
resolution, rate and HDCP status.
Select an output to adjust by either clicking on it from
the column on the left, or clicking the configuration cog
icon for that output.
Once the individual output setup page is opened, you
have access to:
- MODE: choose your rate generation mode, internal
(free-running within the unit) or Framelock by choosing
an input as a reference input,
- FORMAT: choose the output resolution format,
- RATE: choose the signal timing standards, if the mode is
set to internal
- STATUS: the status menu will show you the current
output status,
- APPLY: click on this button to apply the new format/rate,
- PLUG STATUS: indicates the status of the attached monitor and confirms connectivity,
- TYPE: you can choose the type of output synchronization on the analog plug, for example RGsB for sync on
green, or RGBHV for separate H and V sync wires,
- HDMI as DVI: select this box to force the output to DVI mode instead of the default HDMI autosense mode.
When in DVI mode, no embedded audio will be transmitted,
DYNAMIC FIT:
enable or disable the automatic recognition of
black band for digital content. The size and the aspect ratio of
the layer are automatically adapted.
FREEZE MODE: choose to freeze all inputs or only one input
when you use the freeze function.
PIP BACKGROUND COLOR:
of PIP background, black is the default color.
For Ref. QMX150-H, in the
have access to:
RECORDING: allow to configure the video output. Configuration
shall be done in section 7.2.9.
OUTPUT#1 and OUTPUT#2 PLUGS:
output as a copy of the output #1 and #2.
here you chose the automatic color
VIDEO OUT SETTING
auto configure the video
