7.2.7 Frame management
- Grabber: activate the grabber to grab the color you want to key. Move the cursor and click on the grab
button to grab the color.

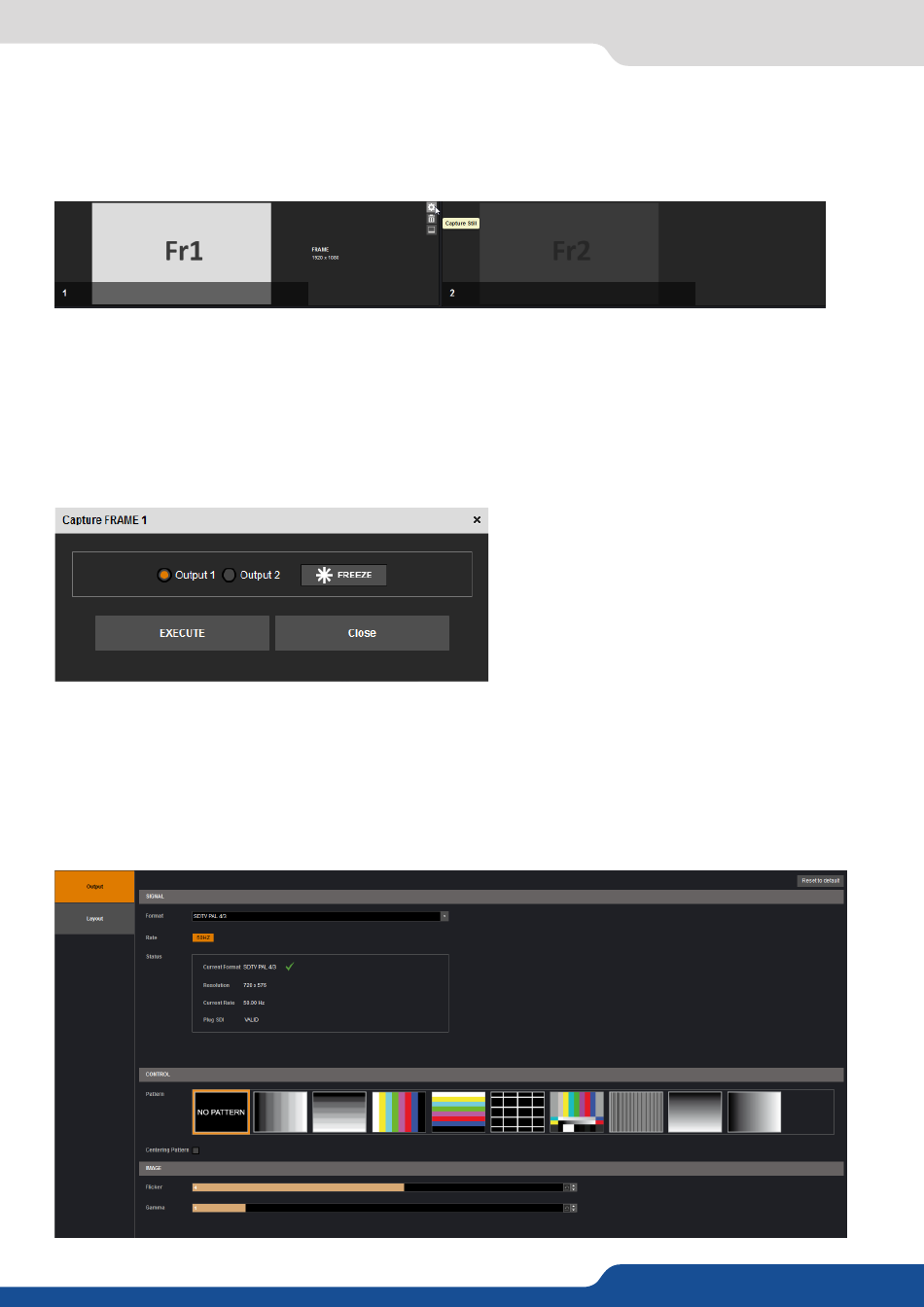

7.2.7 Frame management
To save a frame click on this button:
The next page opens.
From here you can capture from the main or from the Preview.
You can still freeze the output before saving your frame.
How to save a frame:
Choose first Program or Preview, click on FREEZE if you want to freeze your output. Then click on EXECUTE to
save your frame into the selected slot.
7.2.8 Vide out (only for Ref. QMX150-H)
The configuration of this section is only available if the VIDEO OUT SETTING mode is set to "RECORDING" in
the Preconfig > MISC section.
Into this section, choose the output format of the video output.
You will find the status of your output and the possibility to choose the test pattern. In addition, you can
adjust:
