SmartFusion2 SoC FPGA - Error Detection and Correction of eSRAM Memory
2.4

Running the Demo

This section describes the SmartFusion2 Security Evaluation Kit board setup, the GUI options, and how
to execute the demo design.
2.4.1

Demo Setup

The following steps describe how to setup the demo:
1. Connect the FlashPro4 programmer to the J5 connector of SmartFusion2 Security Evaluation Kit
board.
2. Connect one end of the USB mini-B cable to the J18 connector provided in the SmartFusion2
Security Evaluation Kit board. Connect the other end of the USB cable to the host PC. Ensure that
the USB to UART Bridge drivers are automatically detected (can be verified in the Device Manager),
as shown in
Note: Copy the COM port number for serial port configuration. Ensure that the COM port Location is specified
as on USB Serial Converter D, as shown in the following figure.

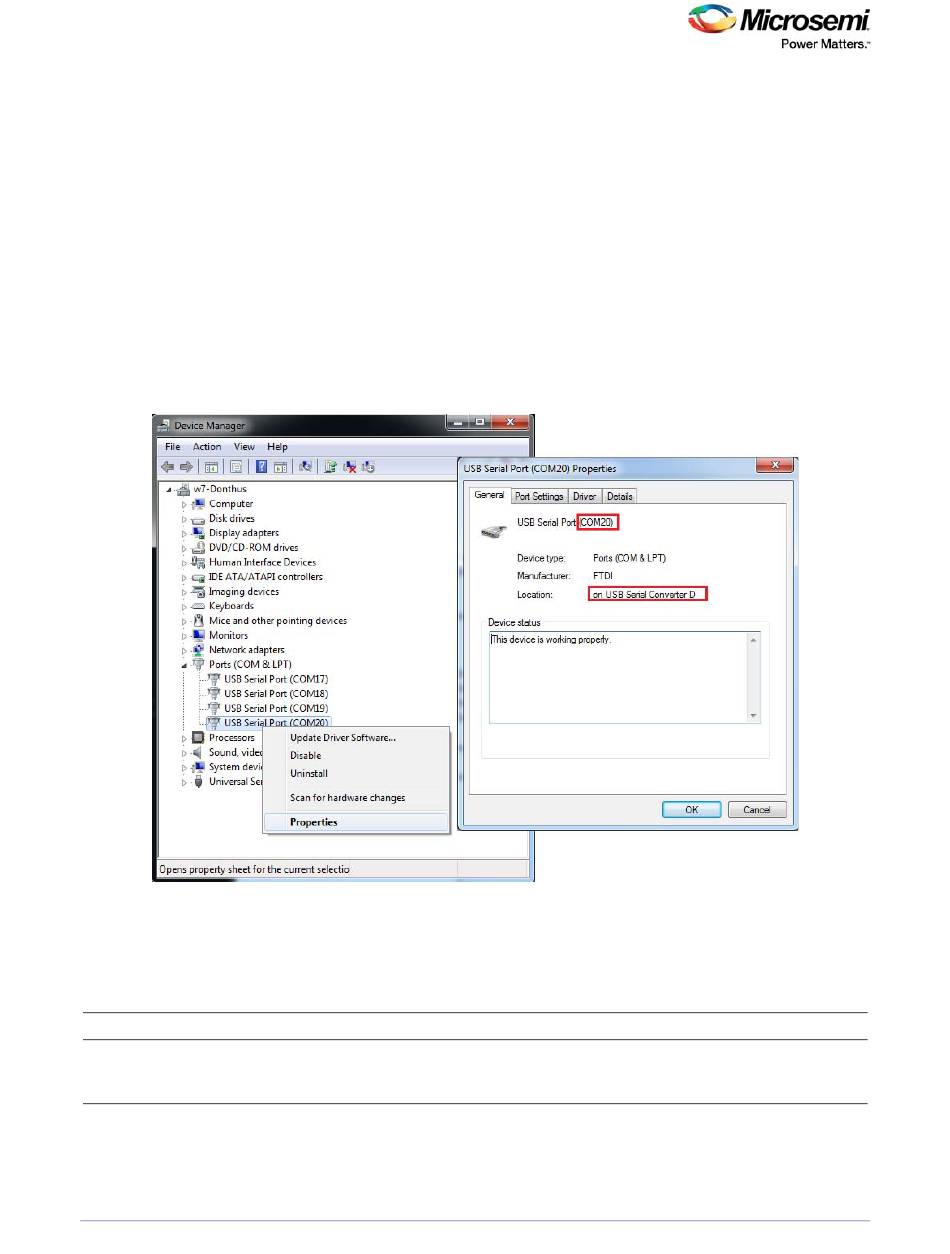

Figure 4 • USB to UART Bridge Drivers
3. If USB to UART bridge drivers are not installed, download and install the drivers from
www.microsemi.com/soc/documents/CDM_2.08.24_WHQL_Certified.zip
4. Connect the jumpers on the SmartFusion2 Security Evaluation Kit board, as shown in the following
figure. The power supply switch SW7 must be switched OFF while making the jumper connections.
Table 2 • SmartFusion2 Security Evaluation Kit Jumper Settings
Jumper
J22, J23, J24, J8, J3
5. Connect the power supply to J18 connector.
Figure 4, page 6.
Pin (From) Pin (To)
1 (default) 2
DG0388 Demo Guide Revision 10.0
Comments
These are the default jumper settings of the SmartFusion2
Security Evaluation Kit board. Ensure that these jumpers
are set accordingly.
6
