SmartFusion2 SoC FPGA - Error Detection and Correction of eSRAM Memory

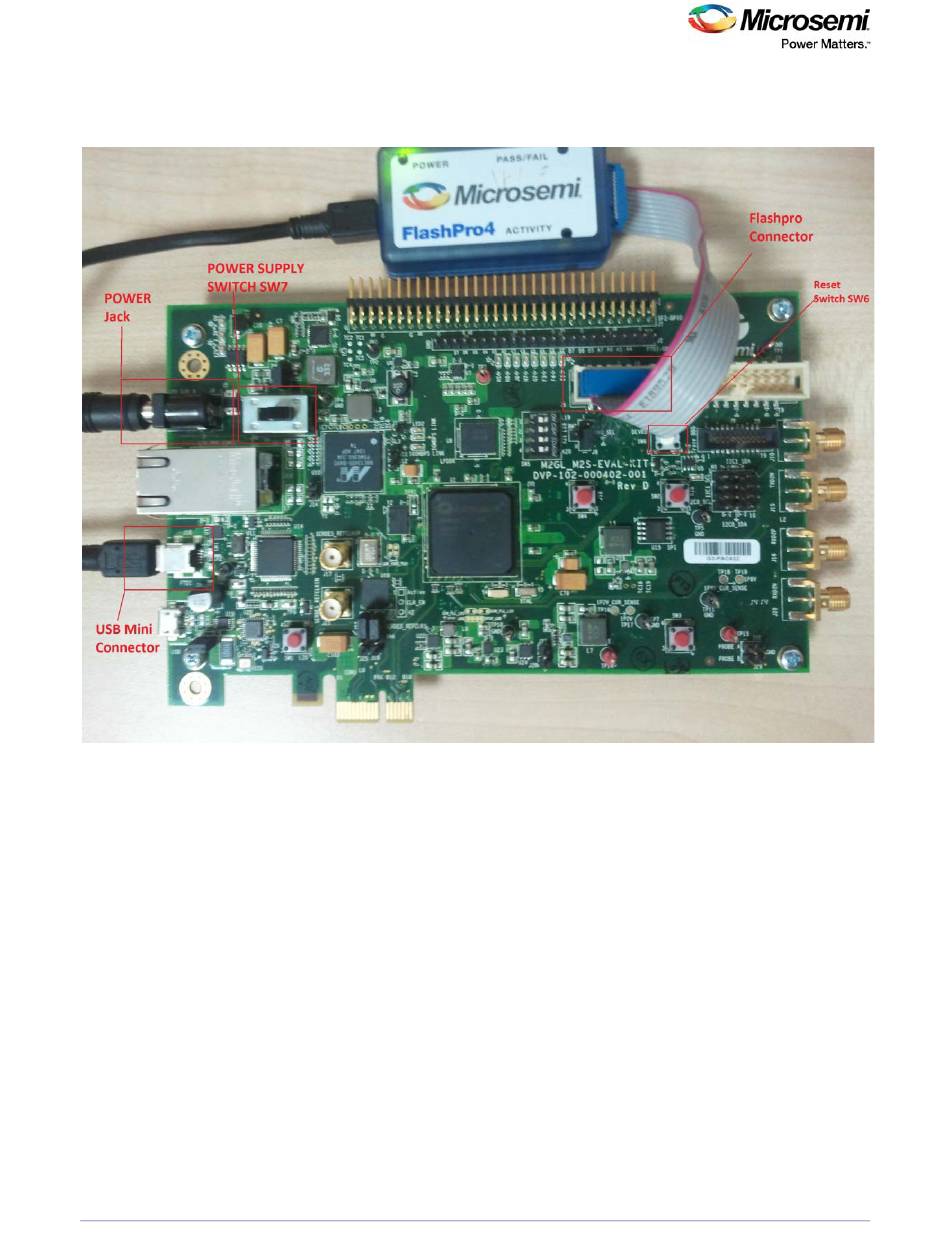

The following figure shows the board setup for running the demo on the SmartFusion2 Security

Evaluation Kit.

Figure 5 •

SmartFusion2 Security Evaluation Kit Board Setup

2.4.2

Graphical User Interface

The following section describes about eSRAM - EDAC demo GUI.

DG0388 Demo Guide Revision 10.0
