Summary of Contents for BDS AutoMAB 350

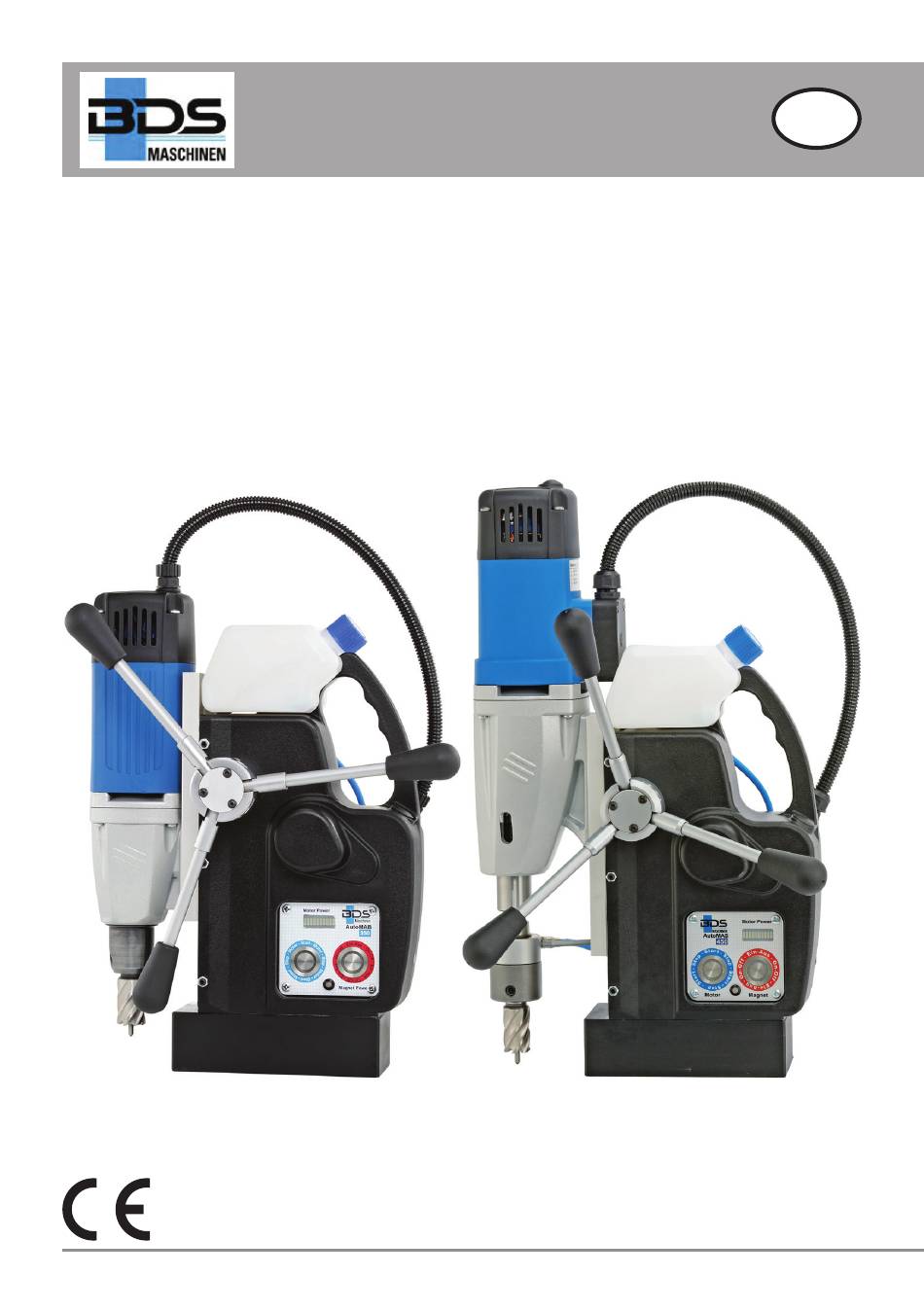

- Page 1 Translation of the Original Operating Instructions AutoMAB 350, 450...
-
Page 3: Table Of Contents
Dispose of the device via communal collection points. The lubricant used can contain substances dangerous to the environment. Dispose of the lubricant according to local regulations. Observe the disposal instructions from the lubricant manufacturer. AutoMAB 350, 450... - Page 4 If the situation is not avoided, it may lead to material damage. ► Follow the instructions in this warning to avoid material damage. NOTE ► A note indicates additional information that simplifies the use of the machine. AutoMAB 350, 450...
-
Page 5: Safety
■ Pay attention to cleanliness at the workplace. ■ Keep the machine clean, dry and free of oil and grease. ■ Follow the instructions on lubricating and cooling the tool. AutoMAB 350, 450... - Page 6 Wear protective gloves when removing swarf. ► When working on scaffolding, the op- erator must be secured with a safety belt as the machine can oscillate dan- gerously in the event of interruption to the power supply. AutoMAB 350, 450...
- Page 7 ► Do not pull the connecting cable across sharp edges or hot surfaces. ► Lay the connecting cable in such a way that it cannot be caught and wound up in the rotating part of the machine. AutoMAB 350, 450...
- Page 8 If the clamping magnet loses adhe- sion during processing, the feed and drill motor is switched off. This is possible as the result of an unfavourable drill to feed speed ratio, so that the machine is squeezed off the substrate. AutoMAB 350, 450...
-
Page 9: Components / Delivery
Electric shock hazard! Feed motor Handle Read the operating instructions before beginning work! Tool mount AutoMAB 350 - Weldon 19 mm (3/4) Wear protective goggles and AutoMAB 450 - MK2 industrial holder with manual clamping ear protection! Gearbox: AutoMAB 350 - single-stage... -
Page 10: Before Using For The First Time
Check for visible signs of damage or Manual feed missing items on delivery. Report an Scope of supply incomplete or damaged delivery to your dealer/supplier immediately. AutoMAB 350/450 core drilling ma- chine Safety chain ZAK 075 ejector pin ZAK 100 ejector pin Hexagonal offset screwdriver:... -
Page 11: Preparation
(1) of the machine before use. ► Use the protective equipment stipulat- ► Remove any unevenness and loose ed in the section “Personal protec- rust from the substrate. tive equipment”. AutoMAB 350, 450... -
Page 12: Inserting The Tool
NF metals or into work- pieces with an uneven surface. NOTE ► BDS offers a range of accessories with special holding and clamping devices for tubes and non-magnetic materials. AutoMAB 350, 450... - Page 13 (D) supplied and remove the offset screwdriver (D) supplied. tool from below. Removing the tool Unscrew both hexagonal socket ‹ screws in the tool mount using the hexagonal offset screwdriver (D) sup- plied and remove the core drill from below. AutoMAB 350, 450...
-
Page 14: Using
Deactivating the magnetic clamp Hold the handle tightly (3) to stop the ‹ machine from slipping. Turn the switch (21) off. The indicator ‹ lamp in the switch (21) extinguishes. AutoMAB 350, 450... - Page 15 If the clamping magnet loses adhe- sion during processing, the feed and drill motor is switched off. This is possible as the result of an unfavourable drill to feed speed ratio, so that the machine is squeezed off the substrate. AutoMAB 350, 450...
- Page 16 Insert the core drill into the tool mount ‹ (see section “Inserting the tool”). ► Use the high-performance BDS 5000 cutting oil in the cooling lubricant Place the machine at the location of ‹ system of the machine.
-
Page 17: Eliminating Blockages
Clean the tool and the tool holder on ‹ slide to the upper position. the machine. Remove swarf and check tool. ‹ Clean the guide of the machine slide. ‹ Put the machine and accessories into ‹ the transport case. AutoMAB 350, 450... -
Page 18: Maintenance
Tighten the clamping bolts again. ‹ Replacing the carbon brushes Replacement of the carbon brushes may only be carried out by BDS or by an au- thorised specialist workshop. Unauthorised repairs will invalidate the guarantee. Customer service/service Should you have any questions on custom- er service/service, please contact BDS.We... -
Page 19: Troubleshooting
The lubrication system does Lubricant tap closed. Open the lubricant tap. not function. Connecting nipple clogged. Clean the tank and nipple. NOTE ► If you cannot resolve the problem with the steps described above, please contact customer service. AutoMAB 350, 450... -
Page 20: Technical Data
Level 1 n = 460 n = 250 n0 = 730 Level 2 n = 450 Weldon MK2/19 mm industrial Core drill assembly 19 mm (3/4“) holder (3/4“) Connecting cable length Protection class Protection type IP20 IP20 AutoMAB 350, 450... -
Page 21: Ec Declaration Of Conformity
D-41063 Mönchengladbach We hereby declare that the product: Model: Magnetic core drilling machine Model AutoMAB 350, 450 conforms to the following relevant regulations: ■ EC Directive 2006/42/EC on machinery The following harmonised standards were applied in whole or in part: ●... - Page 22 AutoMAB 350, 450...
- Page 23 Fig. 1 Fig. 3 Pos. 2 Pos. 1 Fig. 2 Fig. 4 B, C...
- Page 24 BDS Maschinen GmbH Martinstraße 108 D-41063 Mönchengladbach Fon: +49 (0) 2161 / 3546-0 Fax: +49 (0) 2161 / 3546-90 Internet: www.bds-maschinen.de E-mail: info@bds-maschinen.de...
