GB

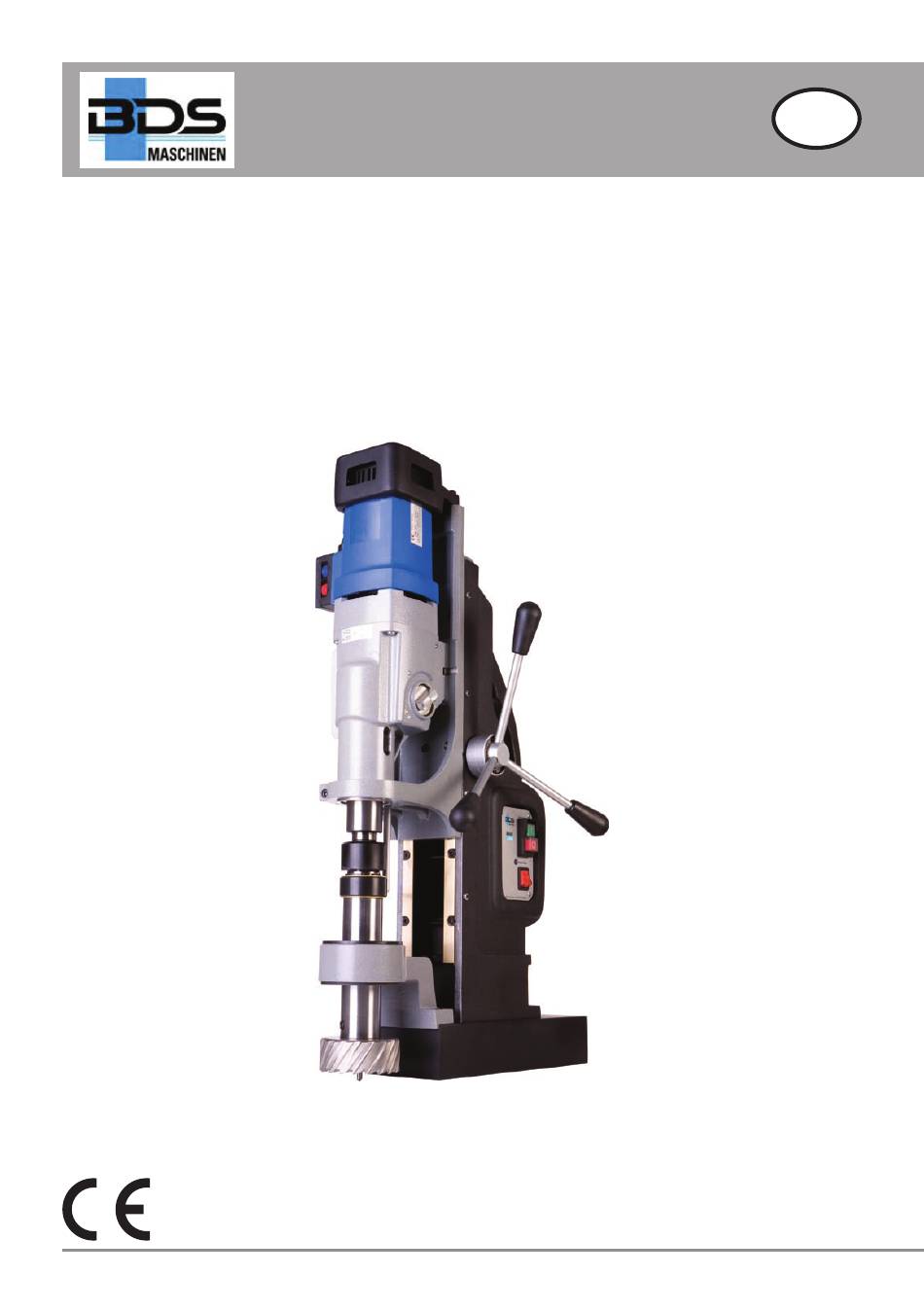

Translation of the Original
Operating Instructions
MAB 1300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAB 1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BDS MAB 1300

Summary of Contents for BDS MAB 1300

  • Page 1 Translation of the Original Operating Instructions MAB 1300...
  • Page 2 Fig. 1 Fig. 2...

  • Page 3: Table Of Contents

    Dispose of the device via communal collection points. The lubricant used can contain substances dangerous to the environment. Dispose of the lubricant according to local regulations. Observe the disposal instructions from the lubricant manufacturer. MAB 1300...
  • Page 4 If the situation is not avoided, it may lead to material damage. ► Follow the instructions in this warning to avoid material damage. NOTE ► A note indicates additional information that simplifies the use of the machine. MAB 1300...

  • Page 5: Safety

    ■ Pay attention to cleanliness at the workplace. ■ Keep the machine clean, dry and free of oil and grease. ■ Follow the instructions on lubricating and cooling the tool. MAB 1300...
  • Page 6 Risk of losing one or more fingers. ► Remove loose jewellery before begin- ning work. ► Wear a hair net if you have long hair. MAB 1300...
  • Page 7 Check that the tool is tightened cable. securely before using (see section ► Do not pull the mains cable to remove “Inserting the tool”). the plug from the mains socket. ► Do not allow the connecting cable to hang over edges (trip effect). MAB 1300...
  • Page 8 ■ Allow the machine to run at idle for ("restart protection"), the machine must be approx. 2 minutes. switched on using the ON/OFF switch. The machine is then ready for operation again. MAB 1300...
  • Page 9 Also wear the following protective equip- ment during special work: Wear protective goggles and ear protection! Symbol Meaning Helmet for protecting your head against falling objects Wear a harness where there is a danger of falling. Gloves for protection against injuries MAB 1300...

  • Page 10: Components / Delivery Contents

    Components / delivery contents Scope of supply Components / delivery con- tents Machine MAB 1300 Machine overview ZAP 200 reducing ring (32 mm Weldon to 19 mm Weldon) Core drill ZAK 075 ejector pin (not supplied as standard) ZAK 090 ejector pin...

  • Page 11: Before Using For The First Time

    (F) supplied to prevent it from falling. ► Check the safety belt for correct func- tion before using. A damaged safety belt must not be used. Replace a damaged safety belt immediately. MAB 1300...
  • Page 12 NOTE paint, zinc and scale coatings and rust. The substrate must satisfy the following ► BDS offers a range of accessories conditions in order to achieve sufficient with special clamping devices for magnetic clamping force: tubes and non-magnetic materials.
  • Page 13 19 mm Use ZAP 200 reducing ring. Put the retainer into the guide on the ‹ Weldon shaft magnetic foot and secure it with the 32 mm Use MK4/Weldon 32mm tool screws. Weldon shaft holder with retainer (delivery condition). MAB 1300...
  • Page 14 Tighten both hexagonal socket screws ‹ Insert the tool into the spindle taper (5) ‹ in the tool holder using the Allen of the machine from below. wrench (H) supplied. NOTE ► When using tools/adapters with MK3 taper, use MK4:3 adapter sleeve. MAB 1300...
  • Page 15 “Dismantling/assembling the tool holder”. Inserting the drill chuck ► BDS offers matching industrial tool Insert the drill chuck onto the tapered ‹ holders and drill tap adapters in its mandrel and insert the combination range of accessories.

  • Page 16: Using

    (7) on the side of the gear box. Deactivating the magnetic clamp Hold the handle tightly (12) to stop the ‹ machine from slipping. Switch the magnet (23) ON/OFF ‹ switch off. The indicator lamp in the magnet (23) ON/OFF switch extin- guishes. MAB 1300...
  • Page 17 210 - 550 min NOTE ► If possible, always select a setting with low gear stage and high motor speed. The motor is then set with a higher torque and therefore protect- ed against overheating under heavy load. MAB 1300...
  • Page 18 Observe the following instructions when drilling with twist drills: ► Under excessive pressure, the drill can wear out and the machine can be overloaded. ► Make sure that swarf is removed regularly. With larger drilling depths, break up the swarf. MAB 1300...
  • Page 19 ► Use the high-performance BDS 5000 been cut. cutting oil in the cooling lubricant sys- tem of the machine. Switch off the machine and set the ‹...

  • Page 20: Eliminating Blockages

    ‹ NOTE Clean the guide of the machine slide. ‹ ► The BDS range of accessories in- Put the machine and accessories into ‹ cludes special devices the transport case. (e.g., POW 200) for removing swarf. MAB 1300...

  • Page 21: Storage

    Tighten the clamping bolts again. ‹ Replacing the carbon brushes Replacement of the carbon brushes may only be carried out by BDS or by an au- thorised specialist workshop. Unauthorised repairs will invalidate the guarantee. Customer service/service Should you have any questions on custom- er service/service, please contact BDS.We...

  • Page 22: Troubleshooting

    The lubrication system does Lubricant tap closed. Open the lubricant tap. not function. Connecting nipple clogged. Clean the tank and nipple. NOTE ► If you cannot resolve the problem with the steps described above, please contact customer service. MAB 1300...

  • Page 23: Technical Data

    Technical data Technical data Model MAB 1300 Dimensions (L x W x H) 495 x 255 x 875 Magnetic foot (L x W) 360 x 120 Approx. net weight. 230 V / 50-60 Hz Operating voltage (see type plate) or 110-125 / 50-60 Hz...

  • Page 24: Ec Declaration Of Conformity

    EC Declaration of Conformity EC Declaration of Conformity in accordance with Machine Directive 2006/42/EC, appendix II 1A Name/address of the manufacturer: BDS Maschinen GmbH Martinstraße 108 D-41063 Mönchengladbach We hereby declare that the product: Magnetic core drilling machine Model: Model...
  • Page 25 Fig. 3 Fig. 4 B, C, D, E...
  • Page 26 BDS Maschinen GmbH Martinstraße 108 D-41063 Mönchengladbach Fon: +49 (0) 2161 / 3546-0 Fax: +49 (0) 2161 / 3546-90 Internet: www.bds-maschinen.de E-mail: info@bds-maschinen.de...
