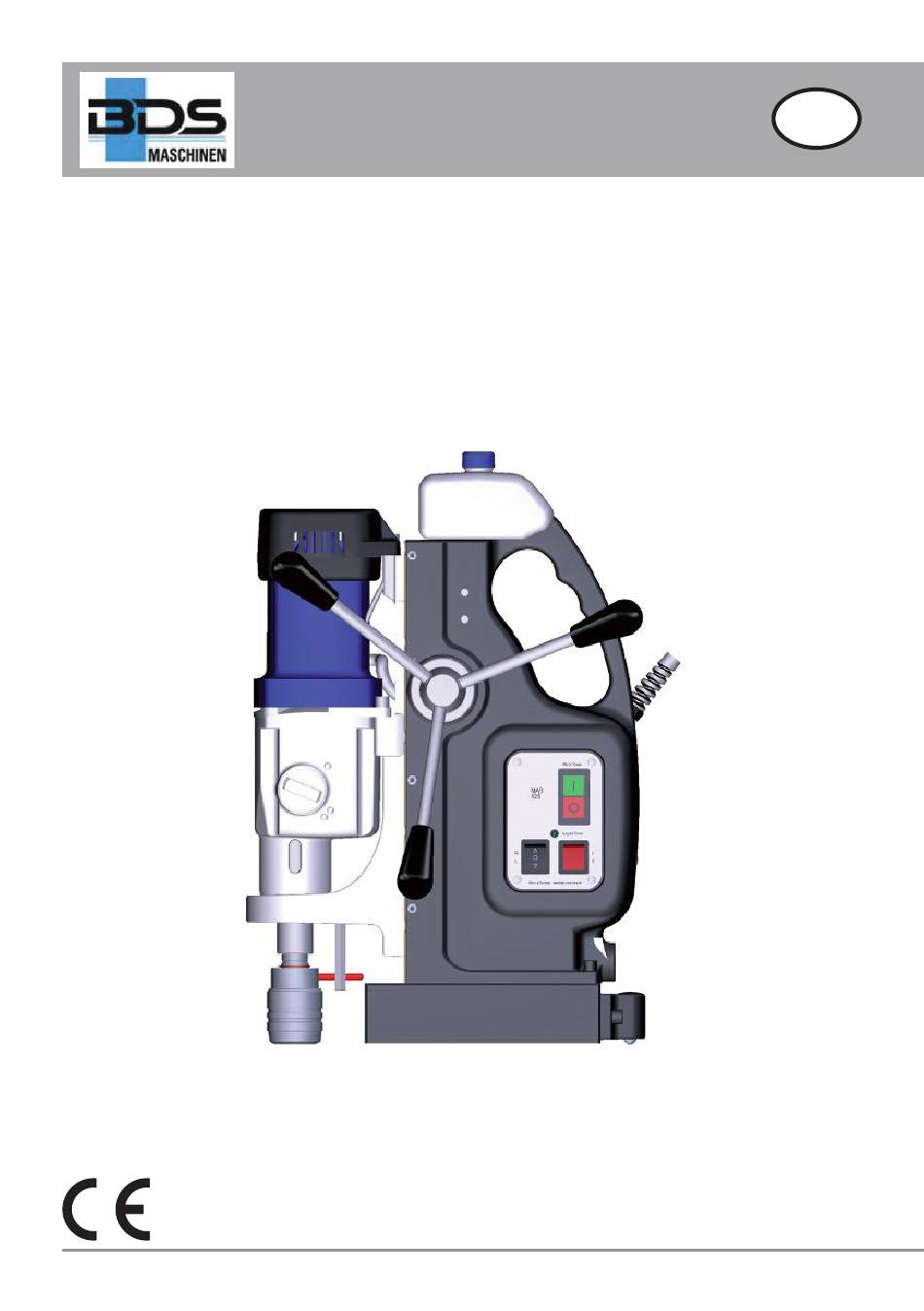

  • Page 1 Translation of the Original Operating Instructions MAB 825 V/ MAB 845 V...
  • Page 2 Fig. 1 Fig. 2...

  • Page 3: Table Of Contents

    Dispose of the device via communal collection points. The lubricant used can contain substances dangerous to the environment. Dispose of the lubricant according to local regulations. Observe the disposal instructions from the lubricant manufacturer. MAB 825 V/845 V...
  • Page 4 If the situation is not avoided, it may lead to material damage. ► Follow the instructions in this warning to avoid material damage. NOTE ► A note indicates additional information that simplifies the use of the machine. MAB 825 V/845 V...

  • Page 5: Safety

    Pay attention to cleanliness at the dition of the machine and the function of workplace. the operating elements. ■ Keep the machine clean, dry and free of oil and grease. ■ Follow the instructions on lubricating and cooling the tool. MAB 825 V/845 V...
  • Page 6 Risk of losing one or more fingers. ► Remove loose jewellery before begin- ning work. ► Wear a hair net if you have long hair. MAB 825 V/845 V...
  • Page 7 (see section ► Do not pull the mains cable to remove “Inserting the tool”). the plug from the mains socket. ► Do not allow the connecting cable to hang over edges (trip effect). MAB 825 V/845 V...
  • Page 8 ■ Allow the machine to run at idle for ("restart protection"), the machine must be approx. 2 minutes. switched on using the ON/OFF switch. The machine is then ready for operation again. MAB 825 V/845 V...
  • Page 9 The symbols on the machine have the a danger of falling. following meaning: Symbol Meaning Gloves for protection against injuries Electric shock hazard! Heavy load Read the operating instructions before beginning work! Wear protective goggles and ear protection! MAB 825 V/845 V...

  • Page 10: Components / Delivery Contents

    12 Hand lever Scope of supply 13 Control for engaging the "Automatic Feed" MAB 825 V/845 V core drilling ma- (see fig. 6 and 7) chine 14 Operating panel (see fig. 1) Industrial holder with automatic inter-...

  • Page 11: Before Using For The First Time

    (F) supplied. ► Check the safety chain for proper function before every use. A dam- aged safety chain must not be used. Replace a damaged safety chain immediately. MAB 825 V/845 V...
  • Page 12 NOTE paint, zinc and scale coatings and rust. The substrate must satisfy the following ► BDS offers a range of accessories conditions in order to achieve sufficient with special clamping devices for magnetic holding force: tubes and non-magnetic materials.
  • Page 13 (6) and the spindle 32 mm Wel- Use MK3/Weldon 32mm (A) taper (7). don shaft tool holder (ZIA 332). Insert the tool holder (6) from below ‹ into the spindle taper (7) of the ma- chine. MAB 825 V/845 V...
  • Page 14 (G) or loosen the tool by tapping NOTE against the ejector pin. ► For tools with 19 mm Weldon shank, use the MK3/Weldon 19 mm tool holder. ► Insert the appropriate ejector pin (B, C, D, E) before inserting a core drill. MAB 825 V/845 V...
  • Page 15 Turn the drill chuck until the ejector ‹ pin (G) slips into the opening for the ejector pin (8). Lever out the drill chuck with the ejec- ‹ tor pin (G) or loosen the drill chuck by tapping against the ejector pin. MAB 825 V/845 V...

  • Page 16: Using

    (10). Deactivating the magnetic clamp Hold the handle tightly (3) to stop the ‹ machine from slipping. Turn the magnet ON/OFF switch (23) ‹ off. The indicator lamp in the magnet ON/OFF switch (23) extinguishes. MAB 825 V/845 V...
  • Page 17 The motor is then set with a switched off automatically. higher torque and therefore protect- ed against overheating under heavy load. MAB 825 V/845 V...
  • Page 18 10 (HIGH) ATTENTION ► The "Selectable feed rate" range (scale mark 0 (LOW) to scale mark 3) may not be exceeded for workpiece processing! ► The "Rapid feed" range is only for the rapid feed function. MAB 825 V/845 V...
  • Page 19 (45). Turn the rotary control (43) to the ‹ "Rapid feed" range (scale mark 2 to scale mark 10). The machine slide moves into the upper end position and the feed motor is switched off automatically. MAB 825 V/845 V...
  • Page 20 Under excessive pressure, the drill can wear out and the machine can be overloaded. ► Make sure that swarf is removed regularly. With larger drilling depths, break up the swarf. ► Use BDS 6000 cooling lubricant concentrate. MAB 825 V/845 V...
  • Page 21 ► Use the high-performance BDS 5000 been cut. cutting oil in the cooling lubricant system of the machine. Switch off the machine and set the ‹...

  • Page 22: Eliminating Blockages

    ‹ Put the machine and accessories into ‹ check the tool. the transport case. Replace defective tool if necessary. ‹ NOTE ► The BDS range of accessories includes special devices (e.g., POW 200) for removing swarf. MAB 825 V/845 V...

  • Page 23: Storage

    Tighten the clamping bolts again. ‹ Replacing the carbon brushes Replacement of the carbon brushes may only be carried out by BDS or by an au- thorised specialist workshop. Unauthorised repairs will invalidate the guarantee. Customer service/service Should you have any questions on custom- er service/service, please contact BDS.We...

  • Page 24: Troubleshooting

    The lubrication system does Lubricant tap closed. Open the lubricant tap. not function. Connecting nipple clogged. Clean the tank and nipple. NOTE ► If you cannot resolve the problem with the steps described above, please contact customer service. MAB 825 V/845 V...

  • Page 25: Technical Data

    Technical data Technical data Model MAB 825 V/845 V Dimensions (L x W x H) 434 x 367 x 676 (758) Magnetic foot (L x W) 220 x 220 Approx. net weight. 57.5 230 V / 50-60 Hz Operating voltage (see type plate)

  • Page 26: Ec Declaration Of Conformity

    D-41063 Mönchengladbach We hereby declare that the product: Magnetic core drilling machine Model: Model MAB 825 V/845 V conforms to the following relevant regulations: EC Directive 2006/42/EC on machinery ■ The following harmonised standards were applied in whole or in part: ●...
  • Page 27 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 B, C, D, E...
  • Page 28 BDS Maschinen GmbH Martinstraße 108 D-41063 Mönchengladbach Fon: +49 (0) 2161 / 3546-0 Fax: +49 (0) 2161 / 3546-90 Internet: www.bds-maschinen.de E-mail: info@bds-maschinen.de...
