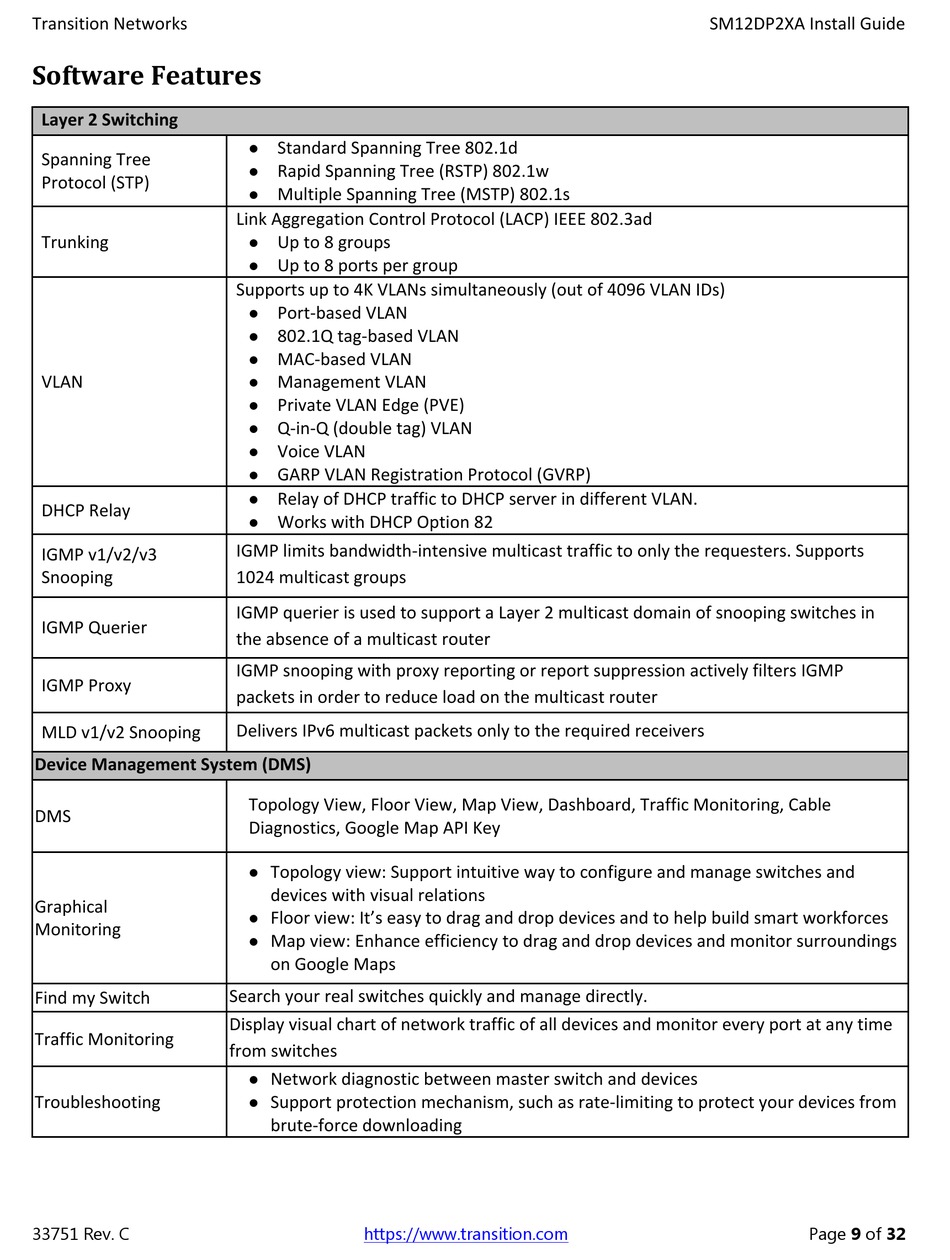

Software Features
Layer 2 Switching
Spanning Tree
Protocol (STP)
Trunking
VLAN
DHCP Relay
IGMP v1/v2/v3
Snooping
IGMP Querier
IGMP Proxy
MLD v1/v2 Snooping
Device Management System (DMS)
DMS
Graphical
Monitoring
Find my Switch
Traffic Monitoring
Troubleshooting
33751 Rev. C
Standard Spanning Tree 802.1d

Rapid Spanning Tree (RSTP) 802.1w

Multiple Spanning Tree (MSTP) 802.1s

Link Aggregation Control Protocol (LACP) IEEE 802.3ad
Up to 8 groups

Up to 8 ports per group

Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
Port‐based VLAN

802.1Q tag‐based VLAN

MAC‐based VLAN

Management VLAN

Private VLAN Edge (PVE)

Q‐in‐Q (double tag) VLAN

Voice VLAN

GARP VLAN Registration Protocol (GVRP)

Relay of DHCP traffic to DHCP server in different VLAN.

Works with DHCP Option 82

IGMP limits bandwidth‐intensive multicast traffic to only the requesters. Supports
1024 multicast groups
IGMP querier is used to support a Layer 2 multicast domain of snooping switches in
the absence of a multicast router
IGMP snooping with proxy reporting or report suppression actively filters IGMP
packets in order to reduce load on the multicast router
Delivers IPv6 multicast packets only to the required receivers
Topology View, Floor View, Map View, Dashboard, Traffic Monitoring, Cable
Diagnostics, Google Map API Key
Topology view: Support intuitive way to configure and manage switches and

devices with visual relations
Floor view: It's easy to drag and drop devices and to help build smart workforces

Map view: Enhance efficiency to drag and drop devices and monitor surroundings

on Google Maps
Search your real switches quickly and manage directly.
Display visual chart of network traffic of all devices and monitor every port at any time
from switches
Network diagnostic between master switch and devices

Support protection mechanism, such as rate‐limiting to protect your devices from

brute‐force downloading
