SM12DP2XA Managed Gigabit Ethernet Fiber Switch Quick Start Guide
The SM12DP2XA L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and
additional 10GbE uplink connections. Advanced L3 features such as Static Route deliver better cost performance
and lower total cost of ownership in Enterprise networks or backbone via fibber or copper connections.
The SM12DP2XA provides 12 GbE SFP ports, 2 RJ45 ports, 2 10GbE SFP+ ports and RJ45 Console port with built-in
AC and DC dual power supplies. SM12DP2XA provides front access to all data and management ports in a
compact form factor that facilitates desktop, wall-mount, or rack-mount installations.
See the Install Guide for important Cautions and Warnings, Compliance and Safety Statements, Key Features,
Specifications, Front Panel, Site Preparation, Installation, Cabling, Unpacking, Mounting, Connecting to Power,
Initial Switch Configuration, and Troubleshooting, Warranty, Support and Compliance information.
: 1. Carefully unpack all SM12DP2XA contents. 2. Verify receipt of all SM12DP2XA components.

Unpacking

Contact your sales representative if any items are missing. 3. Place the SM12DP2XA and related materials near
the install location. 4. Save the SM12DP2XA shipping carton and packing materials for possible future use.

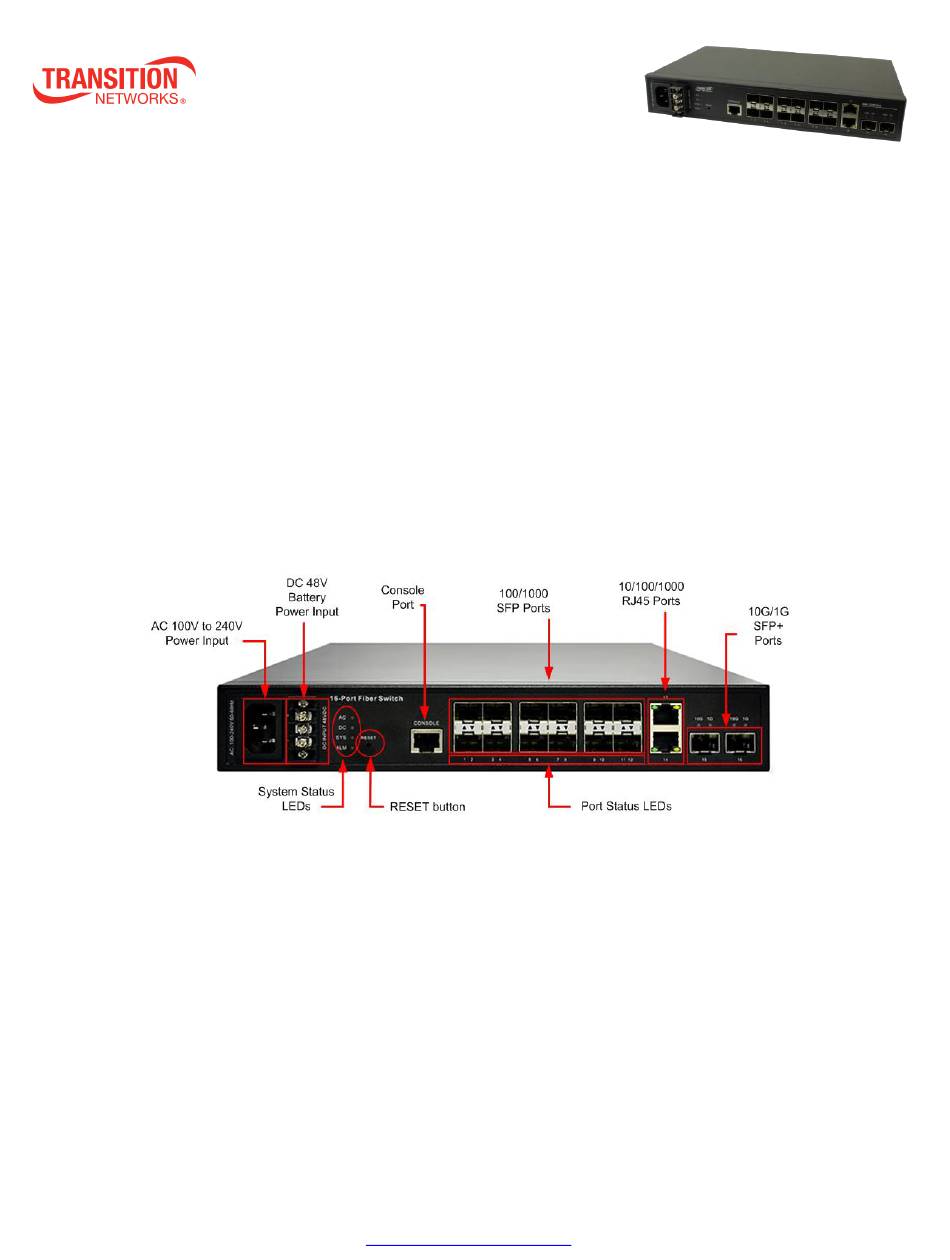

: The switch front panel contains the power inputs, ports, LEDs and RESET button.

Front Panel

Ports: The switch contains 10/100/1000BASE-T RJ-45 ports. All RJ-45 ports support automatic
1000BASE-T
MDI/MDI-X operation, auto-negotiation and IEEE 802.3x auto-negotiation of flow control, so the optimum data
rate and transmission can be selected automatically.
Slots: The switch supports Small Form Factor Pluggable (SFP) transceiver slots port 1 to
SFP and SFP+ Transceiver
port 12, and port 15 to port 16 are 10G SFP+. In the default configuration, if an SFP transceiver (purchased
separately) is installed in a slot and has a valid link on the port, the associated RJ-45 port is disabled. The optional
Gigabit SFP transceiver can be used for a backbone connection between switches, or for connecting to a
high-speed server. See the specific SFP manual for important cautions and warnings.
Port: The switch has one RJ-45 CONSOLE port for CLI access via the provided RS232 DB9 to RJ45 Cable.
CONSOLE
Note: Cross-over cabling to the Console port is not supported.
LEDs: The switch includes a LED panel for system and port indications that simplify installation and
Front Panel
network troubleshooting. See the Install Guide for Port Status LED and System Status LED details.
