Pin out – main I/O connector
Signal name
GND
FIRSTPORTC Bit 0
FIRSTPORTC Bit 2
FIRSTPORTC Bit 4
FIRSTPORTC Bit 6
FIRSTPORTB Bit 0
FIRSTPORTB Bit 2
FIRSTPORTB Bit 4
FIRSTPORTB Bit 6
FIRSTPORTA Bit 0
FIRSTPORTA Bit 2
FIRSTPORTA Bit 4
FIRSTPORTA Bit 6
SECONDPORTC Bit 0
SECONDPORTC Bit 2
SECONDPORTC Bit 4
SECONDPORTC Bit 6
SECONDPORTB Bit 0
SECONDPORTB Bit 2
SECONDPORTB Bit 4
SECONDPORTB Bit 6
SECONDPORTA Bit 0
SECONDPORTA Bit 2
SECONDPORTA Bit 4
SECONDPORTA Bit 6
Cabling
2
50
50-pin Female
IDC Connector

Field wiring and signal termination accessories

You can use the following screw terminal boards to terminate field signals and route them into the PCI-
DIO48H using the C100FF-x cable.
CIO-MINI50 – 50-pin screw terminal board. Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258.
CIO-TERM100 – 100-pin screw terminal board (Two 50-pin IDC connectors). Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=281.
CIO-SPADE50 — 16" X 4" termination panel which mates with both 37-pin and 50-pin connectors.
Details on this product are available on our web site at www.mccdaq.com/pdfs/screw.pdf.
SCB-50 – 50 conductor, shielded signal connection/screw terminal box provides two independent
50-pin connections. Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1168.
Table 2-2. Main I/O connector pin out
Pin
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
↓
PCI slot
1
49

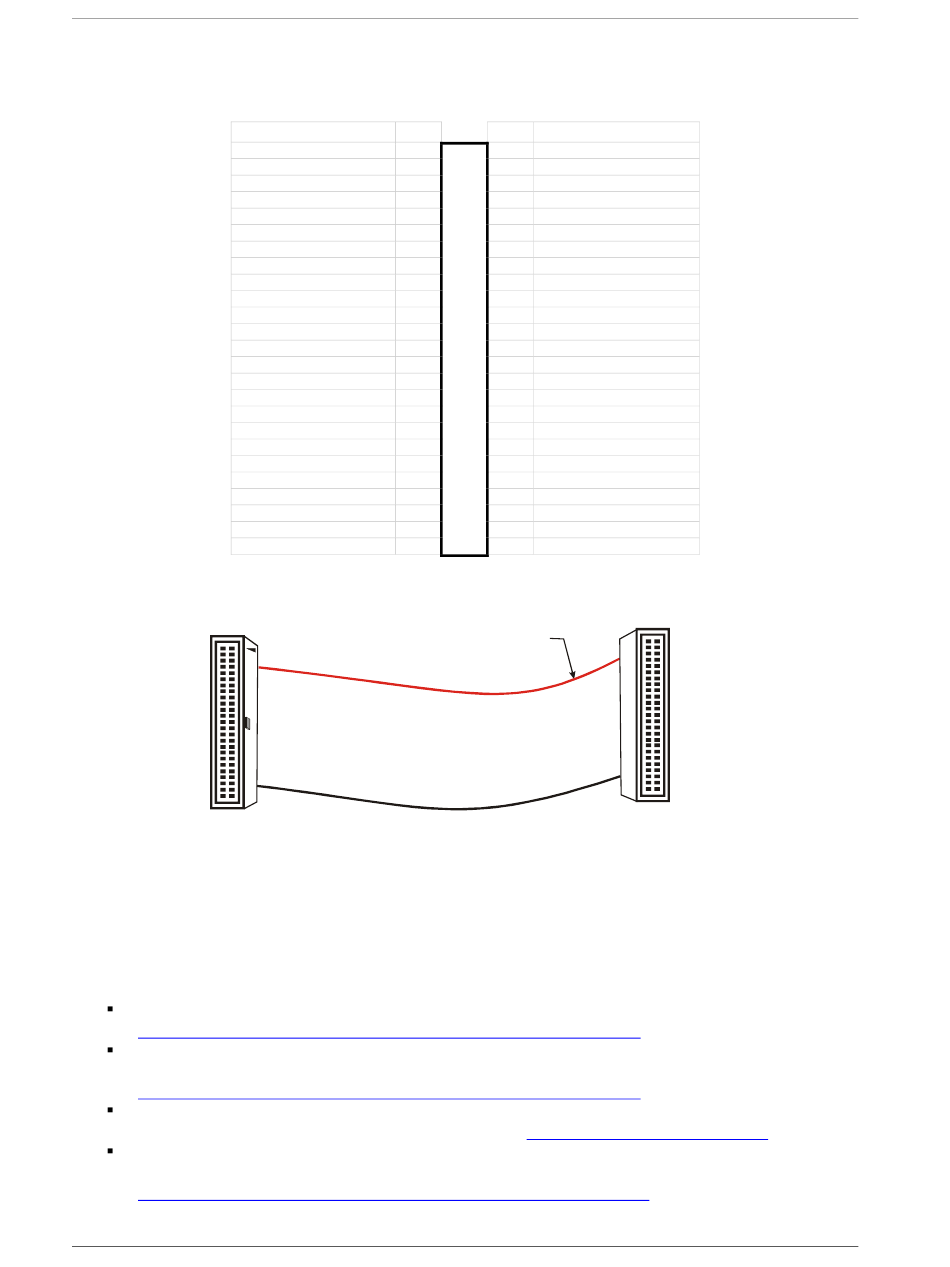

Figure 2-1. C50FF-x cable
Pin Signal name
• • 49 +5V
• •
47 FIRSTPORTC Bit 1
• • 45 FIRSTPORTC Bit 3
• •
43 FIRSTPORTC Bit 5
• • 41 FIRSTPORTC Bit 7
• •
39 FIRSTPORTB Bit 1
• • 37 FIRSTPORTB Bit 3
• •
35 FIRSTPORTB Bit 5
• • 33 FIRSTPORTB Bit 7
• • 31 FIRSTPORTA Bit 1
• • 29 FIRSTPORTA Bit 3
• •
27 FIRSTPORTA Bit 5
• • 25 FIRSTPORTA Bit 7
• •
23 SECONDPORTC Bit 1
• • 21 SECONDPORTC Bit 3
• • 19 SECONDPORTC Bit 5
• • 17 SECONDPORTC Bit 7
• • 15 SECONDPORTB Bit 1
• • 13 SECONDPORTB Bit 3
• •
11 SECONDPORTB Bit 5
• • 9 SECONDPORTB Bit 7
• • 7 SECONDPORTA Bit 1
• • 5 SECONDPORTA Bit 3
• • 3 SECONDPORTA Bit 5
• • 1 SECONDPORTA Bit 7
The red stripe
2
identifies pin # 1
50
50-pin Female
IDC connector
2-4
