[Hz], and only if the frequency converter carries
out a stop command.
If the frequency converter is in alarm mode or in an over-
voltage situation, the mechanical brake immediately cuts
in.
In the vertical movement, the key point is that the load
must be held, stopped, controlled (raised, lowered) in a
safe mode during the entire operation. Because the
frequency converter is not a safety device, the crane/lift
designer (OEM) must decide on the type and number of
safety devices (e.g. speed switch, emergency brakes etc.) to
be used, in order to be able to stop the load in case of
emergency or malfunction of the system, according to
relevant national crane/lift regulations.
L1 L2 L3
Drive
U V W
Mechanical
Brake
Shaft
Motor

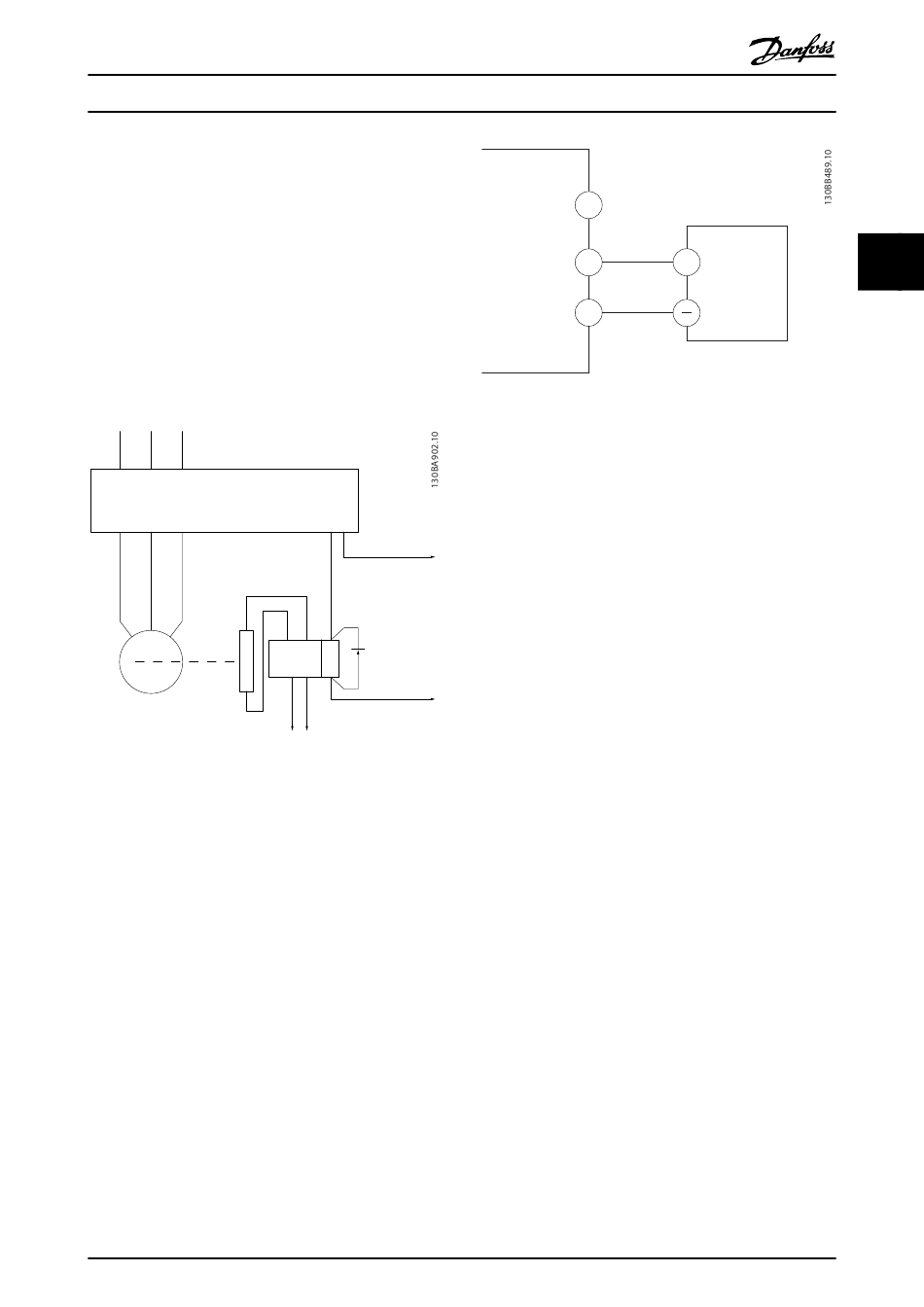

Illustration 2.21 Connecting the Mechanical Brake to the
Frequency Converter

2.4.6 Serial Communication

Connect RS-485 serial communication wiring to terminals
(+)68 and (-)69.
•
Screened serial communication cable is
recommended
•
See 2.4.2 Earth (Grounding) Requirements for
proper grounding
