SMC Networks ProtoCessor FPC-ED2 Startup Manual page 26

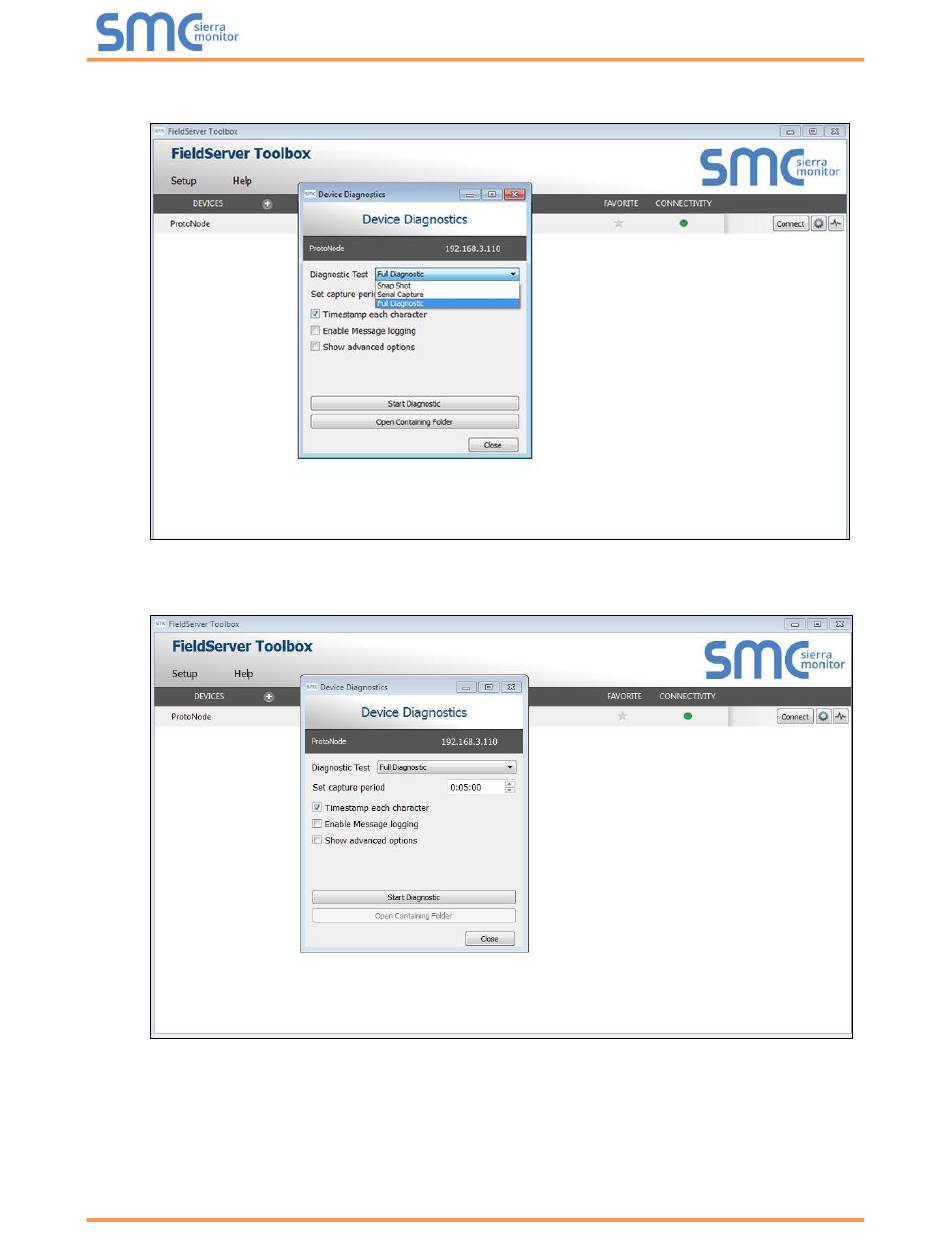

Ensure "Full Diagnostic" is selected (this is the default)
o
NOTE: If desired, the default capture period can be changed.
Click on "Start Diagnostic"
o
When the capture period is finished, the "Diagnostic Test Complete" window will appear
o
Leonard Valve ProtoCessor Start-up Guide
Page 26 of 32
