5.3

Select Field Protocol

•
On the Web Configurator page, the first configuration parameter is the Protocol Selector.

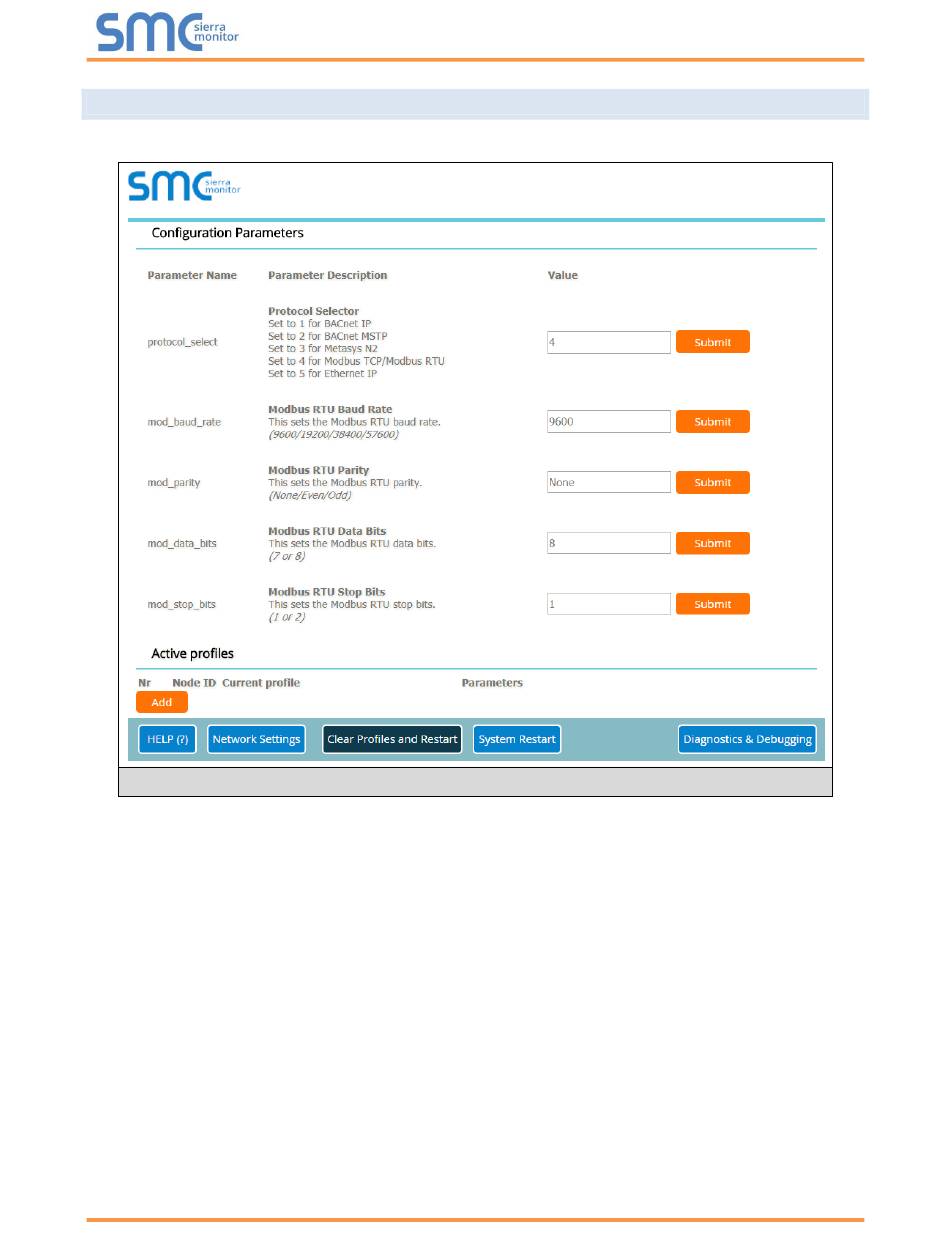

Figure 12: Web Configurator Showing Protocol Selector Parameter

•
Select the field protocol desired, using the number key under the Parameter Description header,
and click the Submit button.
o
A message will appear at the top of the screen stating that the update was completed and to
restart the system.
•
Click the System Restart button on the bottom of the screen and wait for the system to reset.
