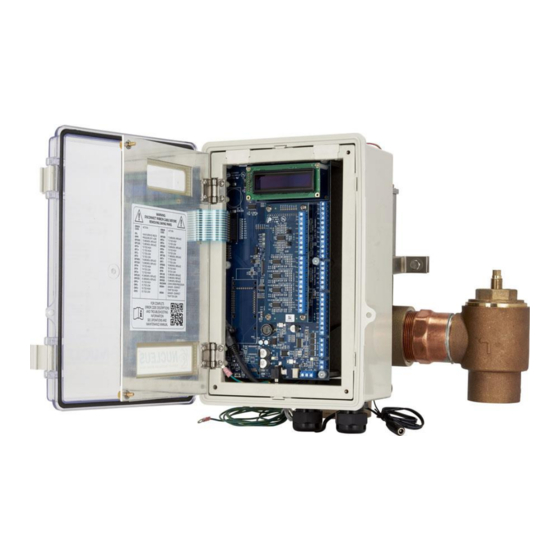

BULLETIN NUC-PSUG-1
ProtoCessor FPC-ED2
Start-up Guide
For Interfacing Leonard Valve Products: Valve
To Building Automation Systems:
BACnet MS/TP, BACnet/IP, Modbus TCP/IP, Modbus RTU,
Metasys N2 and EtherNet/IP
APPLICABILITY & EFFECTIVITY
Explains ProtoCessor hardware and how to install it.
The instructions are effective for the above as of November 2017.
Document Revision: 2.A
Web Configurator
Template Revision: 69

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProtoCessor FPC-ED2 and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks ProtoCessor FPC-ED2

Summary of Contents for SMC Networks ProtoCessor FPC-ED2

  • Page 1 BULLETIN NUC-PSUG-1 ProtoCessor FPC-ED2 Start-up Guide For Interfacing Leonard Valve Products: Valve To Building Automation Systems: BACnet MS/TP, BACnet/IP, Modbus TCP/IP, Modbus RTU, Metasys N2 and EtherNet/IP APPLICABILITY & EFFECTIVITY Explains ProtoCessor hardware and how to install it. The instructions are effective for the above as of November 2017.
  • Page 2 Leonard Valve ProtoCessor Start-up Guide Technical Support Thank you for purchasing the ProtoCessor for Leonard Valve. Please call Leonard Valve for Technical support of the ProtoCessor product. Sierra Monitor Corporation does not provide direct support. If Leonard Valve needs to escalate the concern, they will contact Sierra Monitor Corporation for assistance.
  • Page 3 2. Set the COM settings for the device connected to ProtoCessor. (Section 3.3) 3. Connect ProtoCessor FPC-ED2’s 3 pin RS-485 port to the Field Protocol cabling. (Section 4.2) 4. Use a browser to access the ProtoCessor’s embedded tool, which is referred to in this manual as the Web Configurator, to select the device that will be attached to ProtoCessor.

  • Page 4: Table Of Contents

    Input COM Settings on the Device Connected to the ProtoCessor .......... 8 Interfacing ProtoCessor to Devices ....................9 ProtoCessor FPC-ED2 Showing Connection Ports ............9 BACnet MS/TP, Modbus RTU, Metas ys N2: W iring Field Port to RS -485 Network . 10 Use ProtoCessor Web Configurator to Setup the Gateway ............
  • Page 5 Figure 2: Supported Point Count Capacity ....................8 Figure 3: Registers per Device ........................8 Figure 4: COM Settings ..........................8 Figure 5: ProtoCessor FPC-ED2 ........................9 Figure 6: Connection from ProtoCessor to RS-485 Field Network ............. 10 Figure 7: RS-485 BMS Network EOL Switch ....................10 Figure 8: Web App Splash Page .........................

  • Page 6: Certifications

    Leonard Valve ProtoCessor Start-up Guide CERTIFICATIONS BTL Mark – BACnet ® 1 Testing Laboratory The BTL Mark on ProtoCessor is a symbol that indicates that a product has passed a series of rigorous tests conducted by an independent laboratory which verifies that the product correctly implements the BACnet features claimed in the listing.

  • Page 7: Introduction

    Leonard Valve ProtoCessor Start-up Guide INTRODUCTION ProtoCessor Gateway The ProtoCessor is an embedded module that is designed into Leonard Valve’s product (hereafter called “device”) and is preconfigured to support BACnet MS/TP, BACnet/IP, Metasys ®2 N2 by JCI, Modbus TCP/IP, Modbus RTU or EtherNet/IP. It is not necessary to download any configuration files to support the required applications.

  • Page 8: Setup For Protocessor

    Each ProtoCessor has a unique part number located on the side or the back of the unit. This number should be recorded, as it may be required for technical support. The numbers are as follows: Model Part Number ProtoCessor FPC-ED2 FPC-ED2-1145 Figure 1: ProtoCessor Part Numbers • FPC-ED2 units have the following 2 ports: RS-485 + Ethernet...

  • Page 9: Interfacing Protocessor To Devices

    Leonard Valve ProtoCessor Start-up Guide INTERFACING PROTOCESSOR TO DEVICES ProtoCessor FPC-ED2 Showing Connection Ports Figure 5: ProtoCessor FPC-ED2 Page 9 of 32...

  • Page 10: Bacnet Ms/Tp, Modbus Rtu, Metasys N2: Wiring Field Port To Rs-485 Network

    Leonard Valve ProtoCessor Start-up Guide BACnet MS/TP, Modbus RTU, Metasys N2: Wiring Field Port to RS-485 Network • Connect the BACnet MS/TP, Modbus RTU or Metasys N2 RS-485 network wires to the 3-pin RS- 485 connector on ProtoCessor ED2 as shown below in Figure Use standard grounding principles for RS-485 GND •...

  • Page 11: Use Protocessor Web Configurator To Setup The Gateway

    Leonard Valve ProtoCessor Start-up Guide USE PROTOCESSOR WEB CONFIGURATOR TO SETUP THE GATEWAY Connect the PC to ProtoCessor via the Ethernet Port • Connect a CAT5 Ethernet cable (Straight through or Cross-Over) between the local PC and ProtoCessor. • The Default IP Address of ProtoCessor is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and ProtoCessor are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx network.

  • Page 12: Connecting To Protocessor Web Configurator

    Leonard Valve ProtoCessor Start-up Guide Connecting to ProtoCessor Web Configurator After setting a local PC on the same subnet as the ProtoCessor (Section 5.1), open a web browser on the PC and enter the IP Address of the ProtoCessor; the default address is 192.168.1.24. NOTE: If the IP Address of the ProtoCessor has been changed by previous configuration, the assigned IP Address can be discovered using the FS Toolbox utility.

  • Page 13: Figure 10: Web App Landing Page

    Leonard Valve ProtoCessor Start-up Guide • From the Web App landing page (Figure 10), click the Configure tab. Figure 10: Web App Landing Page • Then click the Profiles Configuration button to go to the Web Configurator page. Figure 11: Configuration Tab NOTE: The FieldPoP™...

  • Page 14: Select Field Protocol

    Leonard Valve ProtoCessor Start-up Guide Select Field Protocol • On the Web Configurator page, the first configuration parameter is the Protocol Selector. Figure 12: Web Configurator Showing Protocol Selector Parameter • Select the field protocol desired, using the number key under the Parameter Description header, and click the Submit button.

  • Page 15: Devices Connected To Protocessor

    Leonard Valve ProtoCessor Start-up Guide Devices Connected to ProtoCessor NOTE: If Modbus TCP/IP was selected for the Field/BMS protocol, skip this section. Device profiles are NOT used for Modbus TCP/IP. • In the Web Configurator, the Active Profiles section is shown on the lower left side of the screen. •...

  • Page 16: Figure 14: Web Configurator Showing Active Profile Additions

    Leonard Valve ProtoCessor Start-up Guide • For every device that is added, assign a unique Modbus Node-ID. This specification must match the device’s network settings. • Once the Profile for the device has been selected from the drop-down list, enter the value of the device’s Node-ID.

  • Page 17: Ethernet Network: Setting Ip Address For Field Network

    Leonard Valve ProtoCessor Start-up Guide Ethernet Network: Setting IP Address for Field Network • After setting a local PC to the same subnet as the ProtoCessor (Section 5.1), open a web browser on the PC and enter the IP Address of the ProtoCessor; the default address is 192.168.1.24.

  • Page 18: Figure 16: Changing Ip Address Via Fs-Gui

    Leonard Valve ProtoCessor Start-up Guide • From the FS-GUI landing page, click on “Setup” to expand the navigation tree and then select “Network Settings” to access the IP Settings menu. (Figure Figure 16: Changing IP Address via FS-GUI • Modify the IP Address (N1 IP Address field) of the ProtoCessor Ethernet port. •...

  • Page 19: How To Start The Installation Over: Clearing Profiles

    Leonard Valve ProtoCessor Start-up Guide HOW TO START THE INSTALLATION OVER: CLEARING PROFILES • After setting a local PC to the same subnet as the ProtoCessor (Section 5.1), open a web browser on the PC and enter the IP Address of the ProtoCessor; the default address is 192.168.1.24.

  • Page 20: Bacnet Explorer Ng

    Leonard Valve ProtoCessor Start-up Guide BACNET EXPLORER NG A typical working example of a BACnet Explorer NG on a BACnet Network: BACnet Explorer NG BACnet MS/TP PC Connected to BACnet Router BACnet Explorer’s Web Browser BACnet/IP BACnet/IP Multi-Port Switch Figure 17: BACnet Explorer NG on a BACnet Network For additional details related to the BACnet Explorer NG, go to the Sierra Monitor website’s Resource Center...

  • Page 21: Appendix A. Troubleshooting

    Leonard Valve ProtoCessor Start-up Guide Appendix A. Troubleshooting Lost or Incorrect IP Address • Ensure that FieldServer Toolbox is loaded onto the local PC. Otherwise, download the FieldServer-Toolbox.zip via the Sierra Monitor Resource Center Software Downloads. • Extract the executable file and complete the installation. Ethernet Port Figure 18: Ethernet Port Location •...

  • Page 22: Viewing Diagnostic Information

    Leonard Valve ProtoCessor Start-up Guide Viewing Diagnostic Information • Type the IP Address of the ProtoCessor into the web browser or use the FieldServer Toolbox to connect to the ProtoCessor. • Click on Diagnostics and Debugging Button, then click on view, and then on connections. •...

  • Page 23: Check Wiring And Settings

    Leonard Valve ProtoCessor Start-up Guide Check Wiring and Settings • No COMS on PSP side. If the Tx/Rx LEDs are not flashing rapidly then there is a COM issue. To fix, check the following: Visual observations of LEDs on ProtoCessor (Appendix A.4) Check baud rate, parity, data bits, stop bits...

  • Page 24: Led Diagnostics For Communications Between Protocessor And Device

    Leonard Valve ProtoCessor Start-up Guide LED Diagnostics for Communications Between ProtoCessor and Device Please see the diagram below for ProtoCessor FPC-ED2 LED Locations. Description The Run LED will start flashing 20 seconds after power indicating normal operation. The Heat Beat LED has the same functionality but flashes more rapidly.

  • Page 25: Take Diagnostic Capture With The Fieldserver Toolbox

    Leonard Valve ProtoCessor Start-up Guide Take Diagnostic Capture with the FieldServer Toolbox • Once the Diagnostic Capture is complete, email it to info@leonardvalve.com. The Diagnostic Capture will accelerate diagnosis of the problem. • Ensure that FieldServer Toolbox is loaded onto the local PC. Otherwise, download the FieldServer-Toolbox.zip via the Sierra Monitor Resource Center Software Downloads.
  • Page 26 Leonard Valve ProtoCessor Start-up Guide Ensure “Full Diagnostic" is selected (this is the default) NOTE: If desired, the default capture period can be changed. Click on “Start Diagnostic” When the capture period is finished, the “Diagnostic Test Complete” window will appear Page 26 of 32...
  • Page 27 Leonard Valve ProtoCessor Start-up Guide • Step 2: Send Log Once the diagnostic test is complete, a .zip file is saved on the PC Choose “Open” to launch explorer and have it point directly at the correct folder Send the Diagnostic zip file to info@leonardvalve.com Page 27 of 32...

  • Page 28: Update Firmware

    Leonard Valve ProtoCessor Start-up Guide Update Firmware To load a new version of the firmware, follow these instructions: 1. Extract and save the new file onto the local PC. 2. Open a web browser and type the IP Address of the FieldServer in the address bar. Default IP Address is 192.168.1.24 Use the FS Toolbox utility if the IP Address is unknown (Appendix...

  • Page 29: Securing Protocessor With Passwords

    Leonard Valve ProtoCessor Start-up Guide Securing ProtoCessor with Passwords Access to the ProtoCessor can be restricted by enabling a password. There are 2 access levels defined by 2 account names: Admin and User. • The Admin account has unrestricted access to the ProtoCessor. •...

  • Page 30: Appendix B. Vendor Information - Leonard Valve

    Leonard Valve ProtoCessor Start-up Guide Appendix B. Vendor Information – Leonard Valve NOTE: All Modbus TCP/IP registers are the same as the Modbus RTU registers for the serial device. If this point list is needed, contact the OEM. The Modbus TCP/IP node address of the device is also the same as the Modbus RTU node address.

  • Page 31: Appendix C. Reference

    Leonard Valve ProtoCessor Start-up Guide Appendix C. Reference Specifications ProtoCessor FPC-ED2 One 3-pin Phoenix connector with RS-485 port (+ / - / gnd) Electrical Connections One Ethernet 10/100 BaseT port CE Certified; TUV approved to UL 916, EN 60950-1, EN 50491-3 and CSA C22-2 standards; FCC Class A Part 15;...

  • Page 32: Appendix D. Limited 2 Year Warranty

    Leonard Valve ProtoCessor Start-up Guide Appendix D. Limited 2 Year Warranty Sierra Monitor Corporation warrants its products to be free from defects in workmanship or material under normal use and service for two years after date of shipment. Sierra Monitor Corporation will repair or replace any equipment found to be defective during the warranty period.
