From the FS-GUI landing page, click on "Setup" to expand the navigation tree and then select
"Network Settings" to access the IP Settings menu.
•
Modify the IP Address (N1 IP Address field) of the ProtoCessor Ethernet port.
•
If necessary, change the Netmask (N1 Netmask field).
•
If necessary, change the IP Gateway (Default Gateway field).
NOTE: If the ProtoCessor is connected to a managed switch/router, the IP Gateway of the
ProtoCessor should be set to the IP Address of that managed switch/router.
•
Click the "System Restart" button at the bottom of the page to apply changes and restart the
ProtoCessor.
•
Unplug Ethernet cable from PC and connect it to the network switch or router.
•
Record the IP Address assigned to the ProtoCessor for future reference.
Leonard Valve ProtoCessor Start-up Guide
(Figure

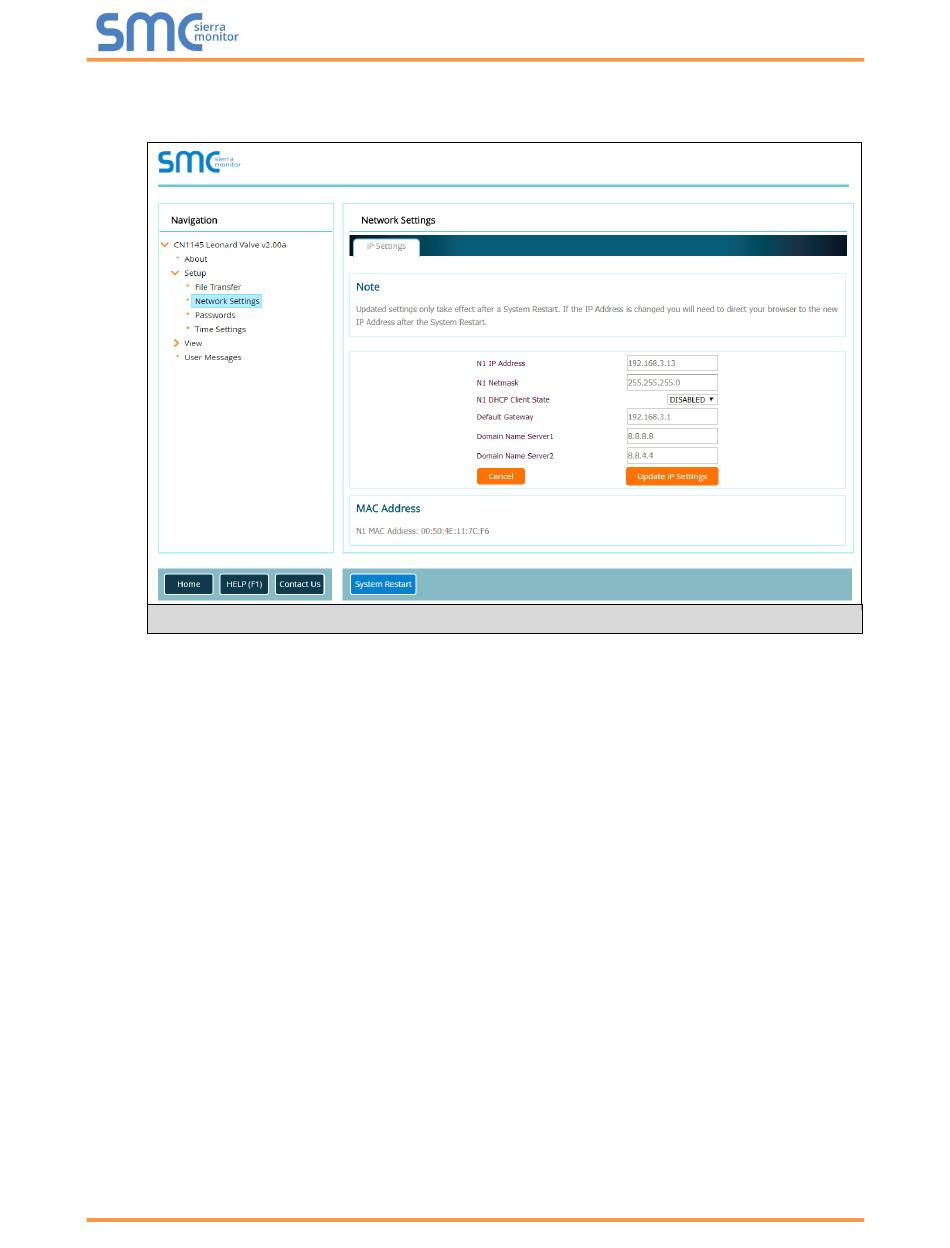

Figure 16: Changing IP Address via FS-GUI
