3.2.5

DeviceNet Connector

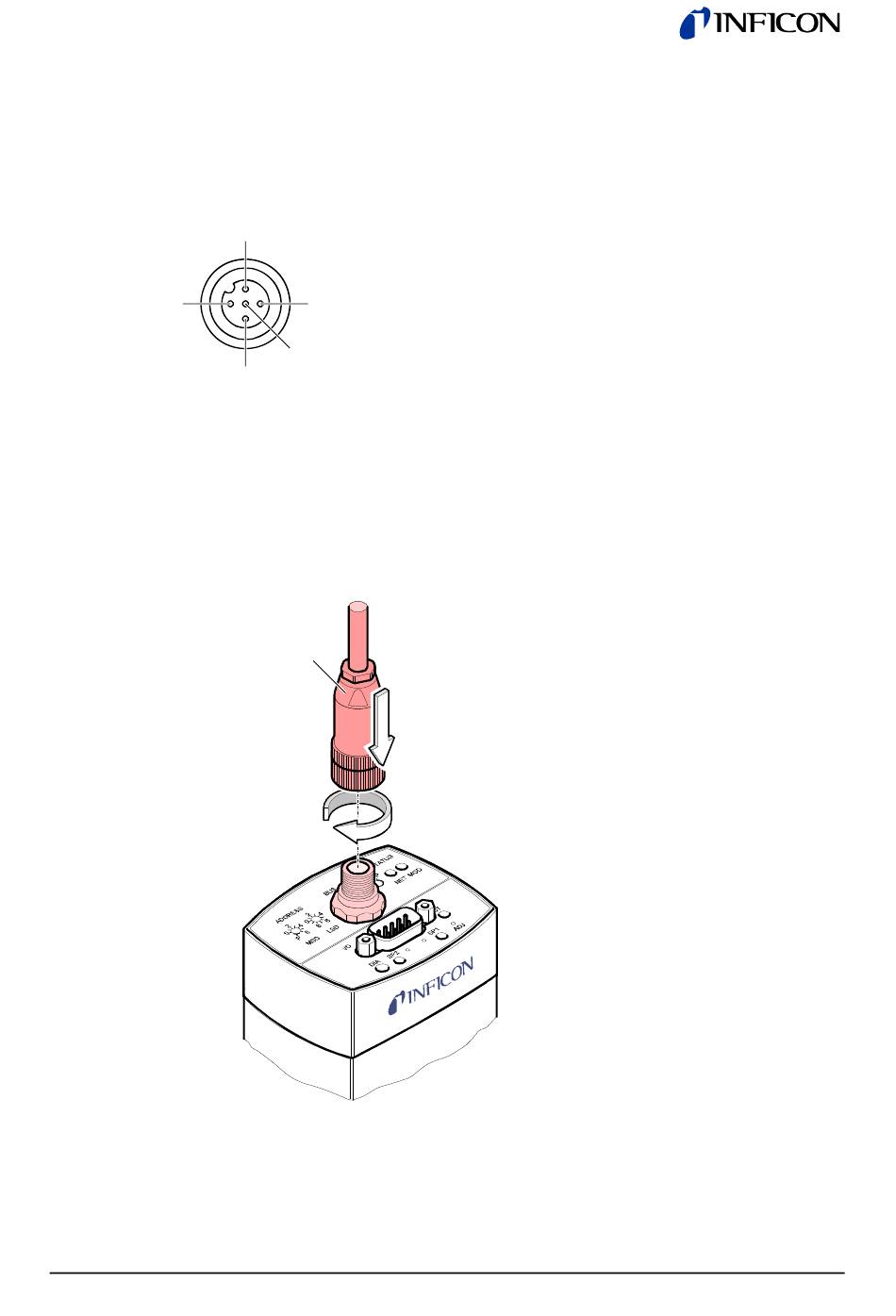

If no DeviceNet cable is available, make one according to the
following diagram. Connect the DeviceNet cable.
2
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
DeviceNet cable
32
1
Micro-Style, 5-pin, (DeviceNet), female,
4
soldering side
5
3
Drain
Supply
Supply common
CAN_H
CAN_L
+15 ... +30 VDC
GND
