Summary of Contents for Inficon PBR260

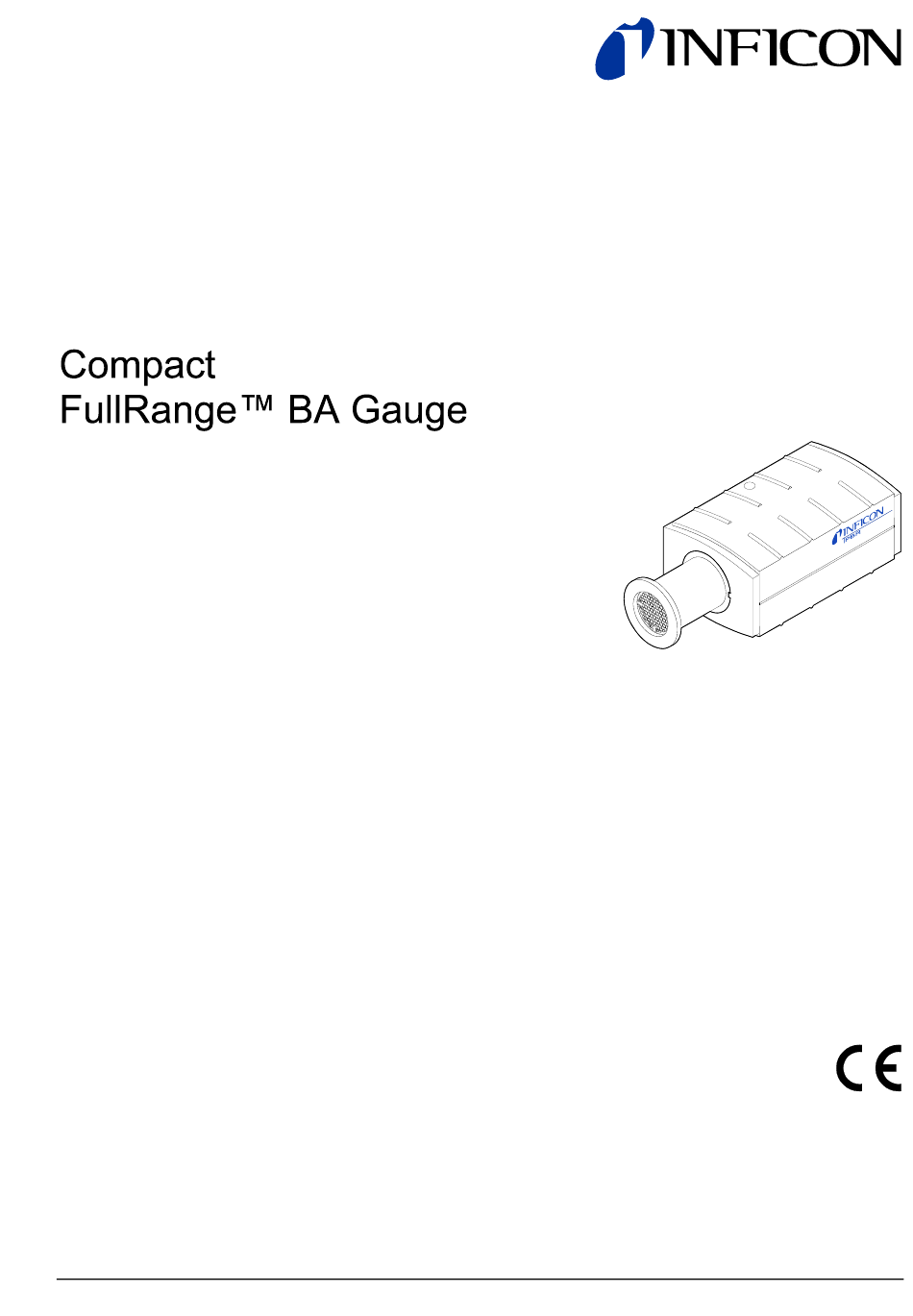

  • Page 1 Operating Manual PBR260 IG 803 171 BE (0109)
  • Page 2: Product Identification

    5×10 ... 1000 mbar. The PBR260 is part of the Inficon Compact Gauge family and can be operated in connection with the SingleGauge, DualGauge or MaxiGauge™ measurement and control unit or with another evaluation unit.
  • Page 3: Table Of Contents

    Appendix Relationship measuring signal – pressure Gas type dependence Declaration of contamination For cross-references within this document, the symbol (→ XY) is used, for cross- references to other documents, the symbol (→  [Z]). IG 803 171 BE (0109) PBR260...
  • Page 4: Safety

    Before beginning to work, find out whether any vacuum components are con- taminated. Adhere to the relevant regulations and take the necessary pre- cautions when handling contaminated parts. Communicate the safety instructions to other users. IG 803 171 BE (0109) PBR260...
  • Page 5: Liability And Warranty

    1.4 Liability and warranty Inficon assumes no liability and the warranty becomes null and void if the end-user or third parties • disregard the information in this document • use the product in a non-conforming manner • make any kind of changes (modifications, alterations etc.) to the product •...
  • Page 6: Technical Data

    0 V / 24 V, PLC level, high active Duration max. 3 min., followed by automatic stop In degas mode, the PBR260 keeps supplying measurement values the tolerances of which can be higher than during normal operation. Output signal Output signal 0 …...
  • Page 7 DN 40 ISO-KF DN 40 CF-R ≤34 cm Pressure max. 2 bar (absolute) Inficon controllers fulfills these requirements. The minimum voltage of the power supply must be increased proportionally to the length of the sensor cable. IG 803 171 BE (0109)
  • Page 8 2000 m NN Type of protection IP 30 Dimensions Flange DN 25 ISO-KF Dimensions [mm] DN 25 KF Weight 285 g Flange DN 40 ISO-KF Dimensions [mm] DN 40 KF Weight 315 g IG 803 171 BE (0109) PBR260...
  • Page 9 Flange DN 40 CF-R Dimensions [mm] DN 40 CF-R Weight 550 g IG 803 171 BE (0109) PBR260...
  • Page 10: Installation

    The gauge is supplied with a built in grid. For potentially severely contaminating applications and to protect the electrodes against light and fast particles installation of the optional baffle (→ 27) is recommended (→ 23). IG 803 171 BE (0109) PBR260...
  • Page 11 Remove the protective cap. The protective cap will be needed for main- tenance.  Make the flange connection. Install the gauge in such a way that it need not be removed for adjustment (→ 18, 20). IG 803 171 BE (0109) PBR260...
  • Page 12: Removing And Installing The Electronics Unit

    Place the electronics unit on the sensor (3) (be careful to correctly position the pins and the guide notch (4)). b) Slide the electronics unit up to the mechanical stop and lock it with the hexagon socket screw (1). IG 803 171 BE (0109) PBR260...
  • Page 13: Mounting The Extension

    Slide the electronics unit (2) onto the extension until the mechanical stop is reached (be careful to correctly position the pins and the guide notch (4a)). e) Secure the electronics unit (2) with the hexagon socket screw (1). IG 803 171 BE (0109) PBR260...
  • Page 14: Power Connection

    WARNING The supply common (pin 5) and the shield (pin 6) must be connected at the supply unit with protective ground. Incorrect connection, incorrect polarity or inadmissible supply voltages can damage the gauge. IG 803 171 BE (0109) PBR260...
  • Page 15 At the other end of the cable, mount a connector which is compatible with your evaluation unit. ‘ Plug in the connector. Secure the connector on the gauge with the screw. ’ Connect the other end of the cable to your evaluation unit. IG 803 171 BE (0109) PBR260...
  • Page 16: Operation

    Allow for a stabilizing time of approx. 10 min. Once the gauge has been switched on, permanently leave it on irrespective of the pressure. 4.1 Measuring principle, The PBR260 consists of two separate measuring systems (hot cathode Bayard Alpert (BA) and Pirani). measuring behavior...
  • Page 17 Fig. 2 The bridge voltage U is a measure for the gas pressure and is further processed electronically (linearization, digitizing). Measurement range The PBR260 covers the measurement range 5×10 mbar … 1000 mbar. • The Pirani constantly monitors the pressure. •...
  • Page 18 Defining the switching on/off The PBR260 has two definable switching on/off ranges with their corresponding range overlapping ranges. The switching on/off range is selected with the <P ↔ BA> switch and should be chosen in such a way that it is situated outside the process pressure range.
  • Page 19: Operational Principle Of The Gauge

    (5 mA emission current). Depending on the application, this function can be activated via a Single-, Dual- or MaxiGauge™ measurement and control unit, manually or automatically by the control system (e.g. PLC). The PBR260 automatically turns the bakeout off after 3 minutes, if the bakeout has not been stopped before.
  • Page 20: Maintenance

    30 minutes is to be expected (gauge temperature = ambient temperature).  Insert a pin through the opening marked <ATM> and push the button inside for at least 5 s. IG 803 171 BE (0109) PBR260...
  • Page 21: Cleaning The Gauge

    Always wear clean, lint-free gloves and use clean tools when working in this area. Tools / material required • Baffle (→ • Tweezers • Stick (e.g. pencil) Procedure a) Carefully remove the grid with pointed tweezers. IG 803 171 BE (0109) PBR260...
  • Page 22 Carefully place the baffle onto the sensor opening. c) With a stick carefully press the baffle down in the middle until it catches in the sensor opening. IG 803 171 BE (0109) PBR260...
  • Page 23: Replacing The Baffle

    Carefully remove the baffle with the screw driver. b) Carefully place new baffle onto the sensor opening. c) With a stick carefully press the baffle down in the middle until it catches in the sensor opening. IG 803 171 BE (0109) PBR260...
  • Page 24: Replacing The Sensor

    Replace sensor (→ (sensor faulty) Electronics unit not Check connection correctly mounted on sensor In case of an error, it may be helpful to first turn the voltage supply off and on again after 5 s. IG 803 171 BE (0109) PBR260...
  • Page 25: Deinstallation

    When handling vacuum components, take appropriate measures to ensure cleanliness and prevent damages. Procedure Œ Vent the vacuum system.  Put the gauge out of operation. Ž Unplug the connection cable.  Remove the gauge from the vacuum system. IG 803 171 BE (0109) PBR260...
  • Page 26  Place the protective cap. IG 803 171 BE (0109) PBR260...
  • Page 27: Returning The Product

    31). Products that are not clearly declared as "free of harmful substances" are de- contaminated at the expense of the customer. When returning a product to Inficon, put it in a tight and impact resistant package. 8 Options Ordering number Sensor cable for connection to Single-,Dual- or MaxiGauge™...
  • Page 28: Disposal

    Contaminated components (radioactive, toxic, caustic, or biological hazard etc.) must be decontaminated in accordance with the relevant national regulations, separated according to their materials, and recycled. Other components Such components must be separated according to their materials and recycled. IG 803 171 BE (0109) PBR260...
  • Page 29: Appendix

    1×10 5.50 1×10 7.5×10 1×10 6.25 1×10 7.5×10 1×10 7.00 1×10 7.5×10 1×10 7.75 1×10 7.5×10 1×10 8.50 1×10 7.5×10 1×10 9.25 1×10 7.5×10 1×10 10.00 1×10 7.5×10 1×10 >10.00 … 10.20 V overrange IG 803 171 BE (0109) PBR260...
  • Page 30: B: Gas Type Dependence

    These conversion factors are mean values. –2 Above 10 mbar p (mbar) (Pirani range) (mbar) Note A mixture of gases and vapors is often involved. In this case, accurate determination is only possible with a partial-pressure measuring in- strument. IG 803 171 BE (0109) PBR260...
  • Page 31: Declaration Of Contamination

    Email Name Date and legally binding signature Company stamp This form can be downloaded Copies: from our website. Original for addressee - 1 copy for accompanying documents - 1 copy for file of sender IG 803 171 BE (0109) PBR260...
