3.2.1

FCC 68, 8-pin Connector

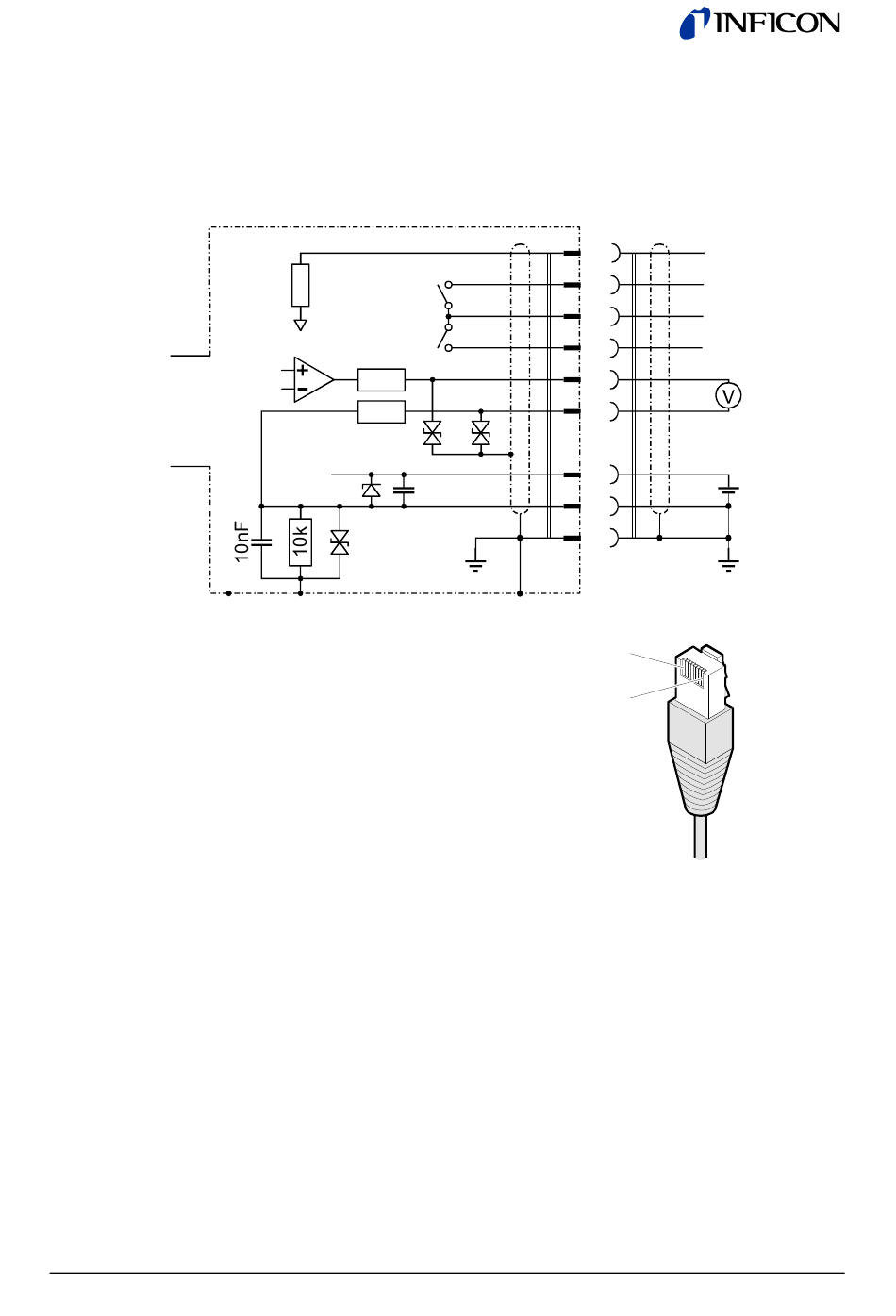

If no sensor cable is available, make one according to the
following diagram. Connect the sensor cable.
Measurement
Electrical connection
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6, 8 Relay SP2
Pin 7, 8 Relay SP1
28
Supply
4.7Ω
signal
4.7Ω
+24V
18V
Supply
Supply common, GND
Measurement signal
or threshold SP1, SP2
Gauge identification
Signal common
Common closing contact (com)
Common closing contact (com)
SP2
SP1
4
Ident
6
8
7
+
3
5 –
+
1
–
2
1
8
8-pin
FCC-68
connector
