PRODUCT DESCRIPTION

23
1. Wheel with Brakes
2. H shape metal Base
3. Column
4. Swivel arm
5. Suspension arm
6. Swivel Arm Locking Knob
7. Suspension arm movement locking knob
8. Coupling movement locking knob
9. Inclined coupling
10. Inclined coupling movement knob
11. Suspension arm hydraulic movement lock
12. Suspension arm spring tension adjustment
13. Swivel arm cover
14. Binocular head with eyepieces
6137000-795
13
4
24
6
3
2
1
Prima ENT/DNT
7
5
11
12
8
10
18
21
17
20

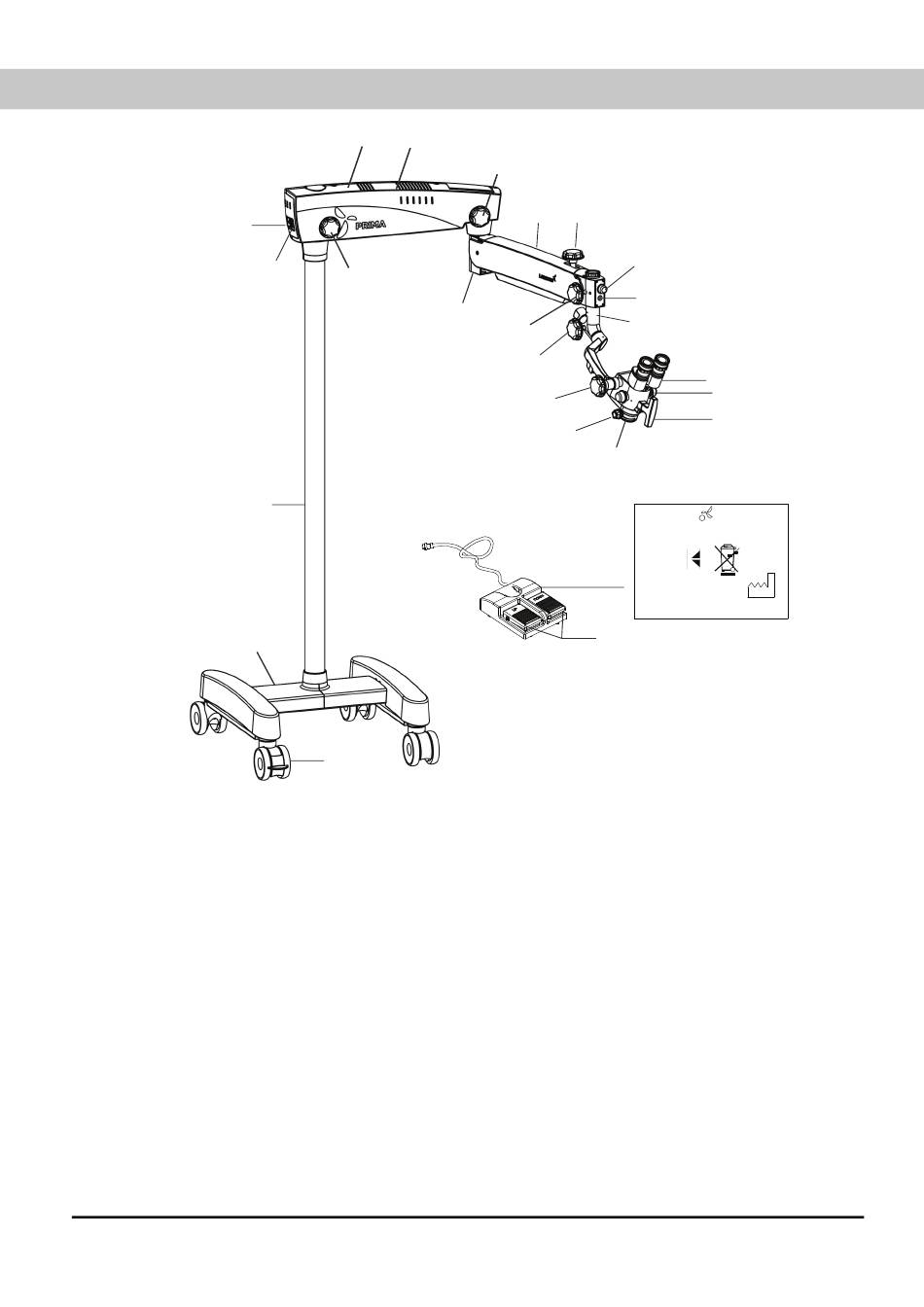

Fig. 1.1
15. Magnification changer
16. T - Handle
17. Common Main Objective
18. Magnichanger inclination movement lock
19. Illumination Control Knob
20. Foot Paddle for Z- axis
21. Fine focusing knob
22. iVu Camera inlet
23. On/Off switch
24. Power inlet
Prima ENT/DNT
Catalog no. 6137000-000
Model : Prima ENT
19
22
9
14
15
16
R
LABOMED
Part # ..................
LABO AMERICA,
I 9 N 2C 0 , . Auburn Court
Fremont CA 94538
Y
IP X6
USA
www.laboamerica.com
