12. USE OF ACCESSORIES

FLOOR MOUNT
1. Install double beam splitter by replacing the binocular tube (straight or ergo).
2. Total four accessories are provided as follows
2.1 DSLR camera adapter for Nikon, Canon and Sony
2.2 CCD camera adapter for Mintron.
2.3 Adapter for Sony Handy-Cam.
2.4 Assistoscope for assistant viewing
3. Install any one or two accessories on any side (Left or right) of the beam splitter
4. Reinstall binocular tube (straight or ergo) on double beam splitter.
20
6137000-795
EXTENDER ROTO PLATE
CMO 250 CMO 350 CMO 400
CMO Nu-Var
CCD CAMERA
ADAPTER

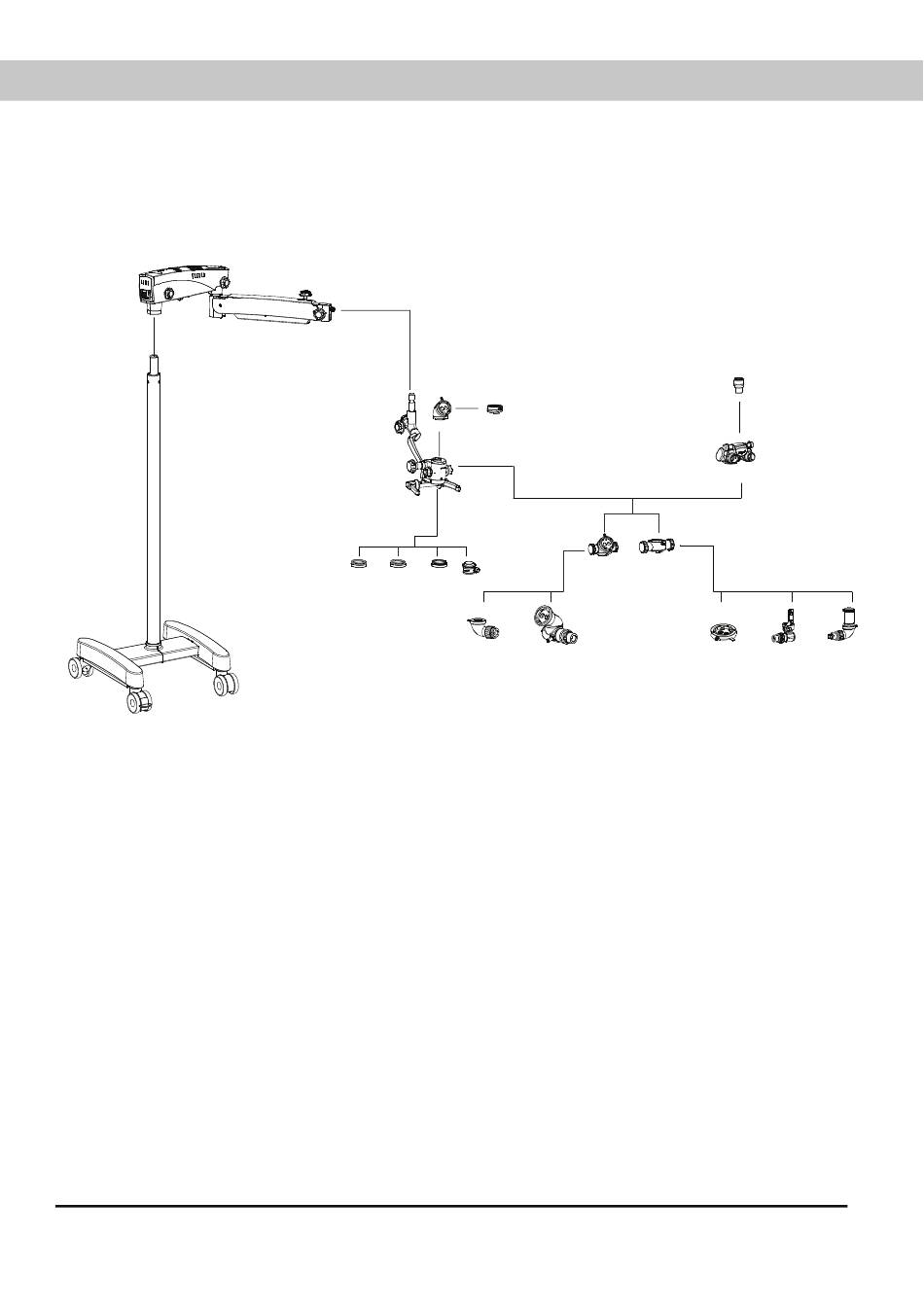

Fig. 17
Prima ENT/DNT
Part No.: 6138000-000
Model: Prima DNT
DBS
Double Iris
ASSISTOSCOPE
Issue 1.5
Printed on Feb.26,2019
Prima ENT/DNT
ERGO HEAD
DSLR CAMERA
SONY HANDY CAM
ADAPTER
ADAPTER
