9. CONTROL ELEMENTS

9.1 ON/OFF SWITCH (SHOWN AS 1 IN
FIG. 7 ABOVE)
It is located on the back of the swivel arm. At
'ON' position, green LED glows and cooling fan
starts running. Keep the intensity control knob at
Minimum level before switching on the system.
To save burning life of LED, switch OFF the
appliance if the microscope is not in use for
longer time.
9.2 INTENSITY CONTROL KNOB
It is located in front of the suspension arm shown
as (A) in Fig.-10. Brightness of field of view can be
adjusted as per user comfort using intensity control
knob.
9.3 SWIVEL ARM LOCKING KNOB
This knob helps you to lock the movement of
swivel arm at the desired position after initial
focusing of the attendance area by turning it
clockwise, knob is shown as (B) in Fig.- 10.
9.4 BRAKES
Locks the stand from unwanted movement by
pressing down the two brakes provided on caster
wheels. To unlock press upper portion of brake.
See Figure-11.
9.5 ADJUSTING TENSION ON ROTATORY
MOTION OF INCLINED CARRIER
16
6137000-795
Prima ENT/DNT
Prima ENT/DNT
A
B

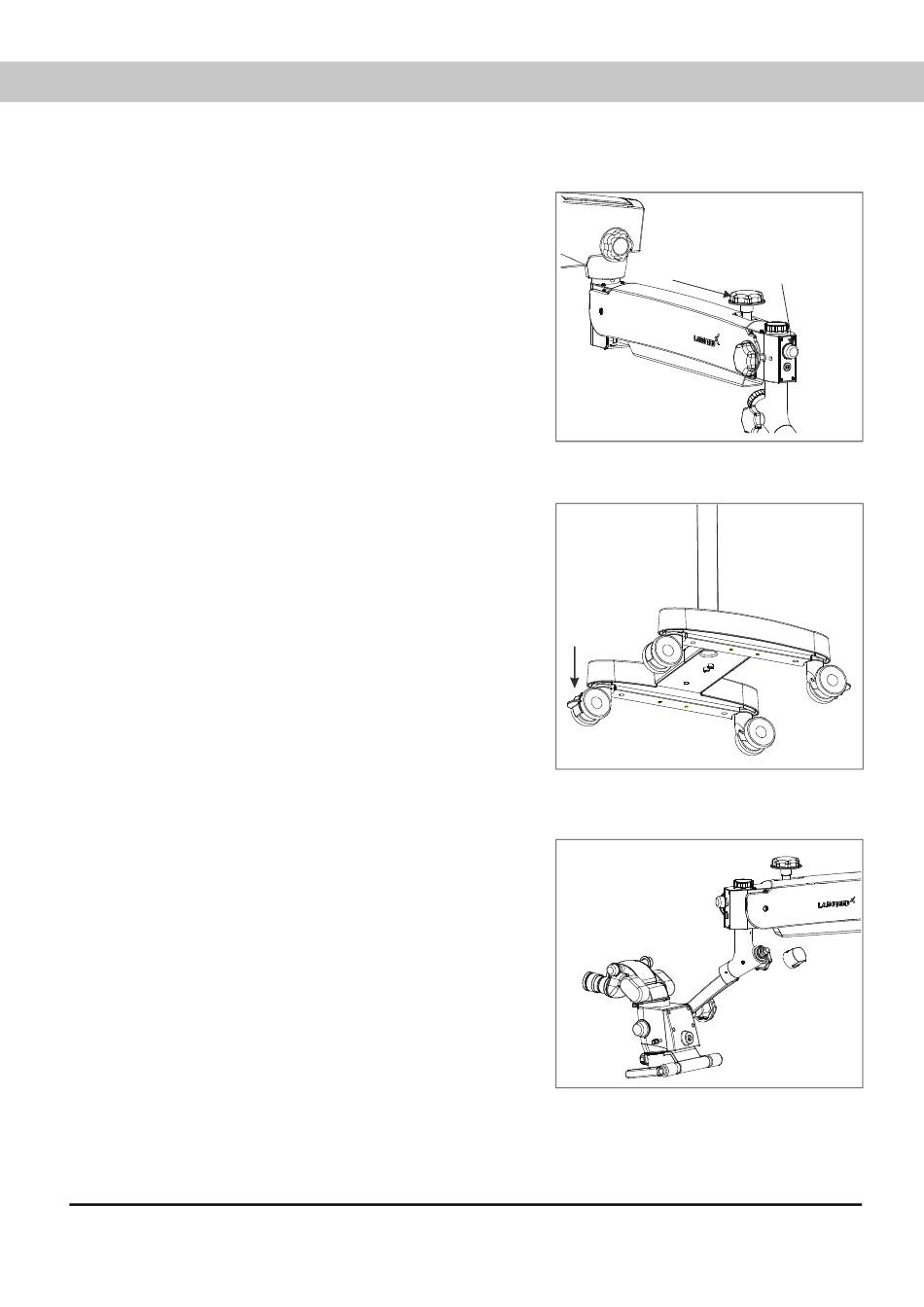

Fig. 10
Fig. 11
Fig. 12
