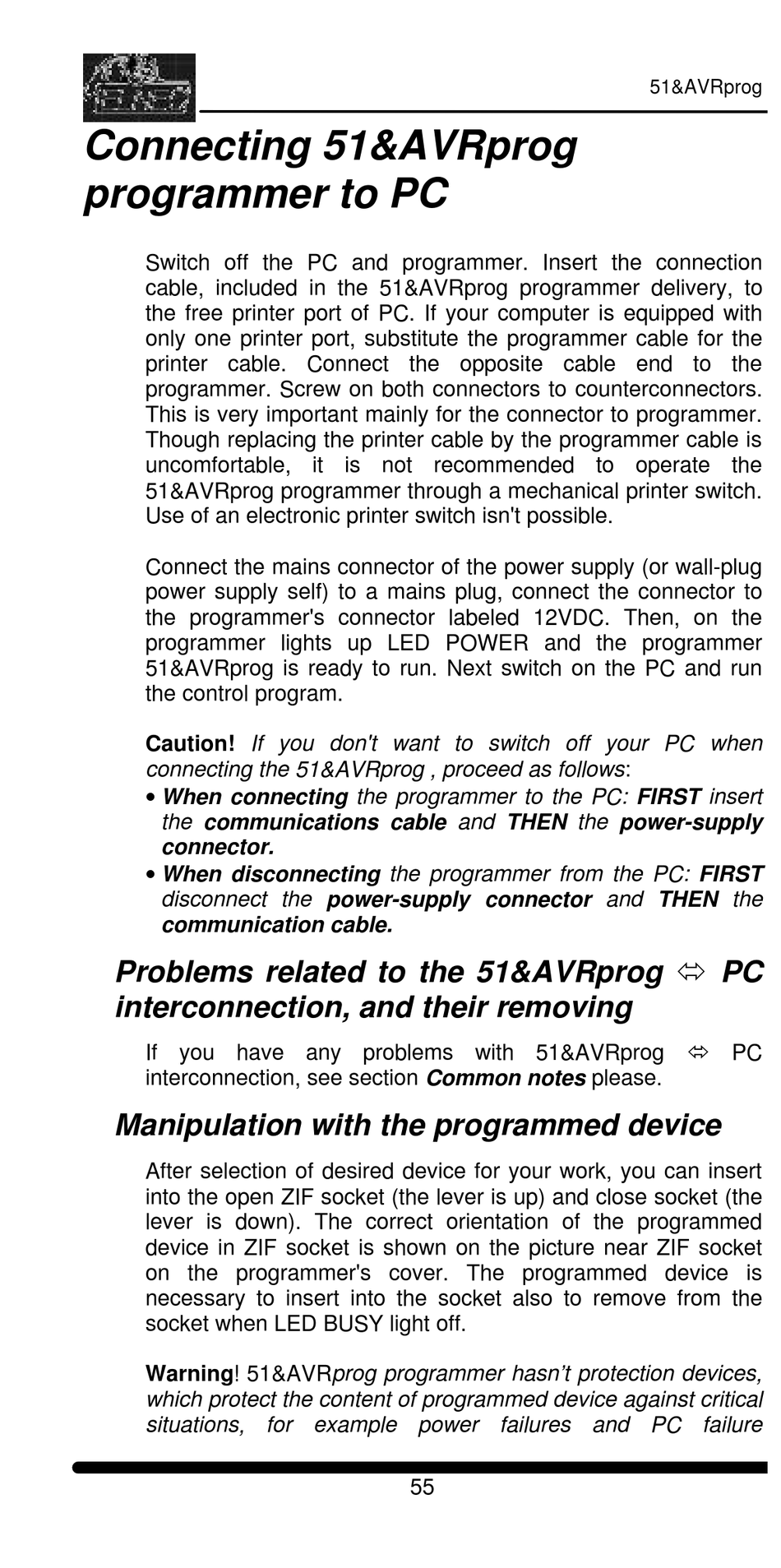

Connecting 51&AVRprog
programmer to PC
Switch off the PC and programmer. Insert the connection
cable, included in the 51&AVRprog programmer delivery, to
the free printer port of PC. If your computer is equipped with
only one printer port, substitute the programmer cable for the
printer cable. Connect the opposite cable end to the
programmer. Screw on both connectors to counterconnectors.
This is very important mainly for the connector to programmer.
Though replacing the printer cable by the programmer cable is
uncomfortable, it is not recommended to operate the
51&AVRprog programmer through a mechanical printer switch.
Use of an electronic printer switch isn't possible.
Connect the mains connector of the power supply (or wall-plug
power supply self) to a mains plug, connect the connector to
the programmer's connector labeled 12VDC. Then, on the
programmer lights up LED POWER and the programmer
51&AVRprog is ready to run. Next switch on the PC and run
the control program.
Caution! If you don't want to switch off your PC when
connecting the 51&AVRprog , proceed as follows:
• When connecting the programmer to the PC: FIRST insert
the communications cable and THEN the power-supply
connector.
• When disconnecting the programmer from the PC: FIRST
disconnect the power-supply connector and THEN the
communication cable.
Problems related to the 51&AVRprog ó PC
interconnection, and their removing
If you have any problems with 51&AVRprog ó PC
interconnection, see section Common notes please.
Manipulation with the programmed device
After selection of desired device for your work, you can insert
into the open ZIF socket (the lever is up) and close socket (the
lever is down). The correct orientation of the programmed
device in ZIF socket is shown on the picture near ZIF socket
on the programmer's cover. The programmed device is
necessary to insert into the socket also to remove from the
socket when LED BUSY light off.
Warning! 51&AVRprog programmer hasn't protection devices,
which protect the content of programmed device against critical
situations, for example power failures and PC failure
