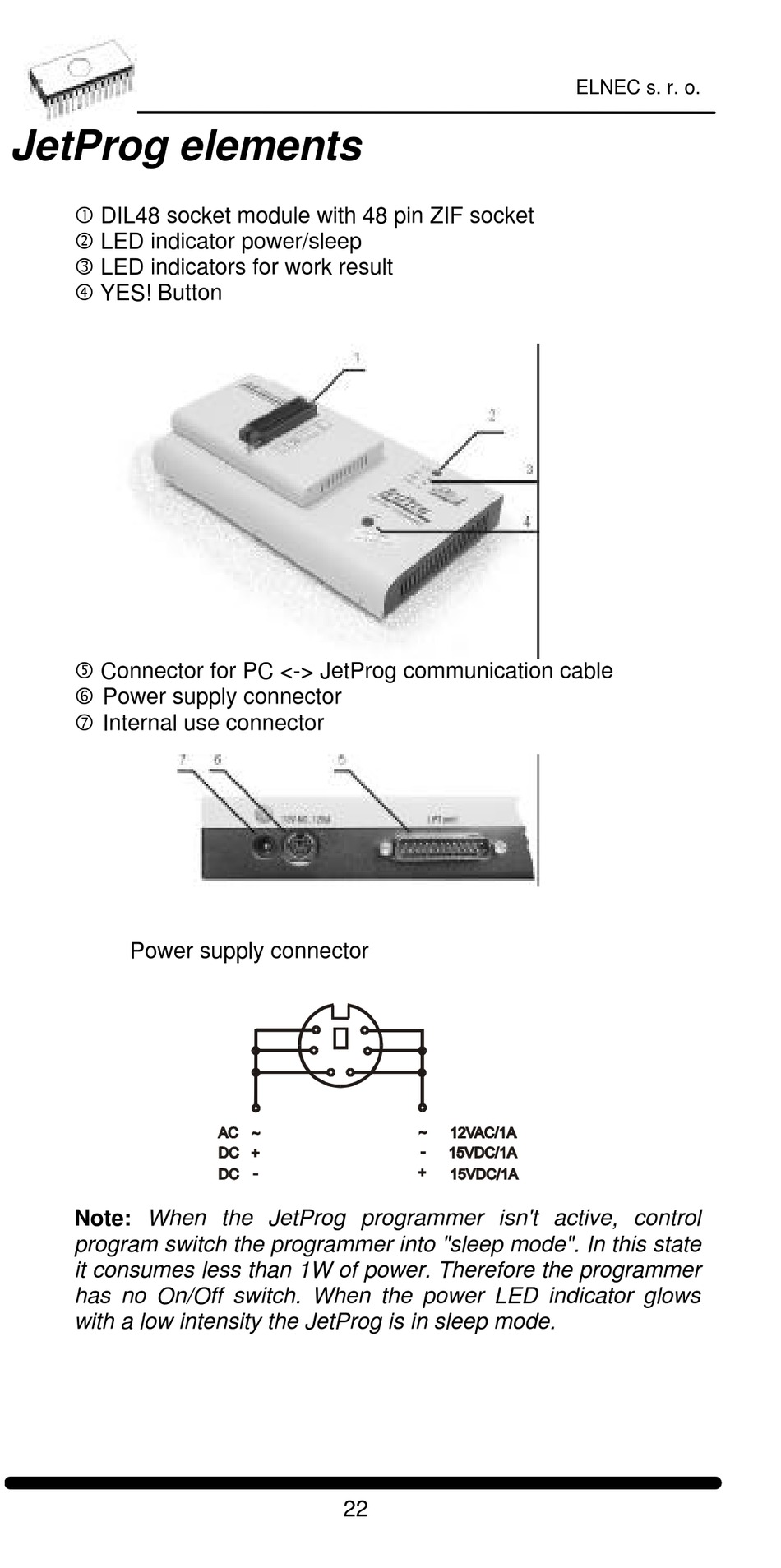

JetProg elements

• DIL48 socket module with 48 pin ZIF socket
‚ LED indicator power/sleep
ƒ LED indicators for work result
„ YES! Button
... Connector for PC <-> JetProg communication cable
† Power supply connector
‡ Internal use connector
Power supply connector
Note: When the JetProg programmer isn't active, control
program switch the programmer into "sleep mode". In this state
it consumes less than 1W of power. Therefore the programmer
has no On/Off switch. When the power LED indicator glows
with a low intensity the JetProg is in sleep mode.
