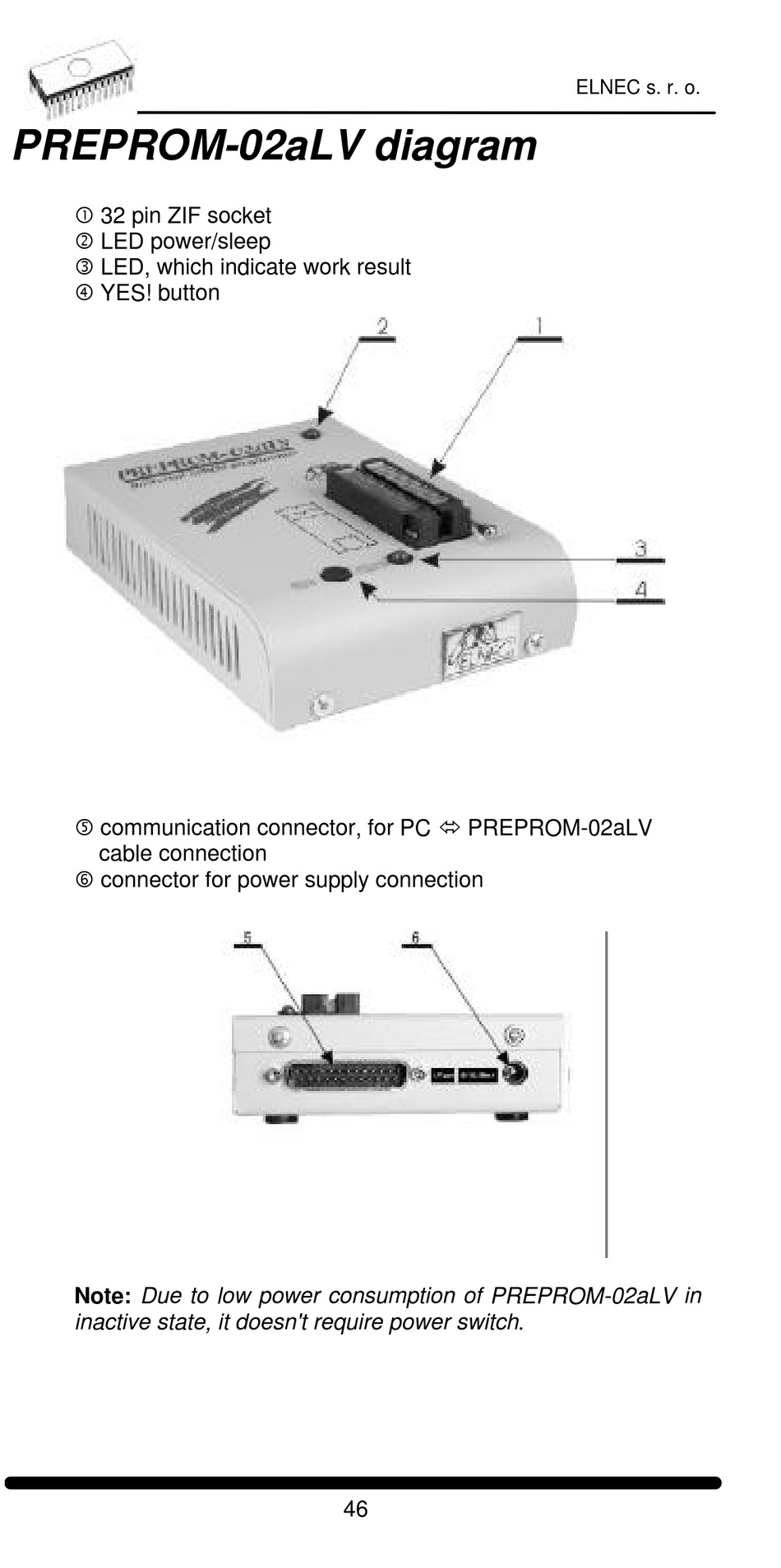

PREPROM-02aLV diagram
• 32 pin ZIF socket
‚ LED power/sleep
ƒ LED, which indicate work result
„ YES! button
... communication connector, for PC ó PREPROM-02aLV
cable connection
† connector for power supply connection
Note: Due to low power consumption of PREPROM-02aLV in
inactive state, it doesn't require power switch.
