LabProg+

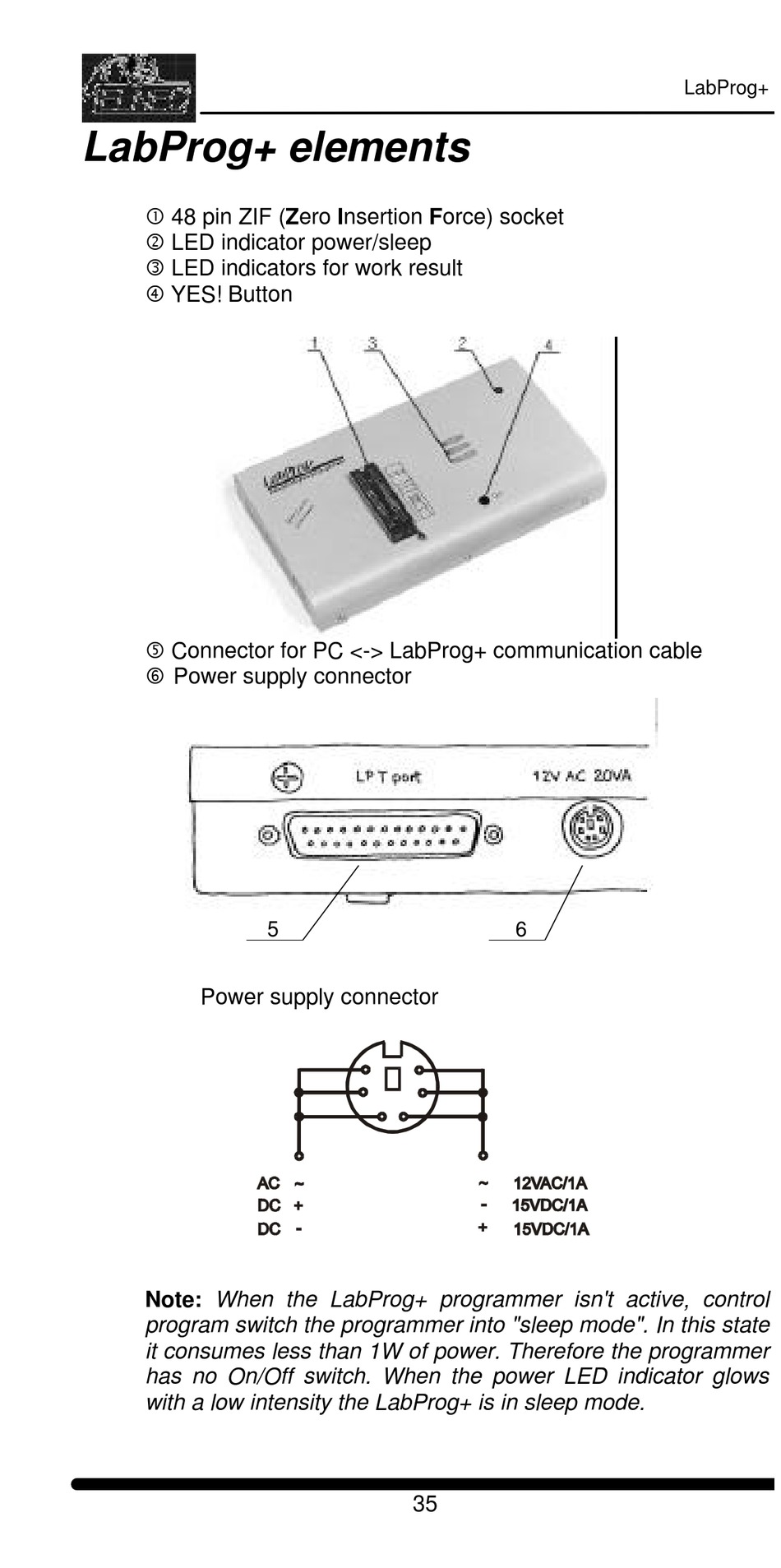

LabProg+ elements

• 48 pin ZIF (Zero Insertion Force) socket
‚ LED indicator power/sleep
ƒ LED indicators for work result
„ YES! Button
... Connector for PC <-> LabProg+ communication cable
† Power supply connector
5 6
Power supply connector
Note: When the LabProg+ programmer isn't active, control
program switch the programmer into "sleep mode". In this state
it consumes less than 1W of power. Therefore the programmer
has no On/Off switch. When the power LED indicator glows
with a low intensity the LabProg+ is in sleep mode.
35
