Specifications

11.4 Dimensions

11.4.1 Front View

All dimensions are in mm.
Power
X201

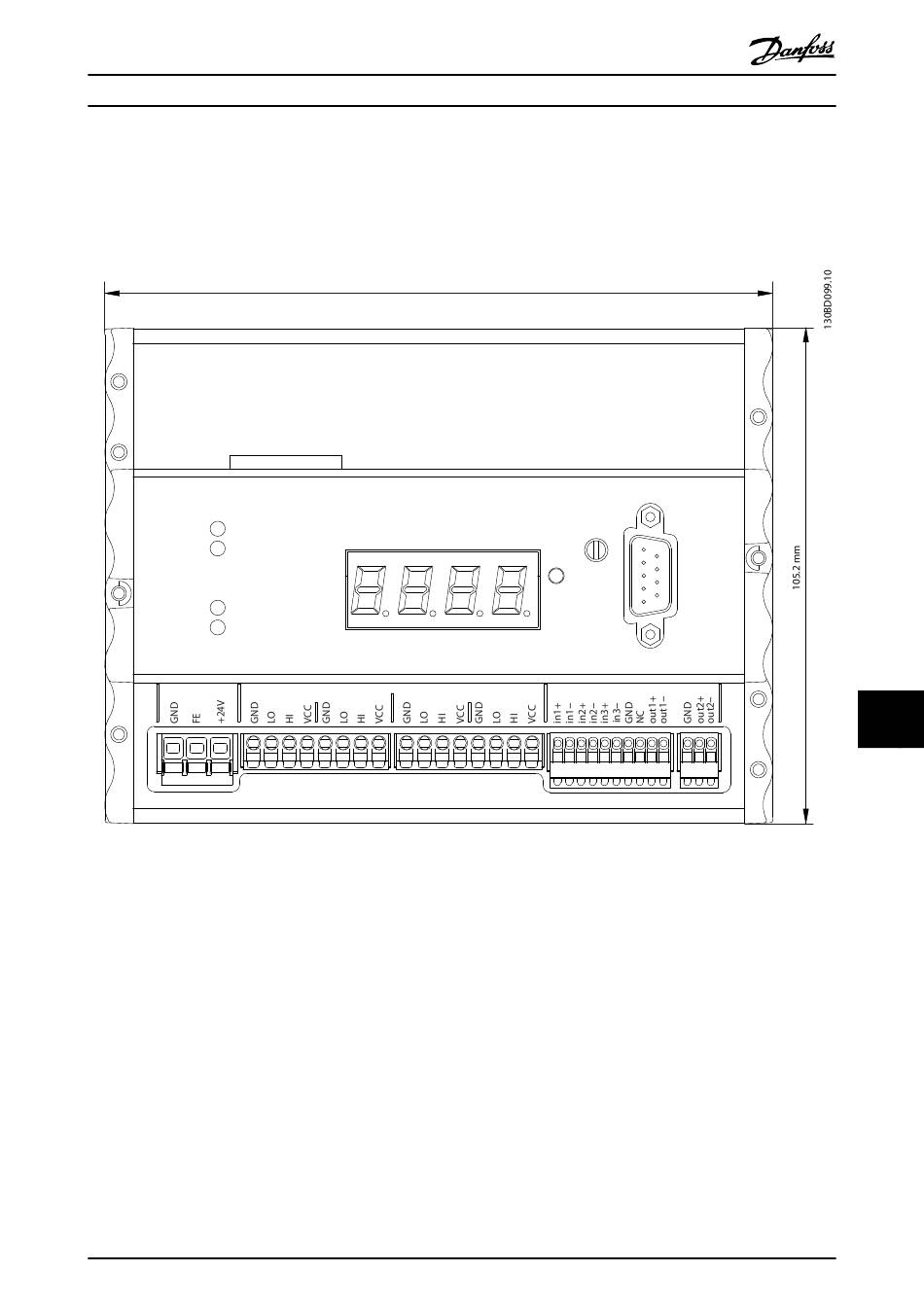

Illustration 11.2 Front View
®
VLT
ISD Encoder Box Operating Instructions
142 mm
CAN I
OUT
IN
IN
X501
®
MG75F102 - VLT
is a registered Danfoss trademark
CAN II
RS 422
OUT
X502
X601
X602
31
11
11
