HFX Product Family
10.7

LED OPERATION

LED A (left-most) - Green power LED
O ==> Not powered up
•
Solid on ==> Powered up and Application
•
not running
Fast ash (100ms on, 100ms o ) ==>
•
Application running
LED B (middle) - Red MIL
Application running
•
Flashing (200ms on, 200ms o ) ==> critical fault is
•
active
Solid on ==> standard fault is active
•
O ==> no fault
•
Application not running
•
Fast Flashing (200ms on, 200ms o ) ==> critical fault is active
•
Slow pulse (100ms on, 1500ms o ) ==> historic fault is set - must be
•
manually cleared
Solid on ==> standard fault is active
•
O ==> no fault
•
LED C (right - most) - CAN TX is ok LED, blinks periodically if there
are CAN messages being transmitted and there are no errors.
Miscellaneous states
LED A O and MIL light solid on ==> No rmware
•
present
MIL light will pulse brie y for a bulb check on every
•
powerup
MIL light will retain its state for 3 seconds after an
•
active fault goes ina c tive
11.0

INSTALLING THE CONTROLLER

11.1

PRODUCT DIMENSIONS

Ideally the controller should be mounted on a vertical at
surface with connector facing down. Use four standard
threaded fasteners to secure the controller to the surface
(either 6 mm or ¼" diameter are acceptable).

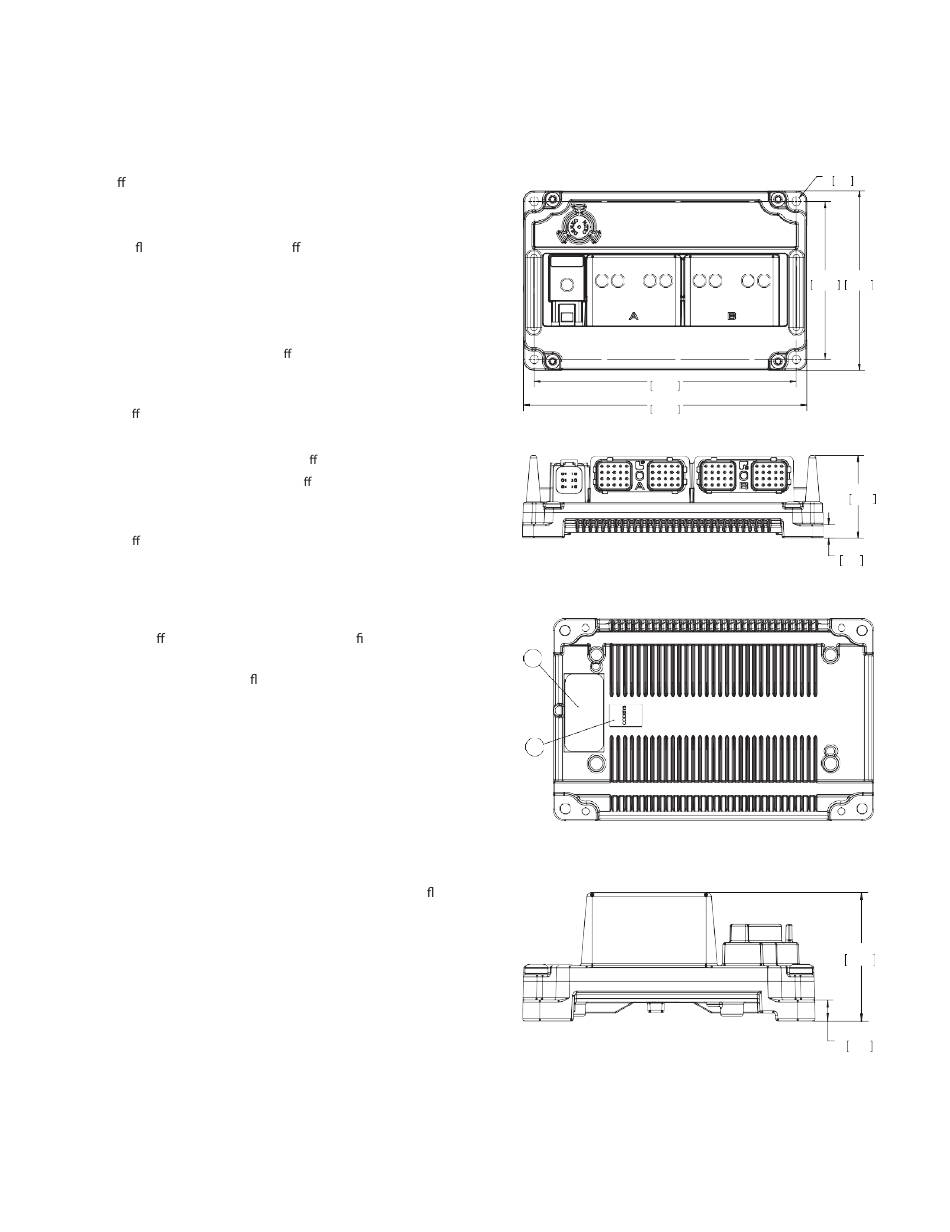

HFX32m & HFX48m Dimensional Data
3
12
HFX Product Family Installation and Operation Manual for Matlab® Support Package January 2017
4X .256
4.654
118.22
7.743
196.67
8.371
212.61
4X .379
6.50
5.282
134.17
2X 2.305
58.55
9.61
2.305
58.55
