Case controller, type EKC 223 and EKC 224
Installation steps
• Place the wired controller in the slot and ensure rubber sealing is resting properly on the mounting surface.
• Slide the mounting clips along the rails of the rear plastic from the rear side of the panel.
• Slide the clips towards mounting surface until controller is firmly fixed.
• To remove the controller, unlatch the snapping tab and pull the clips backwards.
Dimensions

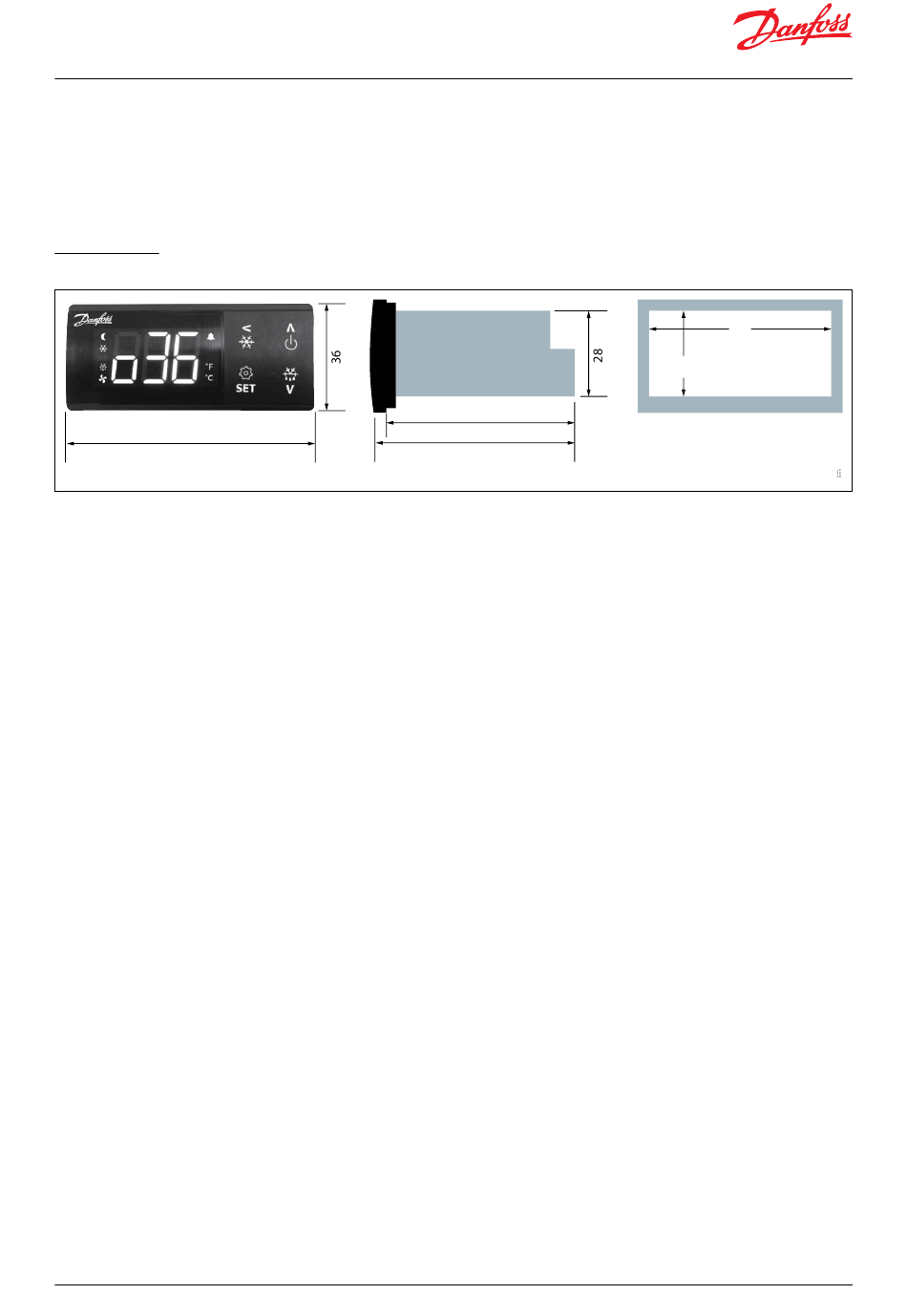

Figure 24: Dimensions (mm)
83
© Danfoss | Climate Solutions | 2023.05
61.2
66
Rear mounting (lock with clips)
71
29
Drilling template
BC432222569027en-000201 | 35
